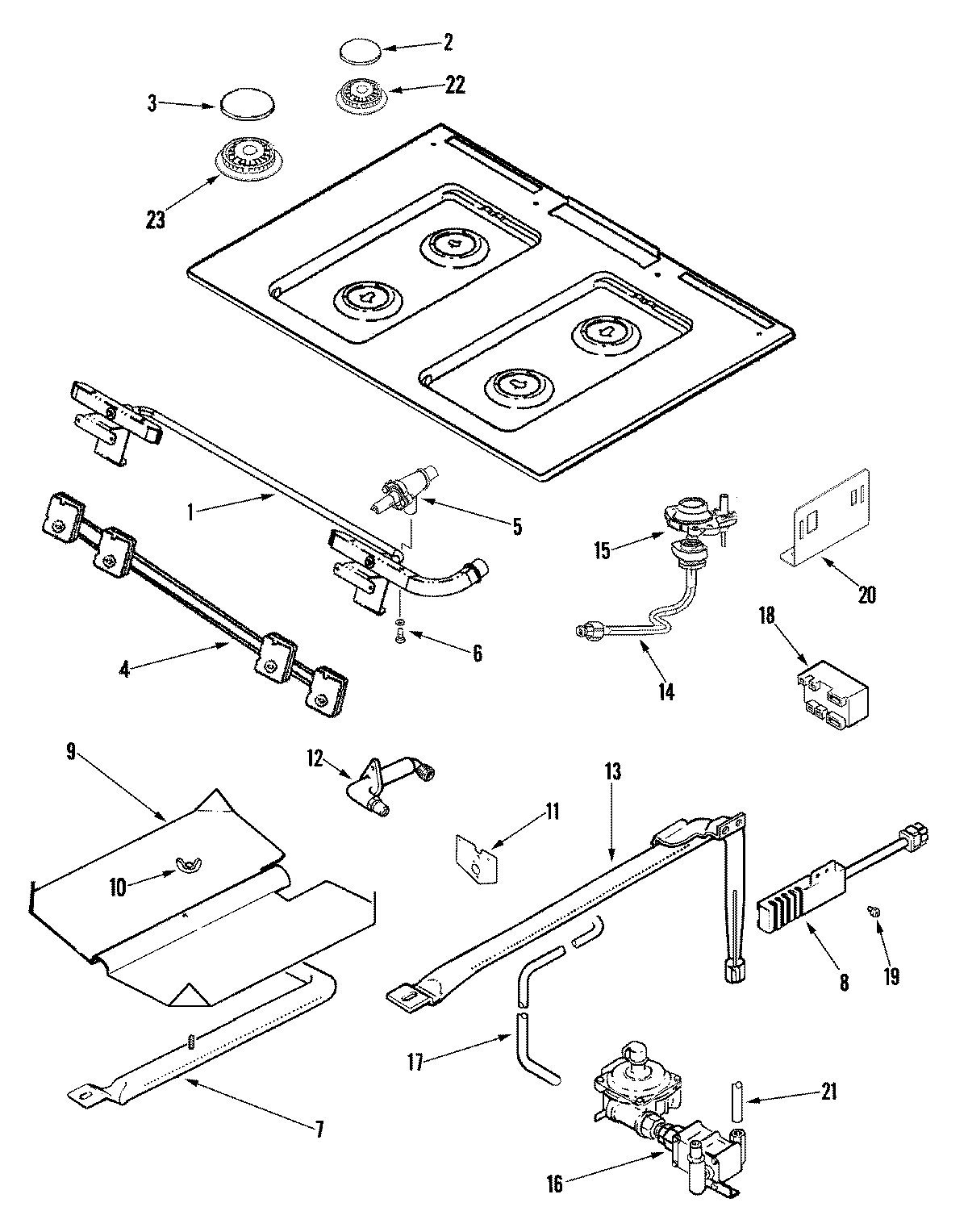

PGS3759BDS 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74010965
2	WP3191898 Whirlpool Surface Burner Cap Black
3	WP74007925 Whirlpool Burner Cap
4	MAY 74010915
5	MAY 74009451
5	MAY 74009452
6	MAY 74009416
7	MAY 74004076
8	74007498 Whirlpool Range Flat Igniter
9	MAY 3601F217-47
10	NUT, WING
11	MAY 74004307
12	MAY 74010901
13	MAY 3807F446-45
13	MAY 74003960
14	MAY 74010910
14	MAY 74010911
14	MAY 74010912
14	MAY 74010913
15	HOLDER, ORIFICE (9.2K)
15	HOLDER, ORIFICE (12K)
15	WPW10407680 Whirlpool Orifice Holder
16	MAY W10130932
17	MAY 74004408
18	Module, Spark (4+0)
18	MODULE, SPARK
18	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
19	SCREW (10-24X5/16-NI)
20	SUPPORT, SPARK MODULE
20	BRACKET
21	MAY 74010944
22	WPW10406243 Whirlpool Burner Head Auxiliary 6K
23	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
