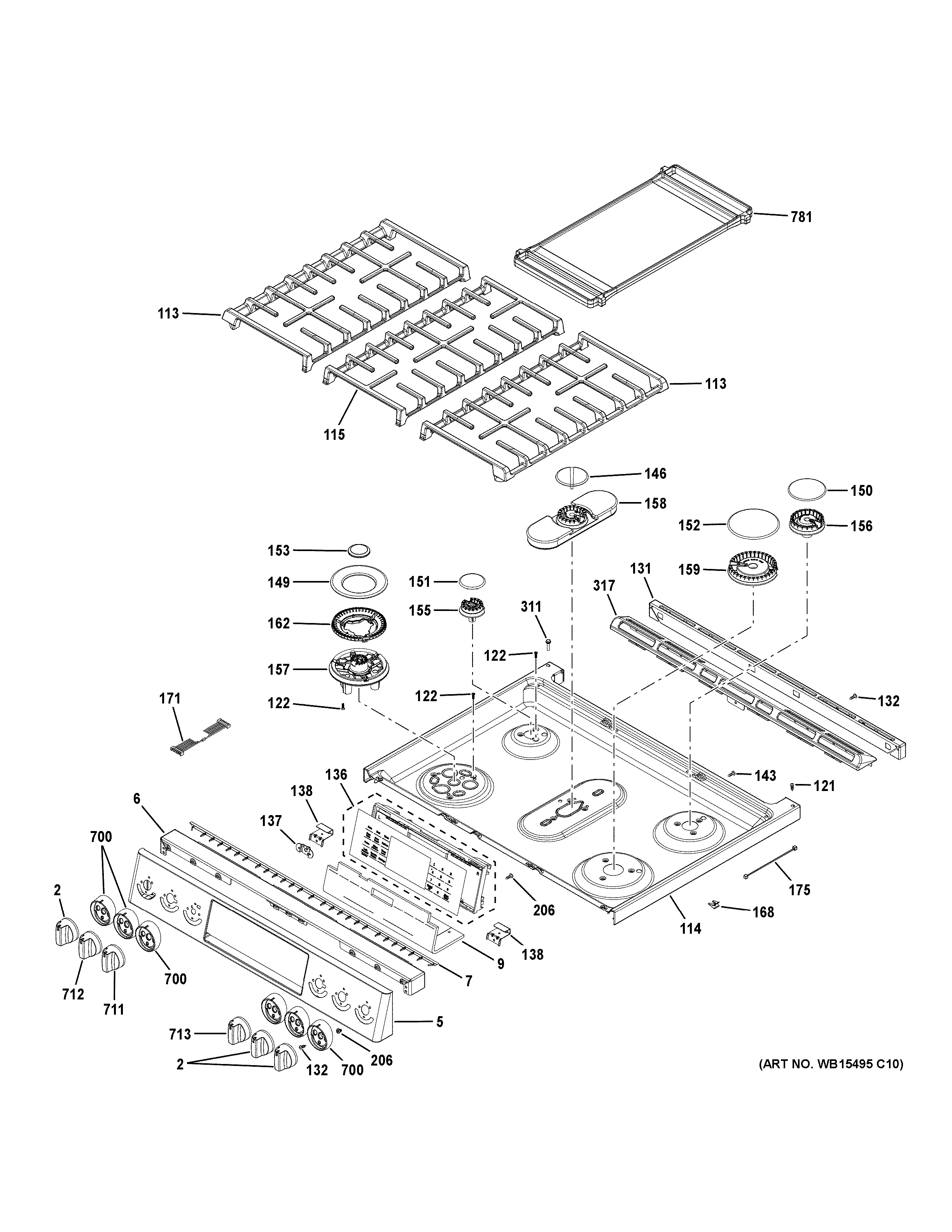

PGS930BEL1TS CONTROL PANEL & COOKTOPadmin2025-04-26T11:27:48+00:00PGS930BEL1TS CONTROL PANEL & COOKTOP ProductsPositionProduct2WB03X28960 GE Oven Knob Assembly5WB36X28205 GE Manifold Panel6WB36X28222 GE Oven Rear Manifold Panel7WB35X28752 GE Oven Gasket Panel Assembly9WB35X28981 GE Oven Control Housing Insulation113WB31X28755 GE Oven Grate Assembly114WB62X28229 GE Range Top115WB31X28255 GE Oven Central Grate121WB1K5119 GE Oven Screw122WB01X24735 GE Oven CKT Screw131WB07X28825 GE Oven Trim Kit132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel136WB56X28190 GE Oven Glass and Touch Board Assembly137WB34X28910 GE Switch Bracket138WB34X28237 GE Bracket143SCREW MTG END CAP146WB29X24971 GE Oven Center Burner Cap Assembly149WB29X28253 GE Oven Surface Burner Cap150WB29K10023 GE Oven Burner Cap Assembly151WB16X28654 GE Oven Burner Cap Cover152CAP BURNER ASM (15K)153WB16X28252 GE Oven Burner Cap Inner155WB16X24721 GE Oven Range Small Cooktop Burner V2156WB16X24724 GE Oven Medium Burner157WB16X28656 GE Oven Surface Burner Base158WB16X28965 GE Oven Assembly Burner and Endcap Dual159WB16X24722 GE Oven Gas Range XL Surface Burner162HEAD BURNER168WB02X24976 GE Oven Igniter Clip V2171WB18X28905 GE Oven Harness Interface175HARNESS GROUND206WB01K10091 GE Oven Screw311BUMPER317WB07X28819 GE Oven Vent Trim700SKIRT711KNOB ASM712KNOB ASM713KNOB ASM781WB31X24998 GE Oven Reversible Grille
