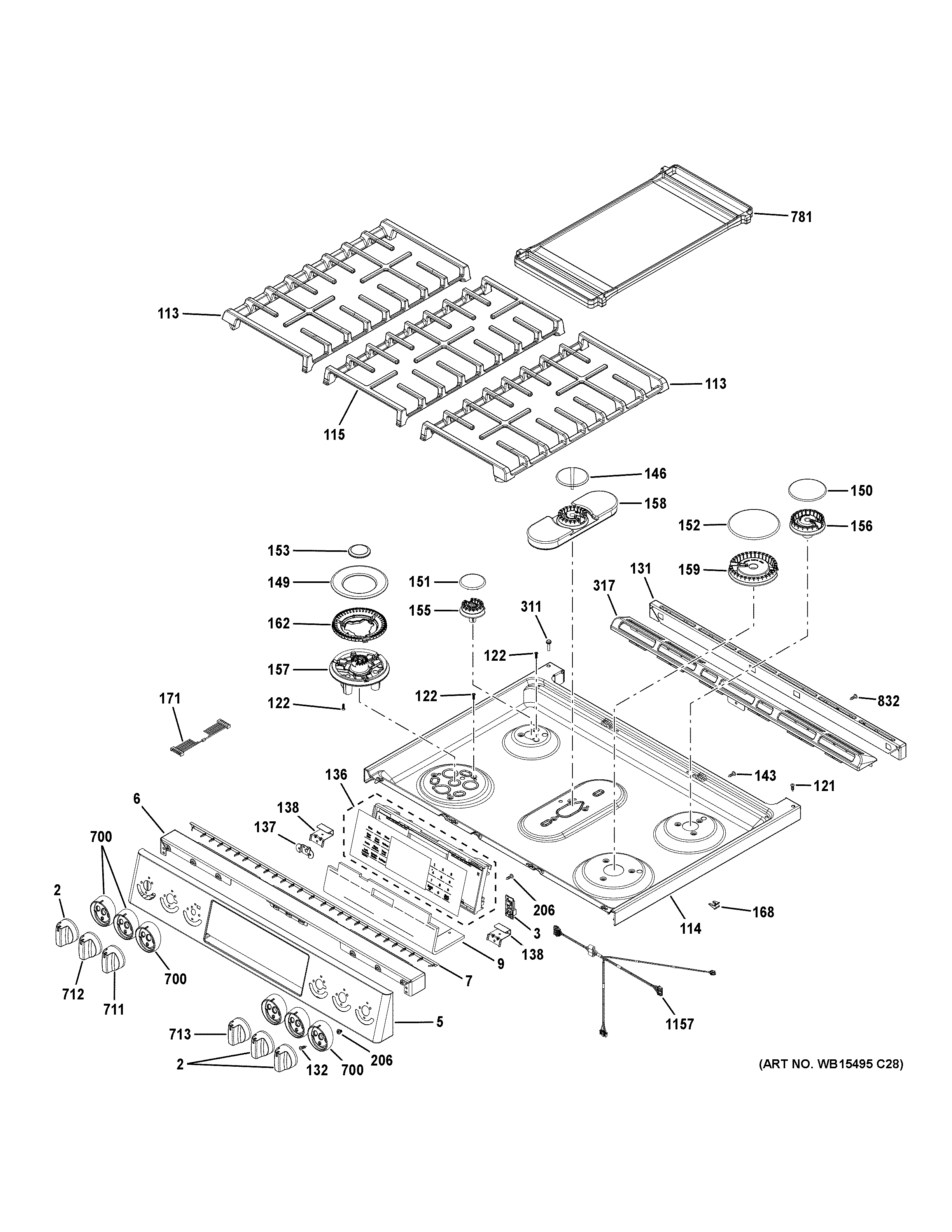

PGS930BP4TS CONTROL PANEL & COOKTOP

PGS930BP4TS CONTROL PANEL & COOKTOP

Written by

in

PGS930BP4TS CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB03X28960 GE Oven Knob Assembly
3WB27X46666 GE Oven Wi-Fi/Bluetooth Board with Instructions
5BLACK STAINLESS PANEL MANIFOLD
6WB36X28222 GE Oven Rear Manifold Panel
7WB35X28752 GE Oven Gasket Panel Assembly
9WB35X28981 GE Oven Control Housing Insulation
113WB31X28755 GE Oven Grate Assembly
114WB62X28229 GE Range Top
115WB31X28255 GE Oven Central Grate
121WB1K5119 GE Oven Screw
122WB01X24735 GE Oven CKT Screw
131WB07X28825 GE Oven Trim Kit
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
136GLASS & TOUCH BOARD ASM
137WB34X28910 GE Switch Bracket
138WB34X28237 GE Bracket
143SCREW MTG END CAP
146WB29X24971 GE Oven Center Burner Cap Assembly
149WB29X28253 GE Oven Surface Burner Cap
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152CAP BURNER ASM (15K)
153WB16X28252 GE Oven Burner Cap Inner
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156WB16X24724 GE Oven Medium Burner
157WB16X28656 GE Oven Surface Burner Base
158WB16X28965 GE Oven Assembly Burner and Endcap Dual
159WB16X24722 GE Oven Gas Range XL Surface Burner
162HEAD BURNER
168WB02X24976 GE Oven Igniter Clip V2
171HARNESS INTERFACE
206WB01K10091 GE Oven Screw
311BUMPER
317WB07X28819 GE Oven Vent Trim
700SKIRT
711KNOB ASM
712KNOB ASM
713KNOB ASM
781WB31X24998 GE Oven Reversible Grille
832WR01X10065 GE Screw
1157WB18X41891 GE Wire Jumper Harness
