PGS930FEL4DS BODY PARTS

PGS930FEL4DS BODY PARTS

Written by

in

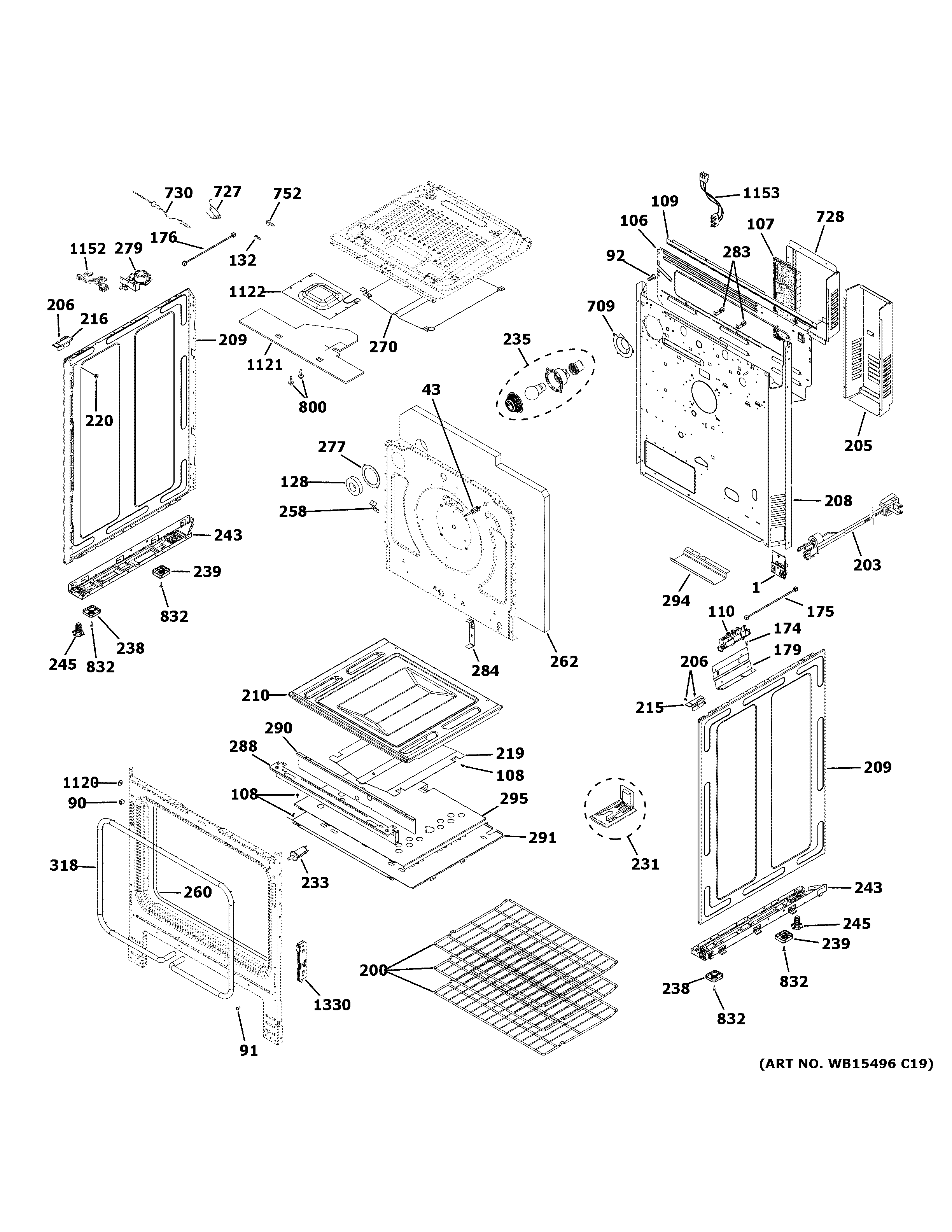

PGS930FEL4DS BODY PARTS

Products

PositionProduct
1WB28X29254 GE Range Natural Gas High Altitude Kit
1LABEL WIRE DIAGRAM
1WB28X39129 GE LP Conversion Kit
1WB28X29255 GE Range LP High Altitude Kit
43WB24X25557 GE Oven Sensor Assembly
90WB02X28738 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
106WB34X28955 GE Back Cover
107WB27X29497 GE Oven Control Machine Board with Frame
108WB1K5062 GE Oven Screw
109WB34X28912 GE Oven Backguard Component
110WB13X24741 GE Oven Spark Module
128LAMP INSULATION
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
174WB01X31119 GE Screw 8-18
175WB18X27594 GE Ground Harness
176WB18X25597 GE Ground Harness
179WB34X36828 GE Spark Module Bracket
200WB48X21508 GE Oven Rack
203WB18X28855 GE Oven Power Cord
205WB34K10097 GE Oven Motor Cover
206WB01K10091 GE Oven Screw
208WB63X28974 GE Back
209WB56X28847 GE Oven Side Panel
210WB35X37968 GE Heat Shield
215FRONT SUPPORT RH
216FRONT SUPPORT LH
219OVEN DEFLECTOR
220GEN WB02K0008
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20448 GE Oven Spacer Base
239WB16X20449 GE Oven Base Spacer
243WB63X20215 GE Oven Support Base
243WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
258WB39K10020 GE Oven Right Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
262WB35X28786 GE Oven Back Insulation
270WB34X28689 GE Deflector
277WB32K10044 GE Oven Light Gasket
279WB10X28793 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
294GEN WB63K10040
295WB44X10051 GE Oven Convection Element
318WB32X29539 GE Oven Gasket Assembly
709WB08K10018 GE Range Light Cover
727WB34K10121 GE Oven Probe Receptacle & Harness
728CONTROL COVER
730WB20T10024 GE Oven Thermistor Probe
752WZ4X345D GE Screw Package 12 C92
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
832WR01X10065 GE Screw
1120SPACER SIDE
1121WB35X28986 GE Latch Insulation
1122GEN WB34X21710
1152WB18X31606 GE Latch Harness
1153WB18X28690 GE Oven Direct Connect Harness
1330WB10X28563 GE Oven Receiver Hinge
