PGS930FEL4DS DOOR & DRAWER PARTS

PGS930FEL4DS DOOR & DRAWER PARTS

Written by

in

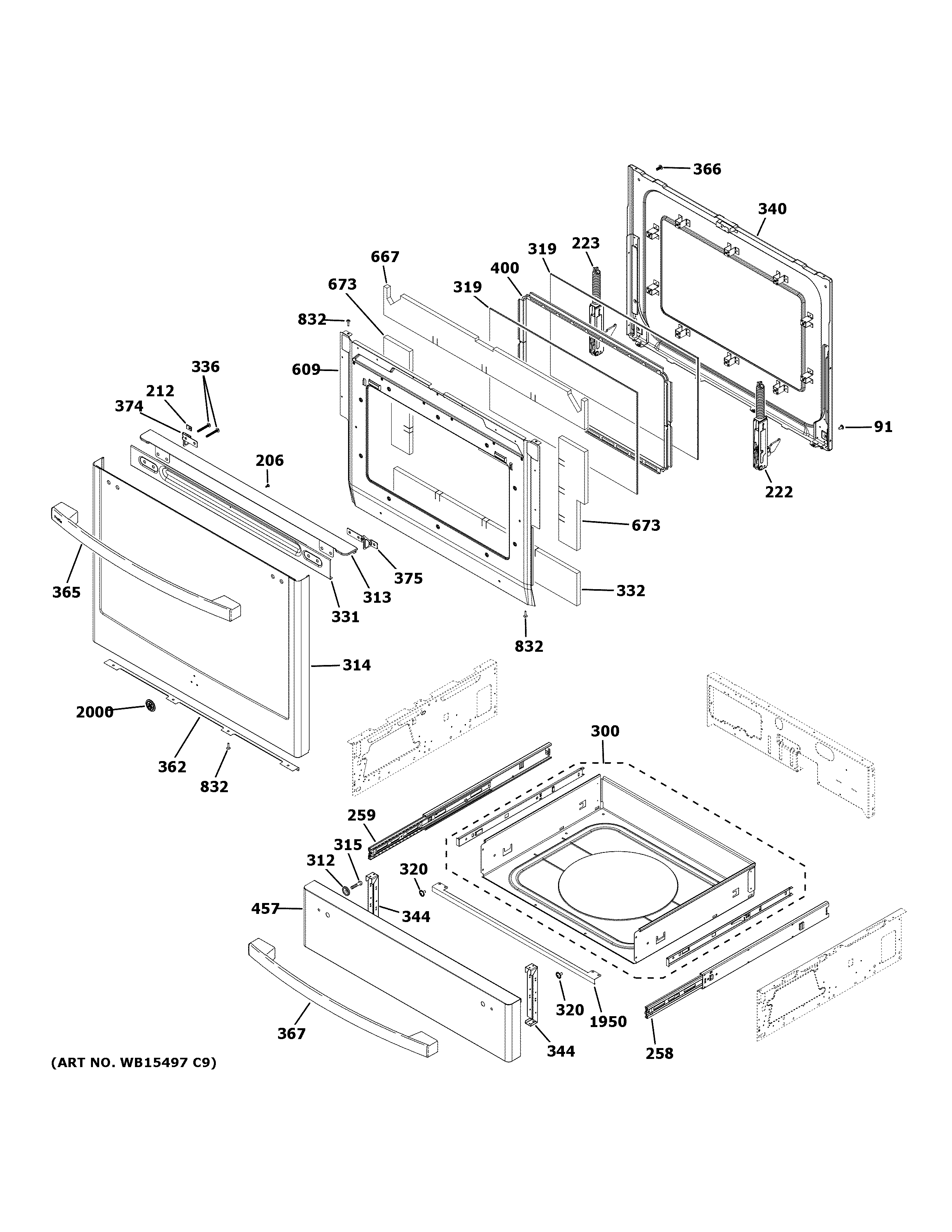

PGS930FEL4DS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
206WB01K10091 GE Oven Screw
212WB1K2 GE Oven Speednut
222WB10X26766 GE Oven Door Hinge
223WB10X24776 GE Oven Door Hinge
258WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
312WB1X119D GE Oven Range Washer
313WB34X28682 GE Oven Vent Trim Cover
314WB56X30823 GE Oven Glass & Panel Door Assembly
315SCREW M4X8
319WB57K10174 GE Range Crystal Window Door
320WB01K10023 GE Oven Grommet Handle
331WB56X28193 GE Oven Glass Door Backer
332WB35K10221 GE Range Insulation
336WB02X32442 GE Screw 10-24
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
362WB07X28885 GE Range Barrier Door
365WB15X35051 GE Black Stainless Steel Handle
366GEN WB01K0078
367WB15X35052 GE Black Stainless Steel Handle
374WB02X24743 GE Handle Bracket
375WB02X24744 GE Handle Bracket
400WB34X28742 GE Window Frame Assembly
457WB56X30815 GE Drawer Panel
609WB34X24749 GE Door Guard
667WB35X20077 GE Door Insulation
673WB35K10222 GE Oven Insulation
832WR01X10065 GE Screw
1950WB01K10072 GE Oven Front Bottom Trim
2000WB02X29637 GE Oven Badge Assembly
