PGS960BEL4TS BODY PARTS

PGS960BEL4TS BODY PARTS

Written by

in

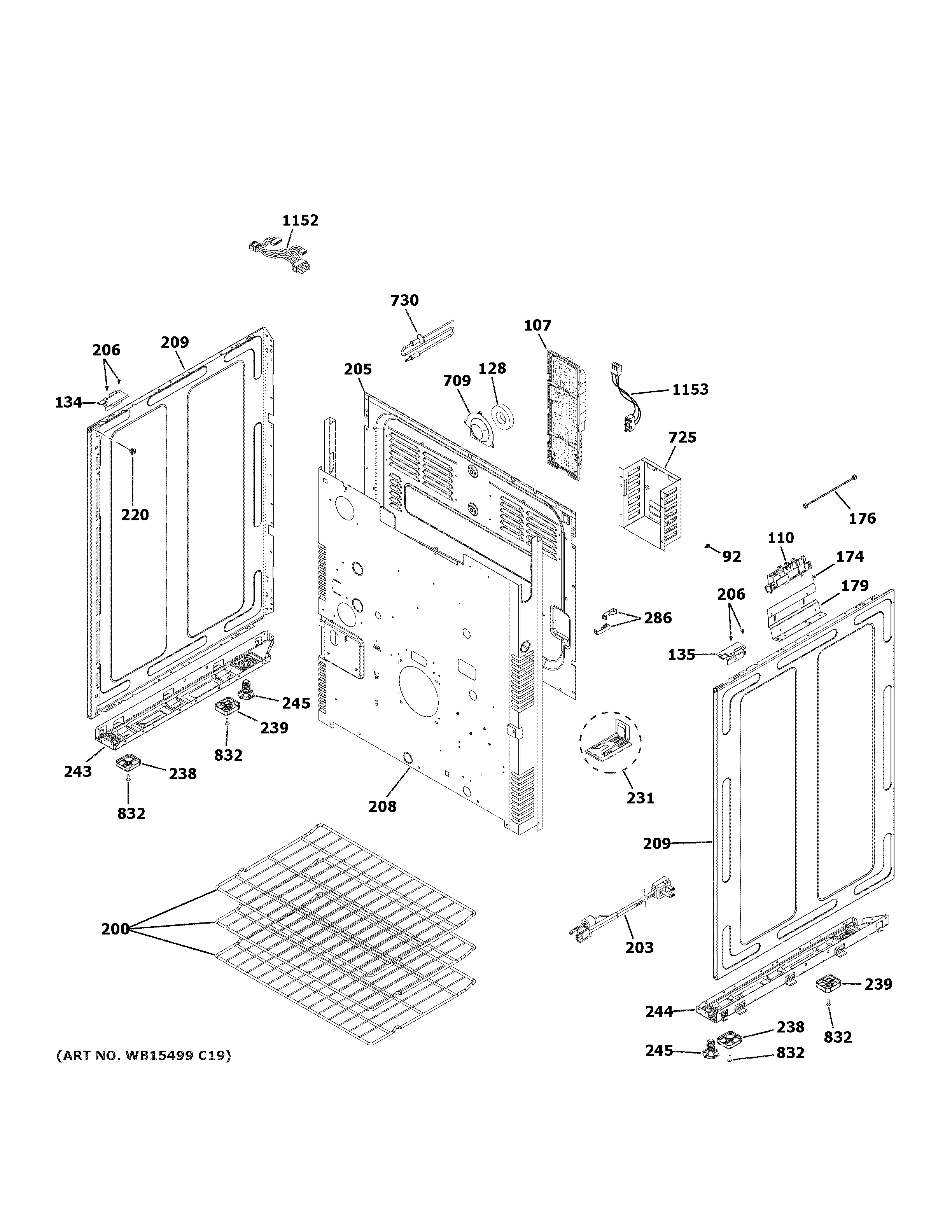

PGS960BEL4TS BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
107WB27X29499 GE Oven Control Board with Frame
110WB13X24741 GE Oven Spark Module
128LAMP INSULATION
134FRONT SUPPORT LH
135FRONT SUPPORT RH
174WB01X31119 GE Screw 8-18
176WB18X25597 GE Ground Harness
179WB34X36828 GE Spark Module Bracket
200WB48X21508 GE Oven Rack
203WB18X28855 GE Oven Power Cord
205COVER BACK
206WB01K10091 GE Oven Screw
208WB63X28988 GE Range Back Assembly
209WB56X28847 GE Oven Side Panel
220GEN WB02K0008
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
238WB16X20448 GE Oven Spacer Base
239WB16X20449 GE Oven Base Spacer
243WB63X25481 GE Oven Support Base Right
244WB63X25480 GE Oven Support Base Left
245WB02K10182 GE Oven Leveling Leg
286WB02X21679 GE Oven Wire Clip
709WB08K10018 GE Range Light Cover
725WB34X25587 GE Motor Cover
730WB20T10024 GE Oven Thermistor Probe
832WR01X10065 GE Screw
1152WB18X31621 GE Harness Latch
1153WB18X28691 GE Oven Direct Connect Wiring Harness
