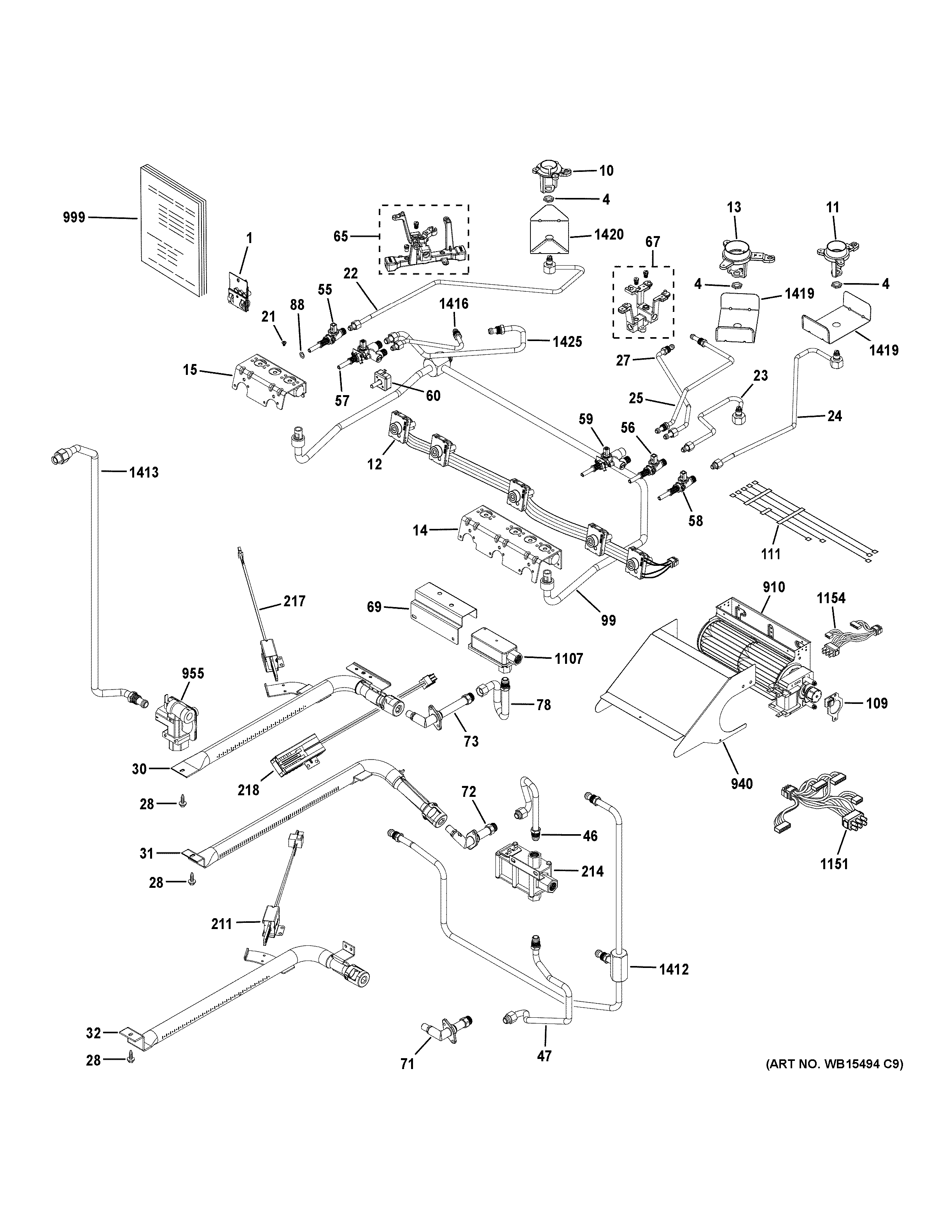

PGS960EEL3ES GAS & BURNER PARTS

PGS960EEL3ES GAS & BURNER PARTS

Written by

in

PGS960EEL3ES GAS & BURNER PARTS

Products

PositionProduct
1WB28X39126 GE LP Conversion Kit
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X29255 GE Range LP High Altitude Kit
1LABEL WIRE DIAGRAM
4WB01K10037 GE Oven Economic Nut
10WB02X24728 GE Range Small Injector
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12HARNESS SWITCHES
13WB02X24725 GE Oven Inlet XLV2
14MANIFOLD PIPE ASM
15WB28X28199 GE Manifold Pipe Assembly
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB28X28143 GE Oven Left Rear Orifice Holder
23WB28X28145 GE Oven Right Front Orifice Holder
24WB28X28149 GE Oven Right Rear Orifice Holder
25WB28X28160 GE Oven Dual Simmer Tube Valve
27WB28X28154 GE Oven Dual Valve Main Tube
28WB1X1293 GE Oven Screw
30WB16X28249 GE Gas Range Bake Burner
31WB16X28251 GE Range Broil Burner
32WB16X28670 GE Gas Range Bake Burner
46WB28X28164 GE Tube Safety Valve
47WB28X28152 GE Oven Lower Bake Supply Tube
55WB21X25979 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X28821 GE Range Burner Valve 3,170
58VALVE BURNER 270
59WB21X25002 GE Oven Burner Valve 270
60WB24X28859 GE Oven Rotary Switch
65WB16X28867 GE Stove Burner Injector Assembly
67WB16X28864 GE Oven Dual Oval Burner Injector Assembly
69WB02K10325 GE Valve Support Single
71WB28X20451 GE Oven 90-Degree Elbow Assembly
72WB28X28696 GE Elbow 90 Assembly
73WB28X28695 GE Oven 90-Degree Elbow Assembly
78WB28X28163 GE Upper Bake Supply Tube
88WB02X28680 GE Range Valve Cover
99WB28X28156 GE Manifold Supply Tube
109WB27X28659 GE Oven Sensor Board
111WB18X28726 GE Oven Electrode and Harness High Voltage
211WB13X25633 GE Oven Igniter Glowbar
214SAFETY VALVE DUAL
217WB28X28781 GE Oven Igniter Glow Bar
218WB28X28780 GE Oven Glowbar Igniter
910WB26X32571 GE Range Tangential Blower
940WB34X28735 GE Oven Fan Support
955WB19K10077 GE Oven Pressure Regulator
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM PROPANE HA INSTRUCTIONS
999PM NG HA INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999PM OWNERS MANUAL
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
1107WB21X28836 GE Safety Valve Assembly Single
1151WB18X28897 GE Oven Main Harness
1154WB18X31604 GE Oven Blower Harness
1412WB28X28159 GE Oven Supply Tube
1413WB28X28150 GE Oven Burner Tube Supply Box
1416WB28X28162 GE Oven Dual Simmer Tube Valve
1419WB02X28653 GE Air Deviator
1420WB02X28652 GE Air Deviator
1425WB28X28153 GE Oven Main Dual Valve Tube
