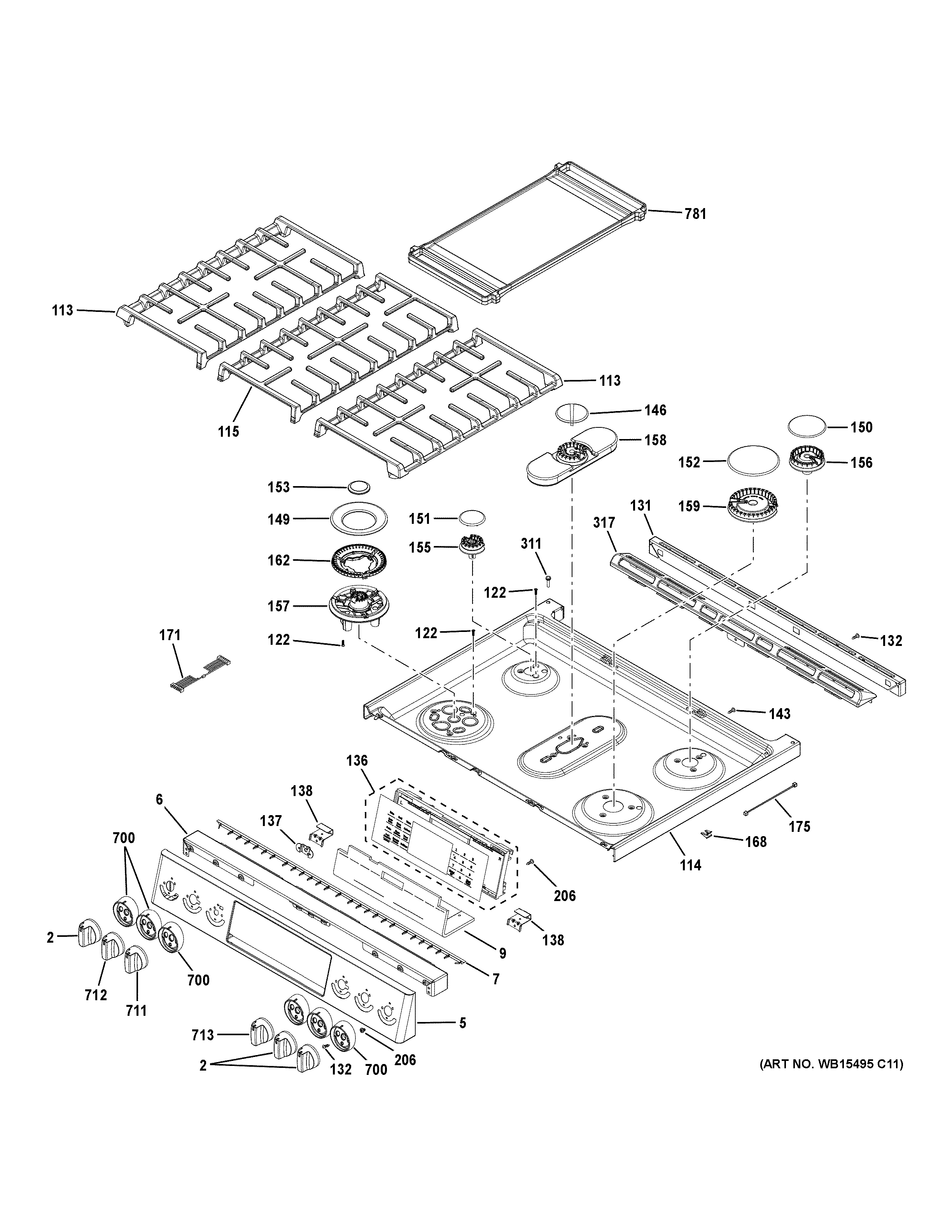

PGS960FEL1DS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X28960 GE Oven Knob Assembly
5	WB36X30813 GE Manifold Panel
6	WB36X28222 GE Oven Rear Manifold Panel
7	WB35X28752 GE Oven Gasket Panel Assembly
9	WB35X28981 GE Oven Control Housing Insulation
113	WB31X28755 GE Oven Grate Assembly
114	WB62X28229 GE Range Top
115	WB31X28255 GE Oven Central Grate
122	WB01X24735 GE Oven CKT Screw
131	WB07X28825 GE Oven Trim Kit
132	WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
136	WB56X28192 GE Oven Glass and Touch Board Assembly
137	WB34X28910 GE Switch Bracket
138	WB34X28237 GE Bracket
143	SCREW MTG END CAP
146	WB29X24971 GE Oven Center Burner Cap Assembly
149	WB29X28253 GE Oven Surface Burner Cap
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
152	CAP BURNER ASM (15K)
153	WB16X28252 GE Oven Burner Cap Inner
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	WB16X28656 GE Oven Surface Burner Base
158	WB16X28965 GE Oven Assembly Burner and Endcap Dual
159	WB16X24722 GE Oven Gas Range XL Surface Burner
162	HEAD BURNER
168	WB02X24976 GE Oven Igniter Clip V2
171	WB18X28905 GE Oven Harness Interface
175	WB18X25597 GE Ground Harness
206	WB01K10091 GE Oven Screw
311	BUMPER
317	WB07X28819 GE Oven Vent Trim
700	SKIRT
711	KNOB ASM
712	KNOB ASM
713	KNOB ASM
781	WB31X24998 GE Oven Reversible Grille
