PGS960FEL1DS UPPER OVEN

PGS960FEL1DS UPPER OVEN

Written by

in

PGS960FEL1DS UPPER OVEN

Products

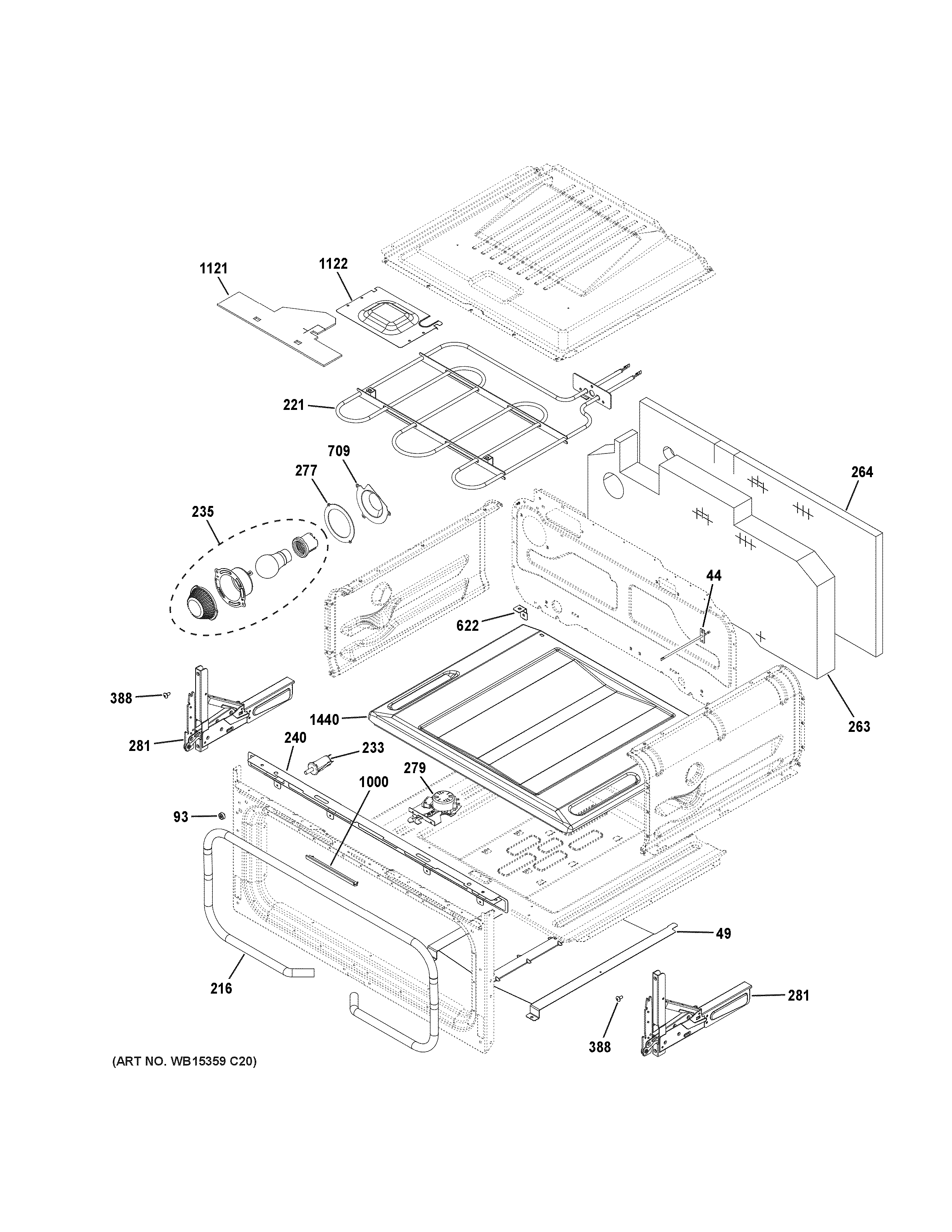

PositionProduct
44SENSOR ASM
49WB34X28907 GE Bake Deflector Upper
93WB02X28737 GE Oven Front Frame Bumper
216WB35X29666 GE Oven Gasket
221BROIL ELEMENT
233WB24X29265 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
240MESH FRAME
263WB35X28788 GE Oven Back Insulation
264WB35X28790 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
279WB10X28794 GE Oven Automatic Latch
281WB10X28783 GE Left Hand Hinge Assembly
388WB01T10008 GE Oven Screw 10-32
622WB2K3 GE Angle Support
709WB08K10018 GE Range Light Cover
1000GASKET FRAME FRONT
1121WB35X28986 GE Latch Insulation
1122GEN WB34X21710
1440WB63X24934 GE Oven Bottom
