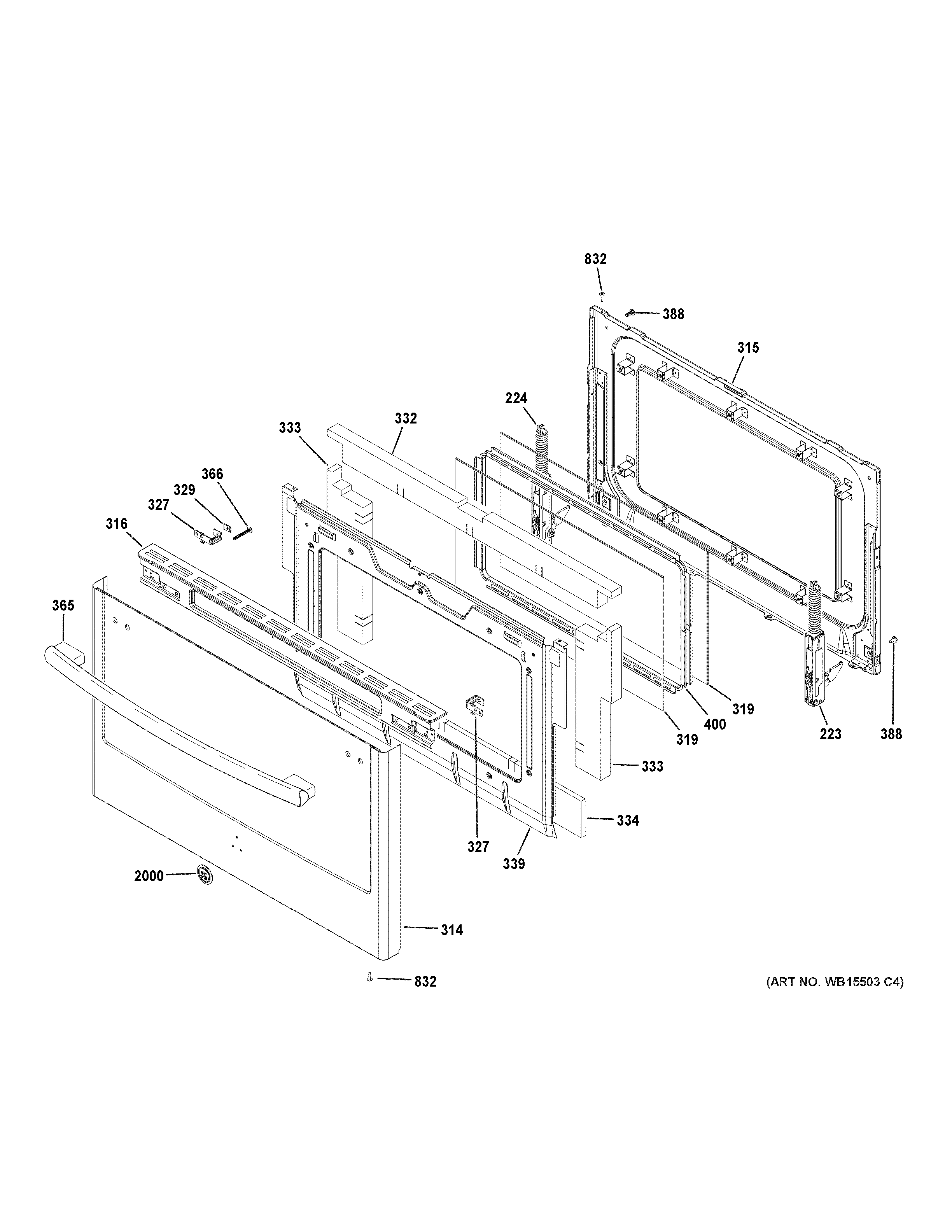

PGS960SEL3SS LOWER DOOR

PGS960SEL3SS LOWER DOOR

Written by

in

PGS960SEL3SS LOWER DOOR

Products

PositionProduct
223WB10X26766 GE Oven Door Hinge
224WB10X25637 GE Oven Right Door Hinge
314WB56X28177 GE Oven Glass & Panel Door Assembly
315WB56X24931 GE Oven Liner Door Weld Assembly
316WB56X29146 GE Oven Top Cover Assembly
319WB57K10155 GE Oven Crystal Window
327BRACKET HANDLE
329WB1K2 GE Oven Speednut
332WB34X21727 GE Oven Door Insulation
333WB34X21726 GE Oven Door Insulation
334WB34X21728 GE Oven Door Insulation
339WB56K10079 GE Oven Insulation Guard
365HANDLE AND END CAP ASM
366WB02X32442 GE Screw 10-24
388WB01T10008 GE Oven Screw 10-32
400WB34X28741 GE Oven Frame Window Assembly
832WR01X10065 GE Screw
2000WB02X29479 GE Oven Badge Assembly
