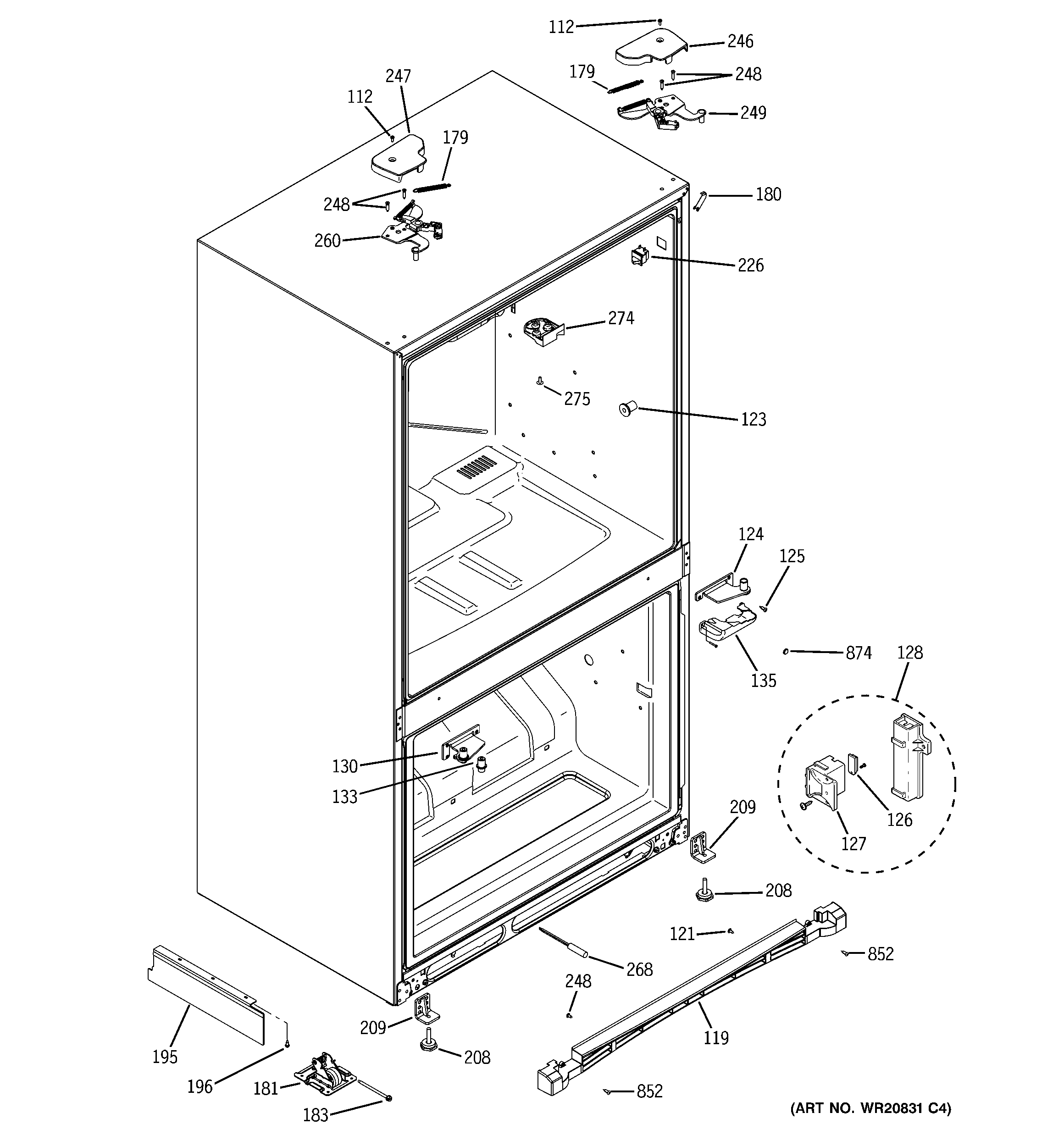

PGSS5NFZBSS CASE PARTS

PGSS5NFZBSS CASE PARTS

Written by

in

PGSS5NFZBSS CASE PARTS

Products

PositionProduct
112WR01X10379 GE Refrigerator Hinge Cover Screw
119GRILLE BASE COVER
121WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
123WR02X12187 GE Refrigerator Support Shelf
124GEN WR13X10432
125WR01X10690 GE Refrigerator Screw 12-24 TT HXT20 .90 S
126WR02X12711 GE Refrigerator Humidity Sensor
127WR17X12443 GE Humidity Sensor Housing
128WR55X10748 GE Refrigerator Humidity Sensor Assembly
130GEN WR13X10433
133WR01X10793 GE Refrigerator Hinge Adjuster Pin
135GEN WR02X12590
179WR01X10827 GE Refrigerator Closure Spring
180CAP CORNER OC
181GEN WR02X12334
183WR01X10210 GE Refrigerator Mobility Screw
195GEN WR17X12424
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
208WR01X10686 GE Refrigerator Leveling Screw
209WR02X12378 GE Leg Assembly Bracket
226WR23X37285 GE Light Switch
246COVER HINGE TOP RH
247GEN WR02X12706
248WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
249HINGE CLOSURE ASM
260GEN WR13X10565
268WR55X10025 GE Refrigerator Temperature Sensor
274WR02X13442 GE Top Mullion Striker
275WR01X10065 GE Screw
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
874GEN WR01X10855
