PGSS5PJZCSS FREEZER SHELVES

PGSS5PJZCSS FREEZER SHELVES

Written by

in

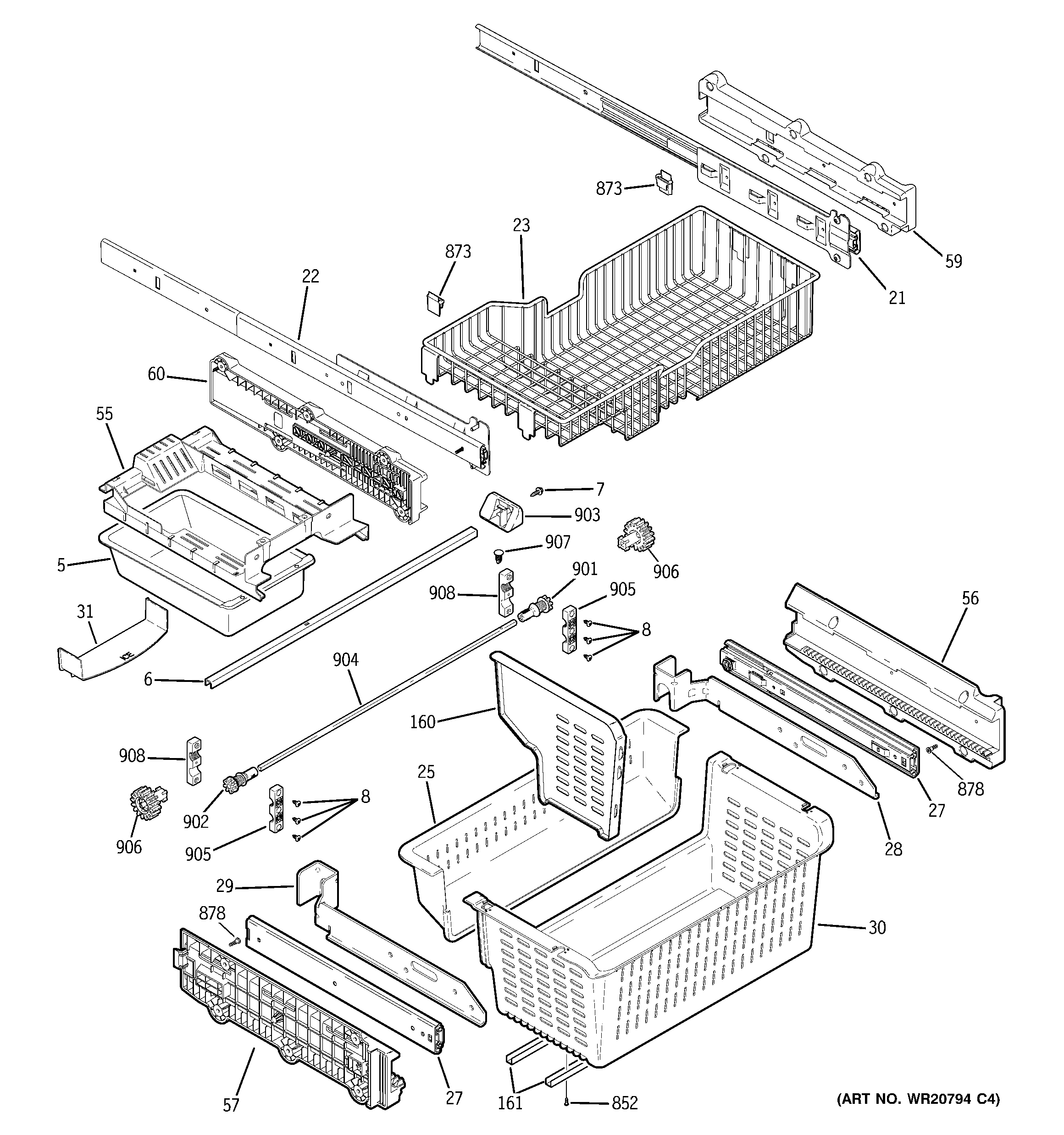

PGSS5PJZCSS FREEZER SHELVES

Products

PositionProduct
5GEN WR30X10146
6GEN WR02X12692
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
8WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
21GEN WR17X12918
22GEN WR17X12919
23GEN WR21X10201
25WR21X10230 GE Lower Back Basket
27GEN WR17X12863
28WR17X12922 GE Right Connector Bracket
29WR17X12923 GE Bracket Connector LH
30GEN WR21X10231
31WR17X12940 GE Ice Chute Bucket
55GEN WR17X12921
56GEN WR02X13398
57GEN WR02X13399
59GEN WR02X12707
60GEN WR02X12708
160GEN WR02X13402
161WR02X13383 GE Refrigerator Stiffener
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
873WR02X12733 GE Refrigerator Bracket Sleeve
878WR01X10939 GE Refrigerator Screw 10-14 PL FLT20 3/4 S
901WR02X13413 GE Refrigerator Lower Drawer Right Hand Pinion
902WR02X13414 GE Refrigerator Pinion Lower Drawer Left Hand
903GEN WR02X13385
904WR02X13411 GE Refrigerator Cross Bar Pinion
905WR02X13415 GE Refrigerator Front Connector DD
906WR02X13412 GE Refrigerator Lower Drawer Gear
907WR01X10947 GE Refrigerator Fastener Push
908WR02X13416 GE Refrigerator Rear Connector
