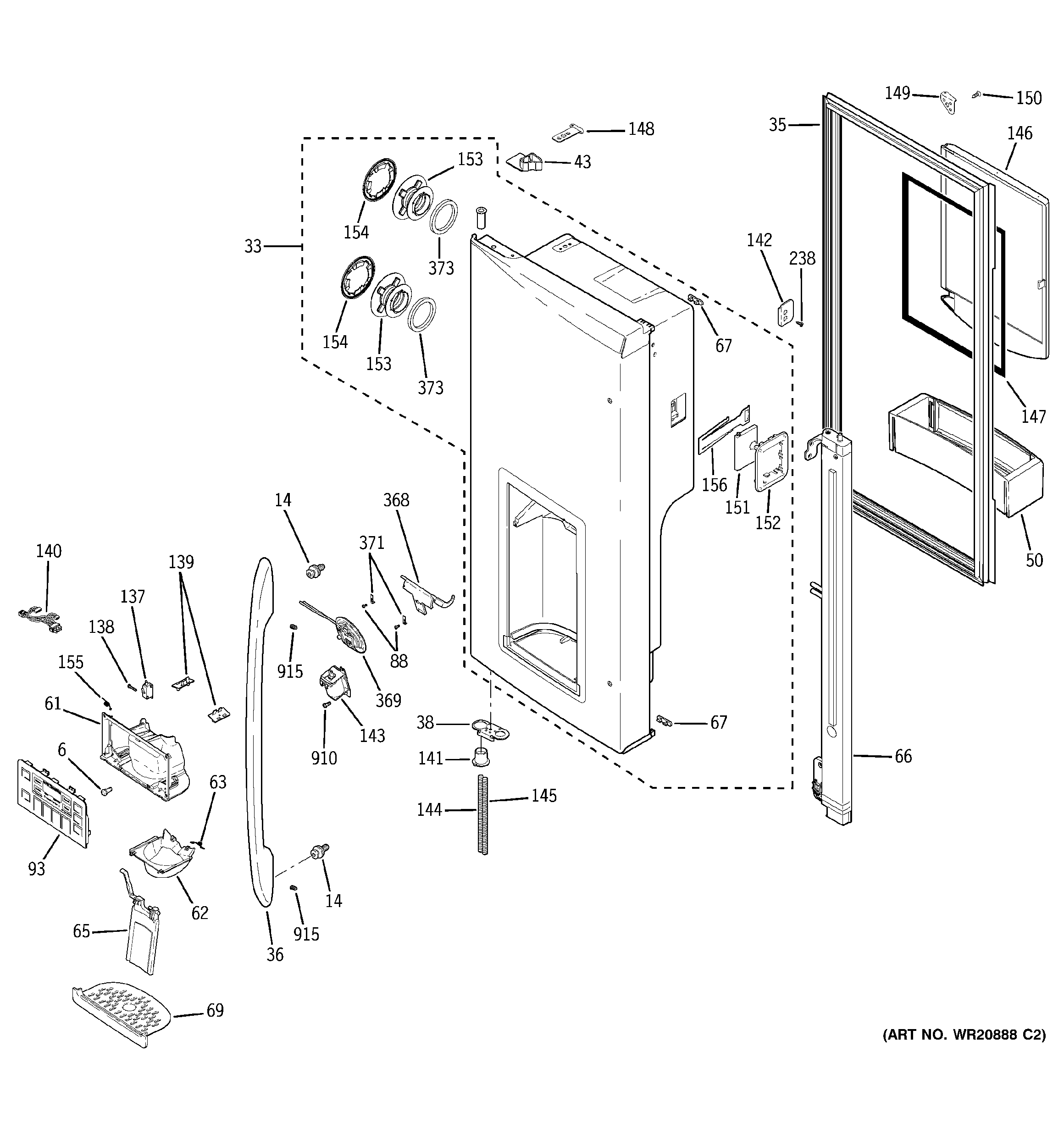

PGSS5RKZCSS DISPENSER DOOR

Products

Position	Product
6	WR02X13502 GE Rivet Clinch
14	FASTENER HANDLE SS
33	GEN WR78X12737
35	GASKET FRENCH WITH FLAP
36	GEN WR12X10976
38	STOP DOOR BM
43	CAM FF CLOSURE LH
50	MODULE SHELF ASM FF
61	WR17X34385 GE Refrigerator Dispenser Housing Shield Assembly
62	WR17X12983 GE Refrigerator Ice Dispenser Funnel
63	SPRING TORSION
65	PADDLE ASM
66	ARTICULATION MULLION ASM
67	BUMPER FRENCH DOOR
69	GRILL RECESS
88	WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
93	WR55X11087 GE Refrigerator Dispenser Interface Assembly
137	WR23X10783 GE Refrigerator Dispenser Micro Switch
138	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
139	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
140	WR23X10665 GE Dispenser Recess Harness
141	THIMBLE DOOR FF
142	CLIP MULLION HINGE
143	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
144	WR02X13488 GE Refrigerator Spring Water Conduit
145	SPRING WATER CONDUIT
146	WR17X12984 GE Refrigerator Door Ice Box Assembly
147	GASKET ICEBOX DOOR
148	DOOR ICEBOX HINGE TOP
149	DOOR ICEBOX HINGE BOTTOM
150	SCR 8-18 HI-LO FLP 1/2 S
151	LATCH BUTTON
152	LATCH TRIM
153	GASKET RETAINER
154	PORT GASKET
155	SPRING DUCT DOOR
238	WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
368	WR17X10706 GE Refrigerator Door Crank Recess
369	DUCT DOOR HEATER ASM
371	WR2X8818 GE Refrigerator Retainer
373	FOAM TAPE
910	WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
915	WR01X10450 GE Refrigerator Screw Set
