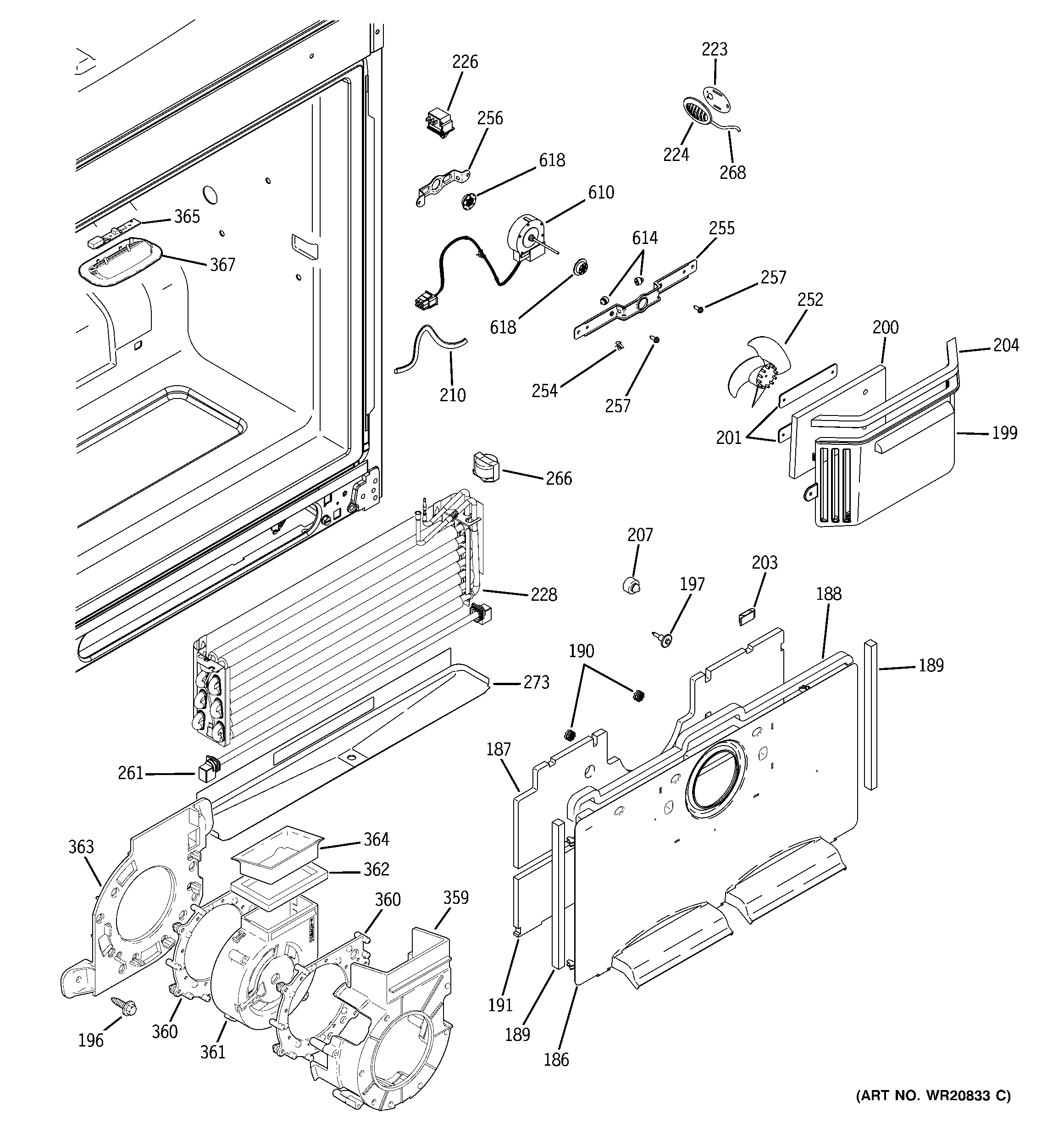

PGSS5RKZJ SS FREEZER SECTION

PGSS5RKZJ SS FREEZER SECTION

Written by

in

PGSS5RKZJ SS FREEZER SECTION

Products

PositionProduct
186COVER EVAP
187FOAM PAD COVER EVAP
188WR14X10221 GE Refrigerator Foam Strip Adhesive
189WR14X10222 GE Adhesive Foam Strip
190WR02X11331 GE Refrigerator Grommet
191INSULATION COVER EVAP
196WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
197WR01X10685 GE Scraper 8-18 Assembly
199WR17X12254 GE Refrigerator Cover Evaporator Fan
200FOAM PAD COVER EVAP
201HOLDER FOAM PAD
203WR23X10535 GE Refrigerator Ground Harness
204WR14X10223 GE Adhesive Foam Strip
207BUMPER LID
210WR14X10267 GE Insulation Harness
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
226WR23X37285 GE Light Switch
228LOW SIDE ASM
252EVAPORATOR FAN BLADE
254WR02X11607 GE Refrigerator Wire Tie
255WR17X12507 GE Evaporator Fan Front Bracket
256WR02X10764 GE Refrigerator Evaporator Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261WR51X10094 GE Refrigerator Defrost Heater
266WR50X10065 GE Refrigerator Defrost Thermostat
268WR55X10025 GE Refrigerator Temperature Sensor
273WR17X12936 GE Shield Trough Assembly
359WR17X12998 GE Rear Blower Bracket
360WR17X12999 GE Refrigerator Blower Damper
361WR60X10330 GE Refrigerator Duct Blower Fan
362GASKET FAN BRACKET
363WR17X13001 GE Blower Front Bracket
364BOOT FZ DUCT
365WR55X11088 GE Refrigerator LED Board Light Assembly
367WR17X13003 GE Refrigerator LED Cover Assembly
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
