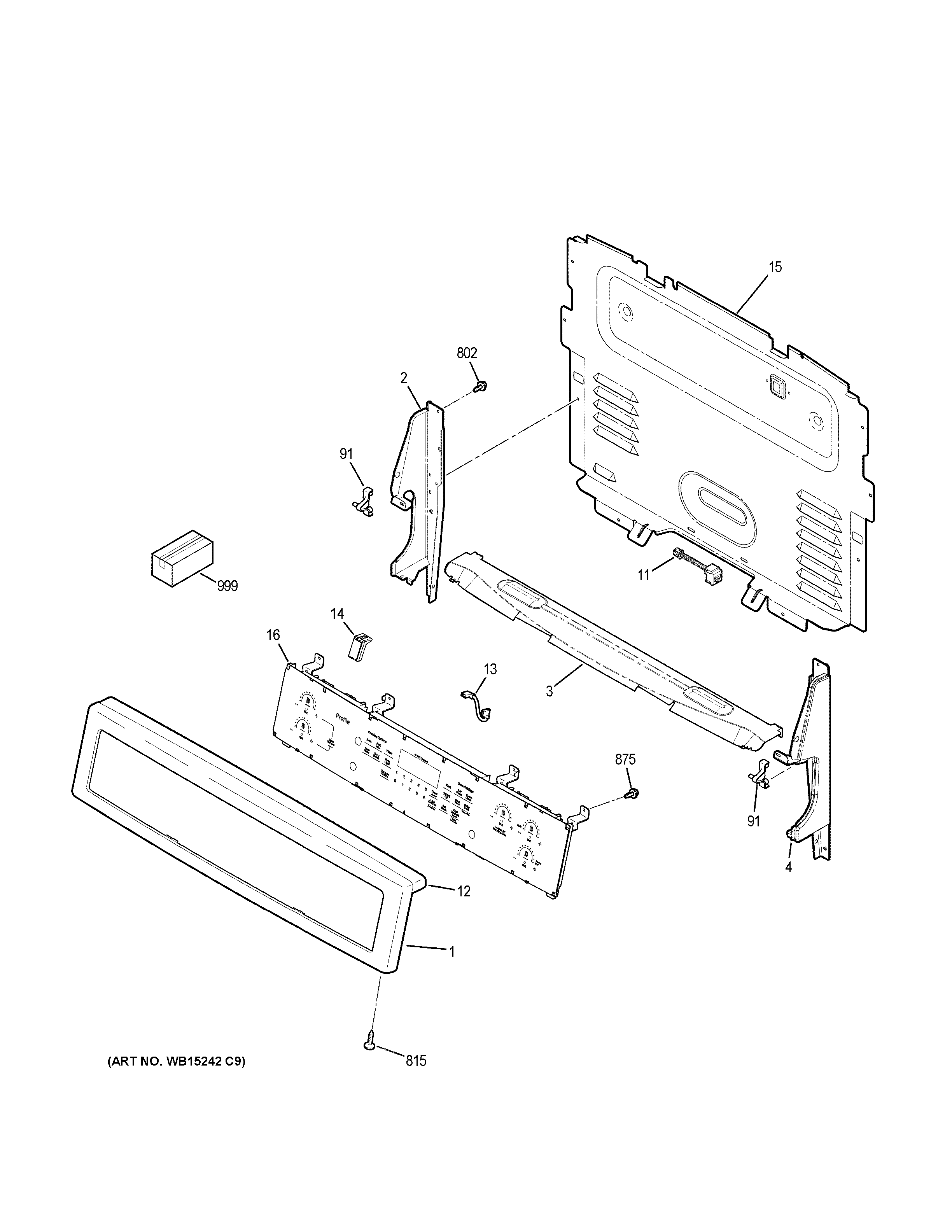

PHB920BJ4TS CONTROL PANEL

PHB920BJ4TS CONTROL PANEL

Written by

in

PHB920BJ4TS CONTROL PANEL

Products

PositionProduct
1LABEL WIRE DIAGRAM
1WB07X30076 GE Control Panel Trim Assembly
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
11WB27X25015 GE Oven RJ45 Assembly
12WB07X28582 GE Oven Top Trim Assembly
13WB18X30704 GE Jumper
14WB27X33353 GE Wi-Fi Module Kit
15WB34X29576 GE Oven Back Control Panel Cover
16OVEN CONTROL AND OVERLAY ASM WHITE LED
91WB10T10116 GE Range Top Hinge Pin
802WB01T10016 GE Oven Screw 8-18 AB Hex
815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WB1K5200 GE Oven Screw 340531
999PM WI FI INSTRUCTIONS
999PM INSTRUCTION CLEANING
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM QUICK GUIDE
