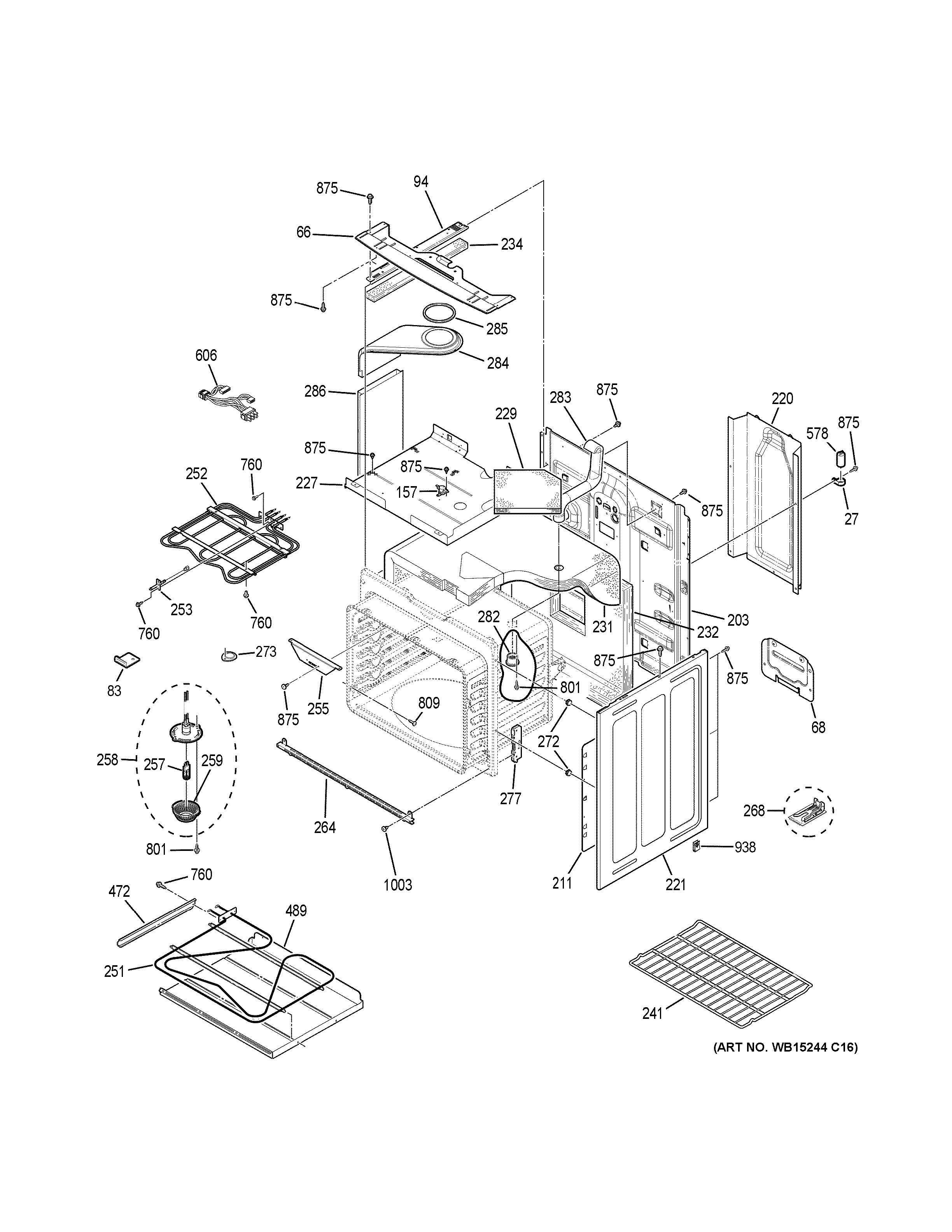

PHB920FJ4DS BODY PARTS

PHB920FJ4DS BODY PARTS

Written by

in

PHB920FJ4DS BODY PARTS

Products

PositionProduct
27WB02T10194 GE Capacitor Bracket
66WB34X30165 GE Range Top Enclosure
68PLATE COVER (BK)
83WB02T10118 GE Oven Clip Seam
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
157HIGH LIMIT SWITCH
203MAIN BACK COVER
211WB34X29158 GE Side Insulation Retainer
220WB34X29563 GE Oven Wire Cover
221SIDE PANEL ASM
227INSULATION RETAINER
229WB35T10017 GE Oven Vent Tube Insulation
231WB35X29572 GE Oven Cavity Insulation
232WB35X29571 GE Oven Back Insulation
234INSULATION HIDDEN BAKE
241WB48T10082 GE Oven Rack
251WB44X45499 GE Oven Bake Element
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
255WB07X21459 GE Latch Trim
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X26164 GE Lamp Halogen Assembly
259OV LAMP LENS LWR
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277WB10X29566 GE Hinge Receiver
282WB38X33648 GE Vent Tube
283WB34X29573 GE Vent Tube
284DUCT UPPER ASM
285WB02T10591 GE Range Foam Tape Gasket
286WB34X29183 GE Side Duct Assembly
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
606WB18X31105 GE Temperature Sensor Harness Wir
760WB1X536 GE Oven Screw
801WB01M10002 GE Oven Screw
809WH2X930 GE Screw
875WB1K5200 GE Oven Screw 340531
938WB1K5209 GE Oven Clip
1003WB01T10008 GE Oven Screw 10-32
