PHB920SJ5SS CONTROL PANEL

PHB920SJ5SS CONTROL PANEL

Written by

in

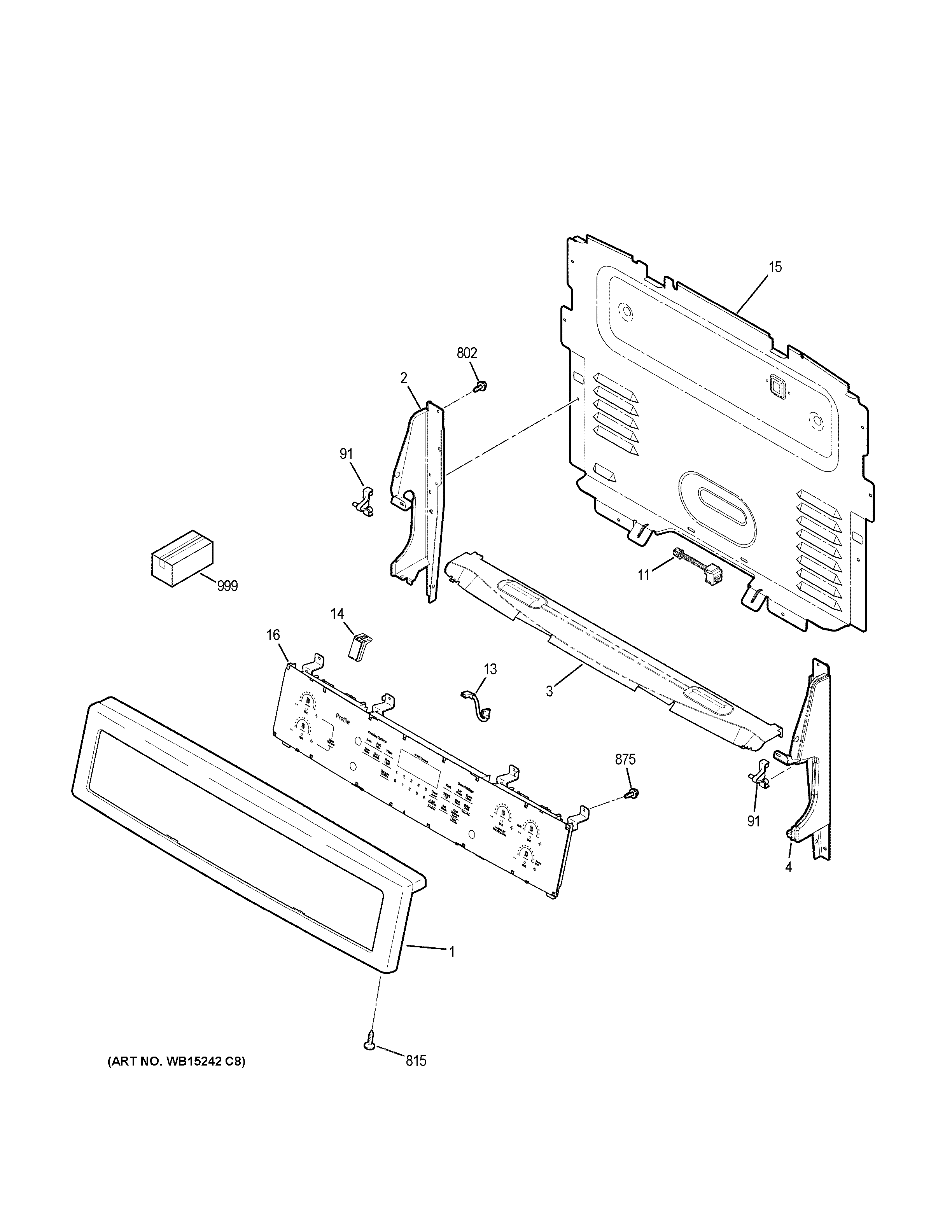

PHB920SJ5SS CONTROL PANEL

Products

PositionProduct
1WB07X28610 GE Oven Trim Cap Assembly
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
11WB27X30706 GE RJ45 Connector Harness
13WB18X30704 GE Jumper
14WB27X33353 GE Wi-Fi Module Kit
15WB34X29576 GE Oven Back Control Panel Cover
16OVEN CONTROL AND OVERLAY ASM WHITE LED
91WB10T10116 GE Range Top Hinge Pin
802WB01T10016 GE Oven Screw 8-18 AB Hex
815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WB1K5200 GE Oven Screw 340531
999PM INSTALL INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999MANUAL U&C TIP SHEET
999PM MANUAL MINI & WD ASM
999PM QUICK GUIDE
999INSTRUCTION INSTALL
