PHB925ST3SS WARMING DRAWER

PHB925ST3SS WARMING DRAWER

Written by

in

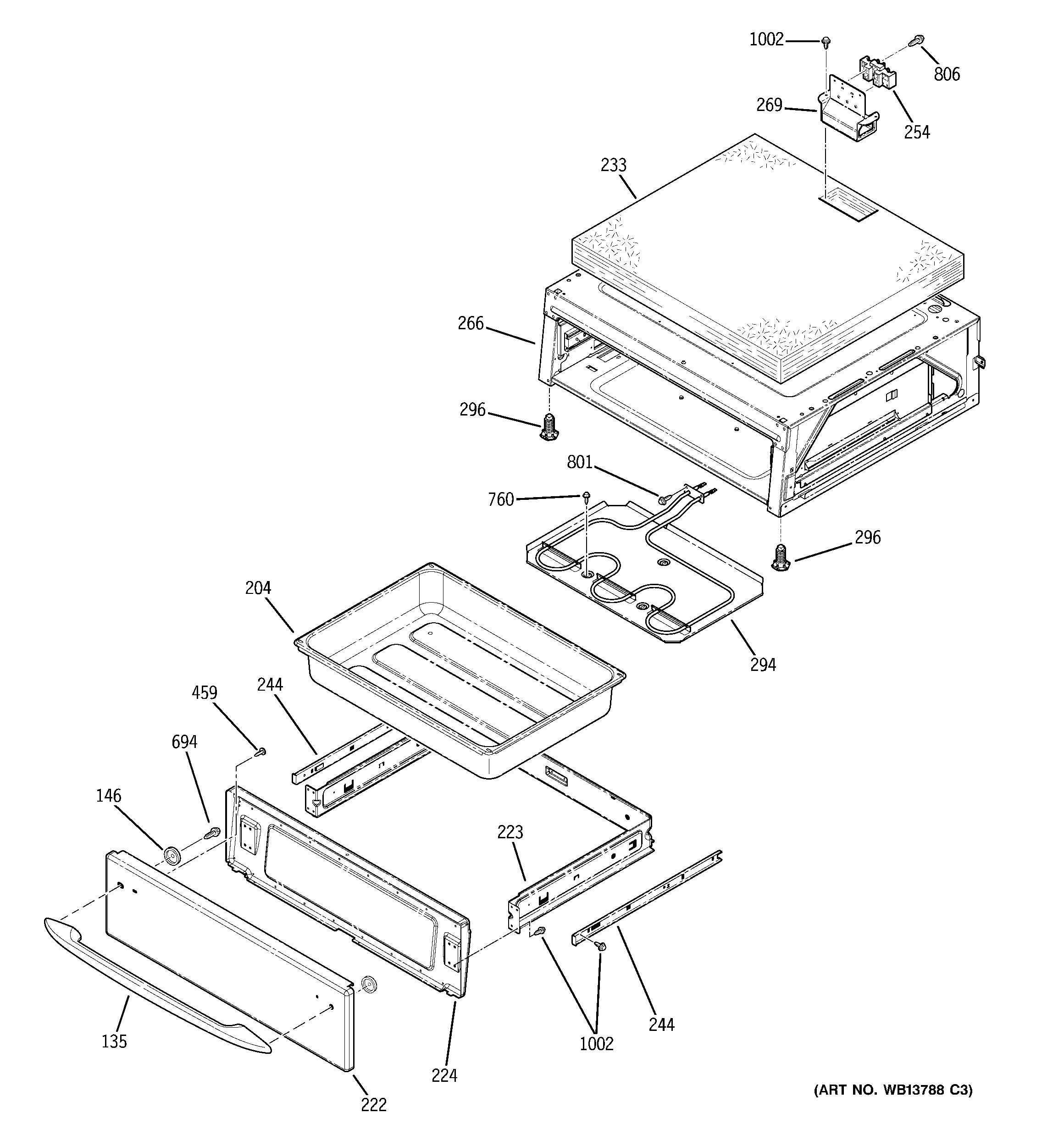

PHB925ST3SS WARMING DRAWER

Products

PositionProduct
135HANDLE 30 ASM (PRF-SS)
146WB1K5117 GE Oven Washer
204WB49T10076 GE Oven Drawer Pan
222PANEL DRAWER SS
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224WB56T10331 GE Drawer Front Inner
233GEN WB35T10254
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266WB63X25888 GE Base Rivet Assembly
266GEN WB58T10021
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
459WB1X537 GE Oven Screw
694GEN WB01T10108
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806GEN WB01T10113
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
