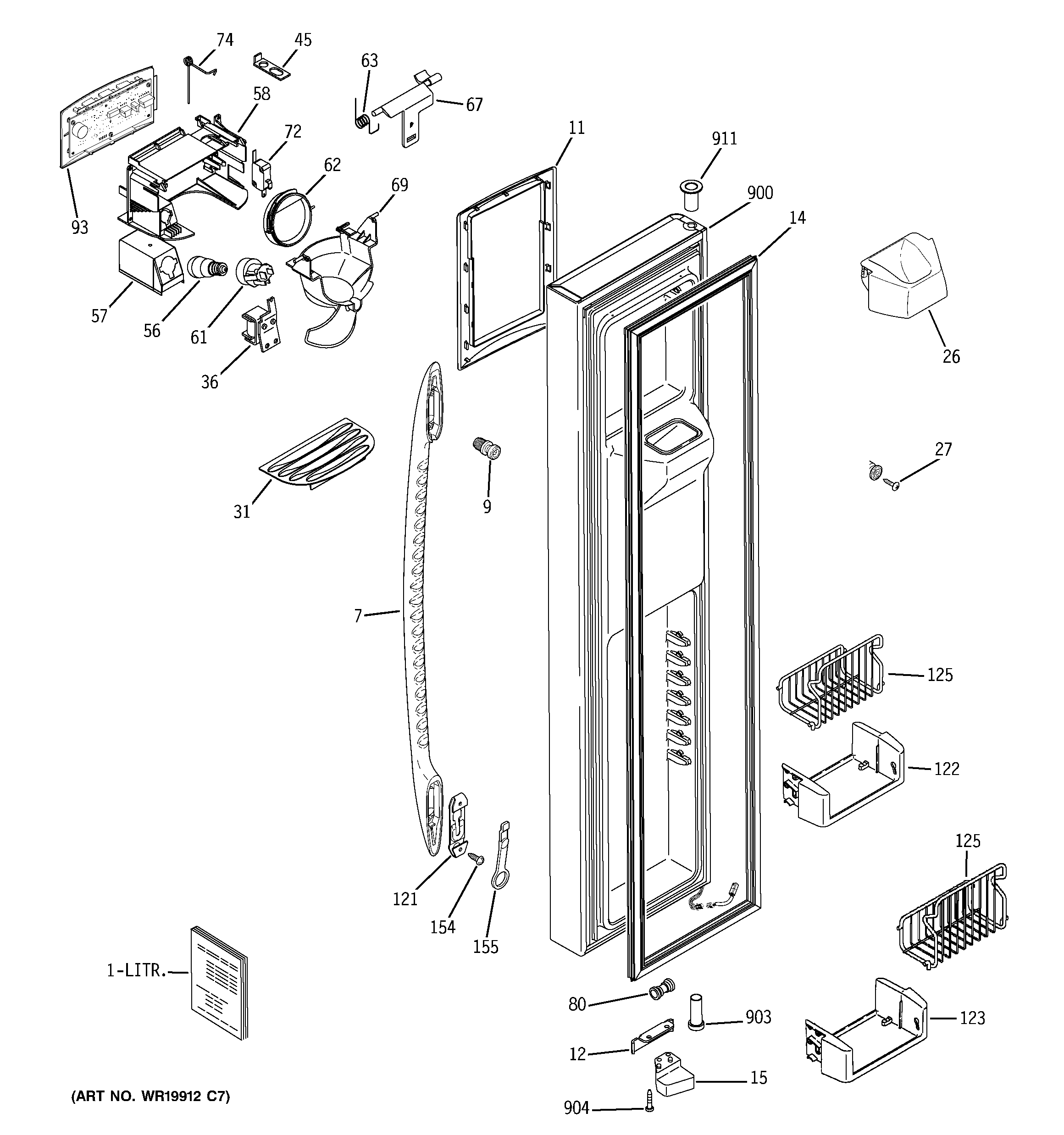

PHE25MGTAFBB FREEZER DOOR

PHE25MGTAFBB FREEZER DOOR

Written by

in

PHE25MGTAFBB FREEZER DOOR

Products

Position	Product
1	GEN 31-46234
1	GEN 49-60384
7	WR12X10731 GE Refrigerator Handle Assembly SXS White
9	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
11	WR38X10237 GE Refrigerator Black Recess Trim
11	GEN WR38X10227
12	WR02X13425 GE Refrigerator Door Stop
12	WR02X13424 GE Refrigerator Door Stop
14	GEN WR24X10170
14	GEN WR24X10168
15	WR02X10638 GE Refrigerator Cam Closure
15	WR02X10780 GE Refrigerator Cam Closure
26	WR71X10633 GE Refrigerator Ice Guide
27	WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31	WR17X11655 GE Refrigerator Grille Recess Black
31	WR17X11654 GE Refrigerator White Recess Grille
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
56	WR01X37886 GE Refrigerator Dispenser Light
57	WR02X10670 GE Refrigerator Reflector Light
58	WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
61	WR2X9561 GE Refrigerator Lamp Socket
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR49X10228 GE Dispenser Shield Housing Kit
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	GEN WR02X10584
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10617
93	GEN WR55X10618
121	WR02X12022 GE Refrigerator Locking Handle
122	WR71X10256 GE Refrigerator Module Support
123	WR71X10629 GE Freezer Fixed Shelf Module
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
154	WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
900	GEN WR78X11748
900	GEN WR78X11805
903	WR01X10208 GE Refrigerator Door Thimble
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10955 GE Refrigerator Door Thimble
911	WR01X10956 GE Door Thimble
