PHNT10CCH1 ROOM AIR CONDITIONER

Products

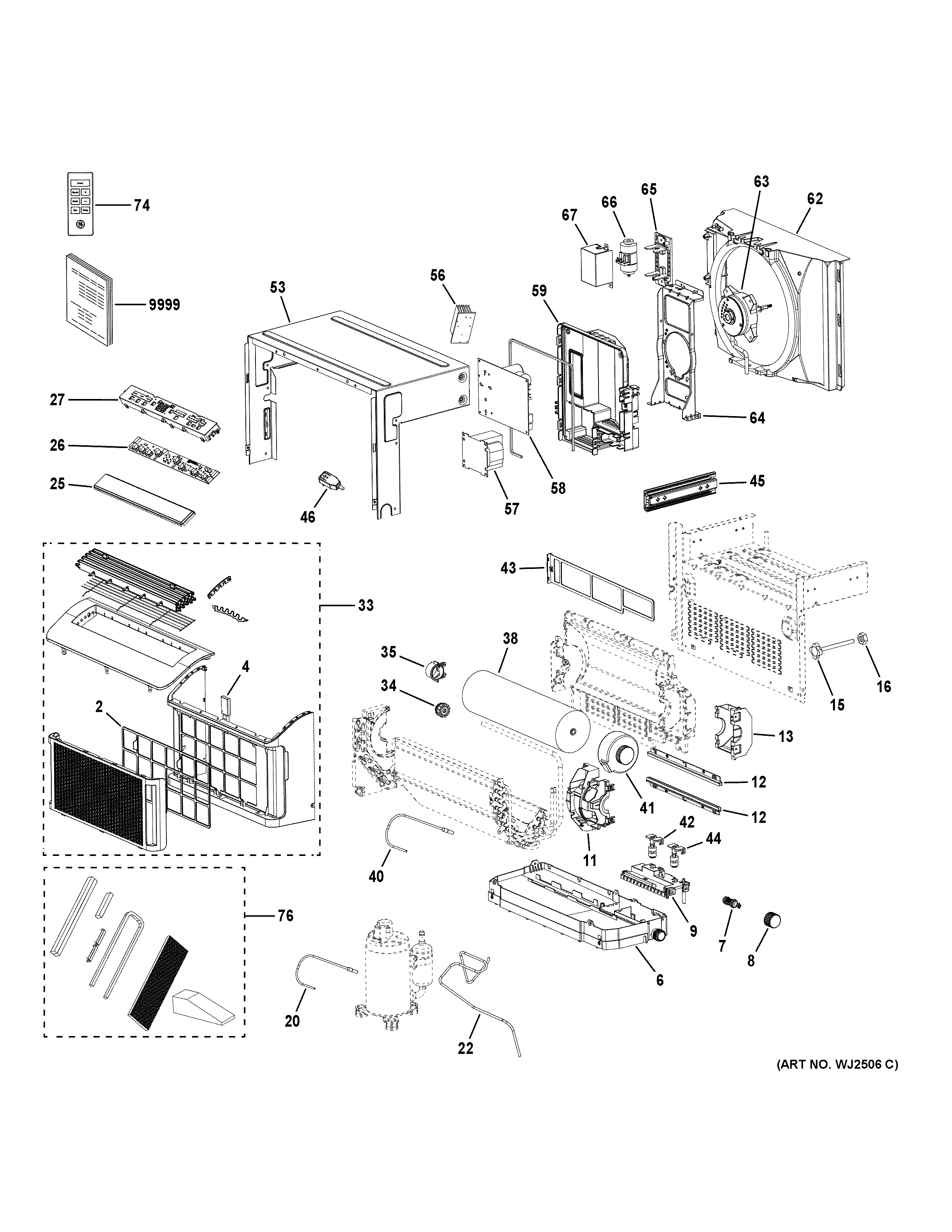

PositionProduct
2AIR FILTER
4WJ26X32347 GE Wi-Fi Module
6WJ76X29639 GE Water Tray Collection
7WJ85X32335 GE Air Filter
8WJ76X29646 GE Water Outlet Cover
9WJ76X29640 GE Water Tank Cover
11WJ76X29713 GE Motor Cover
12WJ65X29642 GE Filter Guide Rail
13WJ76X29714 GE Motor Cover Top
15WJ01X29718 GE Bolt
16WJ01X29715 GE Washer Bolt Washer
20WJ26X32340 GE Temperature Sensor
22WJ35X29652 GE Water Pump Harness
25UI BOARD COVER
26WJ26X28583 GE User Interface Board
27UI BOARD DISPLAY
33WJ71X32349 GE Front Panel Assembly
34WJ73X23028 GE Fan Cross Flow Bearing
35WJ73X29635 GE Fan Bearing
38WJ73X29645 GE Indoor Fan
40WJ26X26676 GE Air Temperature Sensor Outlet
41WJ94X32342 GE Indoor AC Motor
42WATER LEVEL FLOAT
43WJ85X29643 GE Air Filter
44WATER LEVEL FLOAT
45RAIL ASSEMBLY
46WJ35X32341 GE Power Cord
53WJ90X29634 GE Cabinet Casing
56RADIATOR
57WJ27X23157 GE Reactor
58WJ26X32348 GE Inverter Board
59WJ76X32336 GE Control Box Cover
62WJ76X29641 GE Outdoor Fan Shroud
63WJ94X32339 GE Air Conditioner Motor
64OUTDDOR FAN MOTOR BRACKET
65WJ65X29637 GE Water Pump Bracket
66WJ26X29651 GE Water Pump
67WJ76X29633 GE Water Pump Box
74REMOTE
76WJ65X29773 GE Installation Kit
9999PM OWNERS AND INSTALL
9999PM MINI MANUAL AND WIRING
