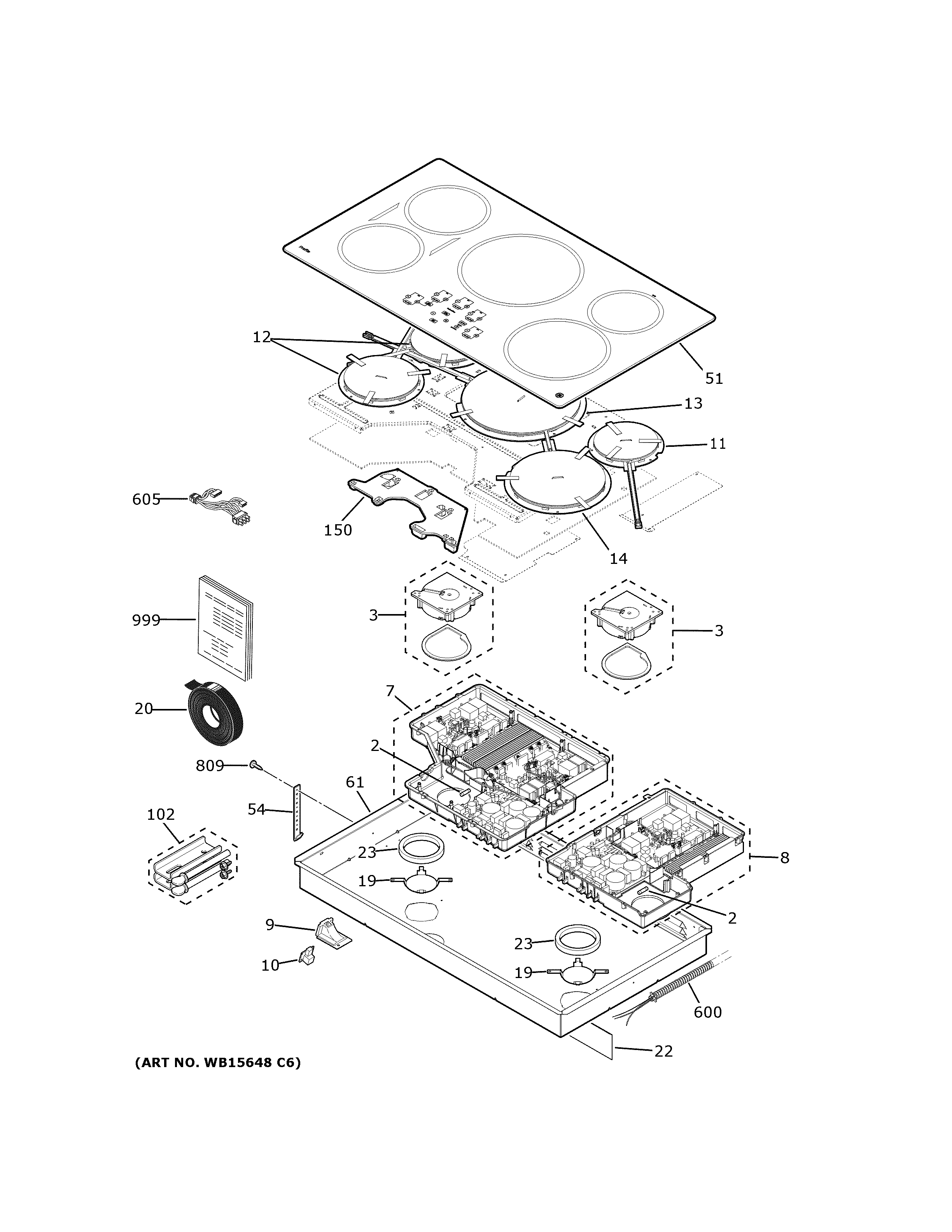

PHP9036DJ4BB CONTROL PANEL & COOKTOPadmin2025-04-26T09:50:34+00:00PHP9036DJ4BB CONTROL PANEL & COOKTOP ProductsPositionProduct2WB27X27316 GE Oven 250V 20A Fuse3WB26X24235 GE Oven Blower and Gasket Assembly7WB27X33085 GE Oven Induction Control Assembly8WB27X33086 GE Oven Induction Control Assembly9WB27X20933 GE Oven RJ45 Housing Assembly10WB27X24119 GE Oven RJ45 Connector Board11WB30X38225 GE Induction Element 1800W12WB30X38226 GE Induction Element 2500W13WB30X38227 GE Induction Element 3700W14WB30X38485 GE Induction Element 3200W19WB02X24262 GE Cooktop Fan Enclosure20WB02X26088 GE Oven Foam Tape22WB02X26802 GE Oven Baffle23WB35X24260 GE Bottom Oven Gasket51WB62X38588 GE Oven 36" Maintop Glass Assembly54WB2K5328 GE Oven Hold Down Bracket61WB63X29540 GE Range Bottom Burner Box102WB01X24570 GE Oven Installation Kit150WB27X24230 GE Oven Guide Light Assembly600CONDUIT WIRE ASM605WB18X31454 GE GND Wire Harness Assembly605WB18X24501 GE Main Wire Harness809WB1X1137 GE Oven Screw999PM OWNERS MANUAL999PM10X310 GE Cerama Bryte Cooktop Cleaner999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS
