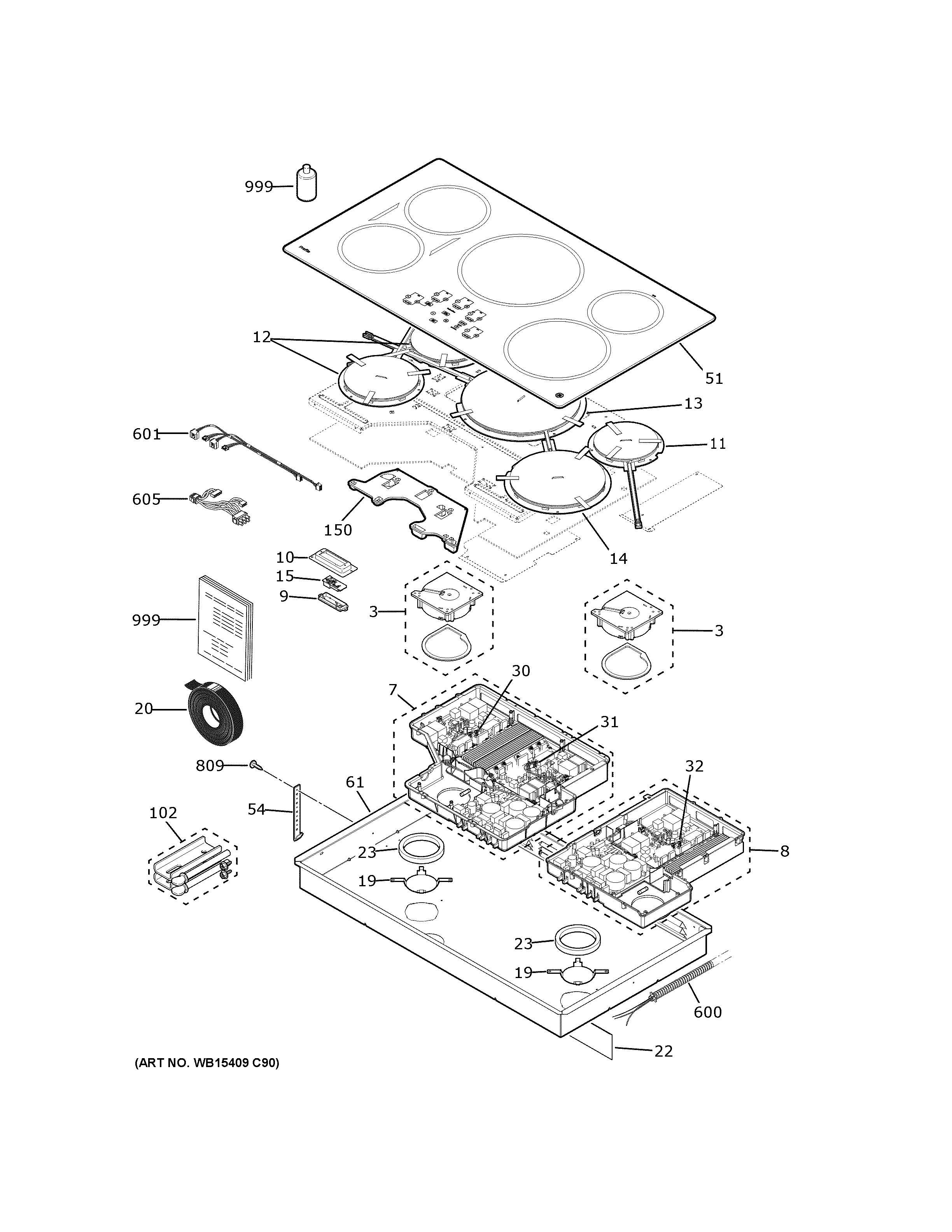

PHP9036DT1BB CONTROL PANEL & COOKTOPadmin2025-04-26T09:51:47+00:00PHP9036DT1BB CONTROL PANEL & COOKTOP ProductsPositionProduct3WB26X24235 GE Oven Blower and Gasket Assembly7WB27X44888 GE Induction Assembly8WB27X44889 GE Induction Assembly9WB02X30390 GE Wi-Fi Board Housing10WIFI HOUSING BRACKET11WB30X38625 GE Induction Element 1800W12WB30X38226 GE Induction Element 2500W13WB30X38227 GE Induction Element 3700W14WB30X38485 GE Induction Element 3200W15WB27X45808 GE Wi-Fi Bluetooth Combo Board19WB02X24262 GE Cooktop Fan Enclosure20WB02X26088 GE Oven Foam Tape22WB02X26802 GE Oven Baffle23WB35X24260 GE Bottom Oven Gasket30WB27X44894 GE Generator Left Board31WB27X44891 GE Generator Control Board32WB27X44893 GE Generator Board Right51WB62X44607 GE Maintop Glass and Frame54WB2K5328 GE Oven Hold Down Bracket61BURNER BOX BOTTOM102WB01X24570 GE Oven Installation Kit600WB18X31555 GE Wire Conduit Assembly601RJ45-WIFI HARNESS605WB18X44574 GE Wire Harness N Bd605WB18X31454 GE GND Wire Harness Assembly605WB18X44582 GE Wire Harness Ground809WB1X1137 GE Oven Screw999PM OWNERS MANUAL999PM INSTALL INSTRUCTIONS999INSTRUCTION INSTALL999CLEANER GLASS999PM MINI MANUAL AND WIRING
