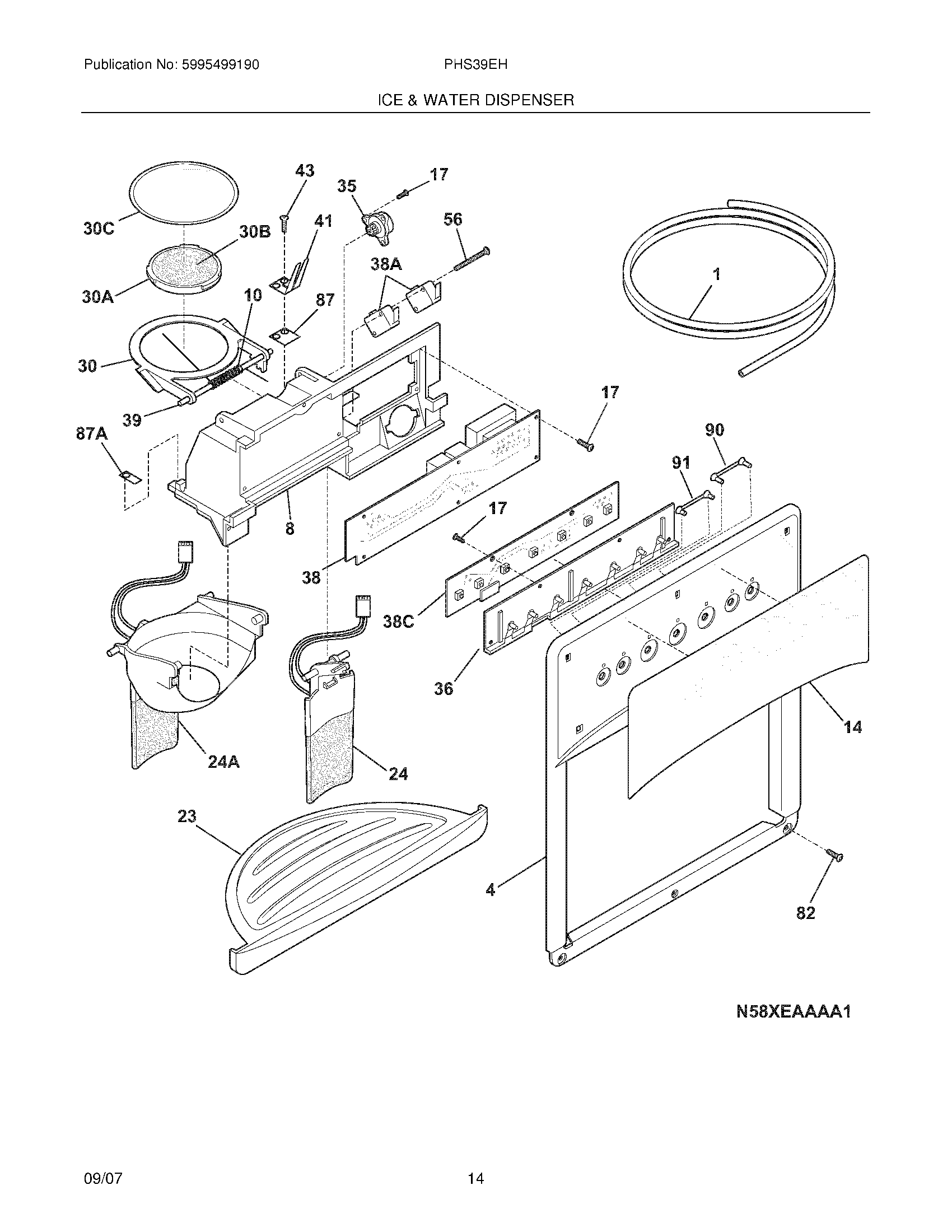

PHS39EHSS4 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976418 Frigidaire Refrigerator Water Inlet Tube
NI	218515403 Frigidaire Refrigerator Clip-Grille
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	240561701 Frigidaire Refrigerator Seal
NI	218976419 Frigidaire Refrigerator Tube
NI	WCI 241686201
1	241850615 Frigidaire Ice Maker Fill Tube Assembly
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 241678710
8	WCI 241680504
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 241611218
17	241679801 Frigidaire Screw
23	241649003 Frigidaire Refrigerator Drip Tray
24	241685704 Frigidaire Refrigerator Actuator
24A	241682304 Frigidaire Refrigerator Actuator-Ice
30C	241688701 Frigidaire Refrigerator Door Seal
30B	241688601 Frigidaire Refrigerator Door Insulation
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
35	241689301 Frigidaire Refrigerator Rotary Damper
36	WCI 241680301
38C	WCI 241680001
38	241527601 Frigidaire Refrigerator Board Switch
38C	241708307 Frigidaire Refrigerator Control Board
38A	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
82	5304453707 Frigidaire Oven Screw
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
90	WCI 241680201
91	WCI 241680101
