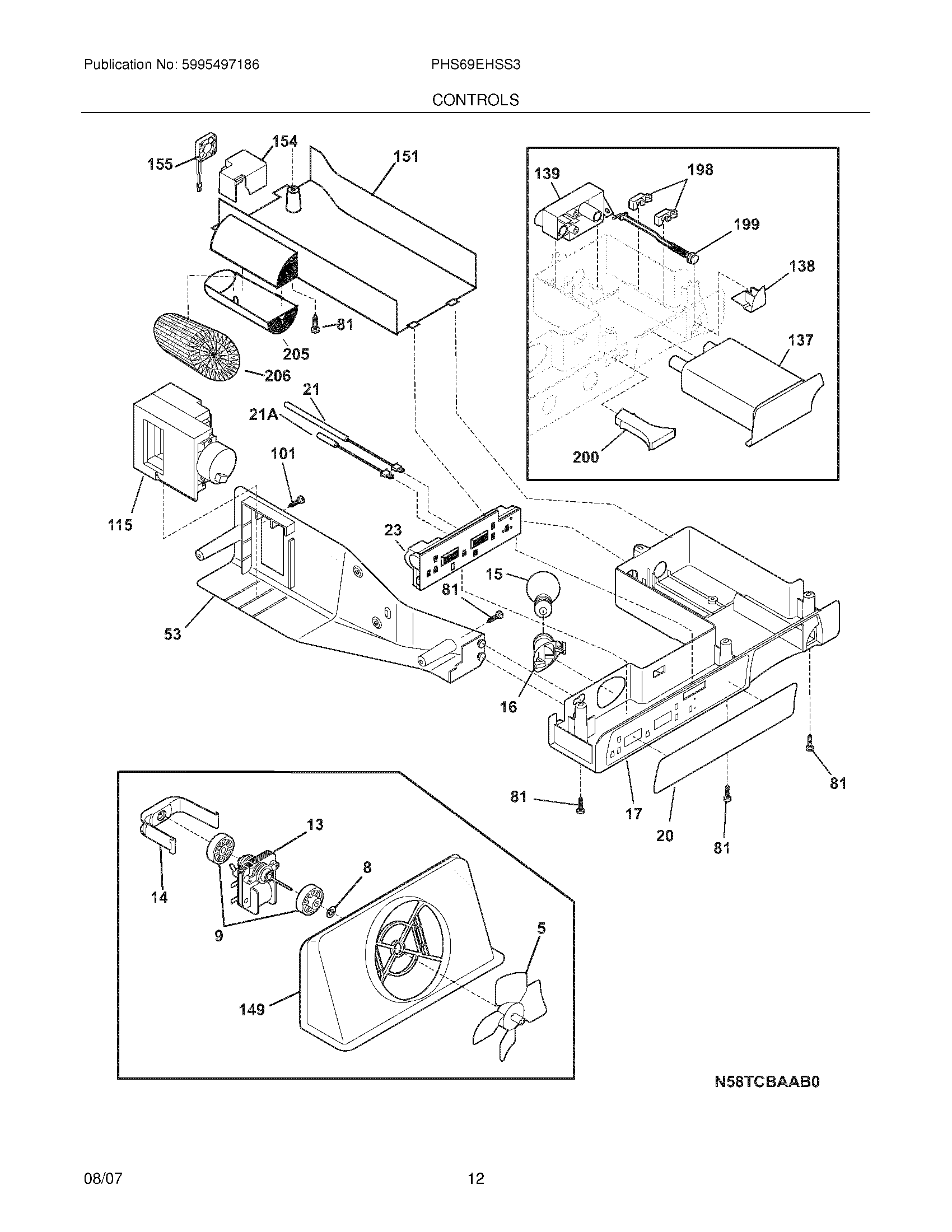

PHS69EHSS3 11 – CONTROLS

Products

Position	Product
NI	WCI 241737801
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	5304455649 Frigidaire Refrigerator Screw
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	EVAP MOTOR KIT
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
20	WCI 241603922
21	241608401 Frigidaire Refrigerator Thermistor
21A	241608501 Frigidaire Refrigerator Freezer Thermistor
23	241739711 Frigidaire Control Board Terminal Switch
53	241608902 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
101	241637202 Frigidaire Refrigerator Screw
115	241600906 Frigidaire Refrigerator Damper Control Assembly
137	WATER FILTER PURESOURCE 2
137	242227702 Frigidaire Refrigerator Bypass Water Filter
138	WCI 240397301
139	240527001 Frigidaire Refrigerator O-Ring N
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
149	241528303 Frigidaire Refrigerator Seal
149	242204506 Frigidaire Refrigerator Shroud Assembly
151	WCI 241526001
154	WCI 241525801
155	WCI 241526102
155	WCI 241611901
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	240398401 Frigidaire Refrigerator Filter Release Spring
199	WCI 240397501
200	WCI 240397601
205	WCI 241525901
206	AFCB Frigidaire Refrigerator Air Filter
