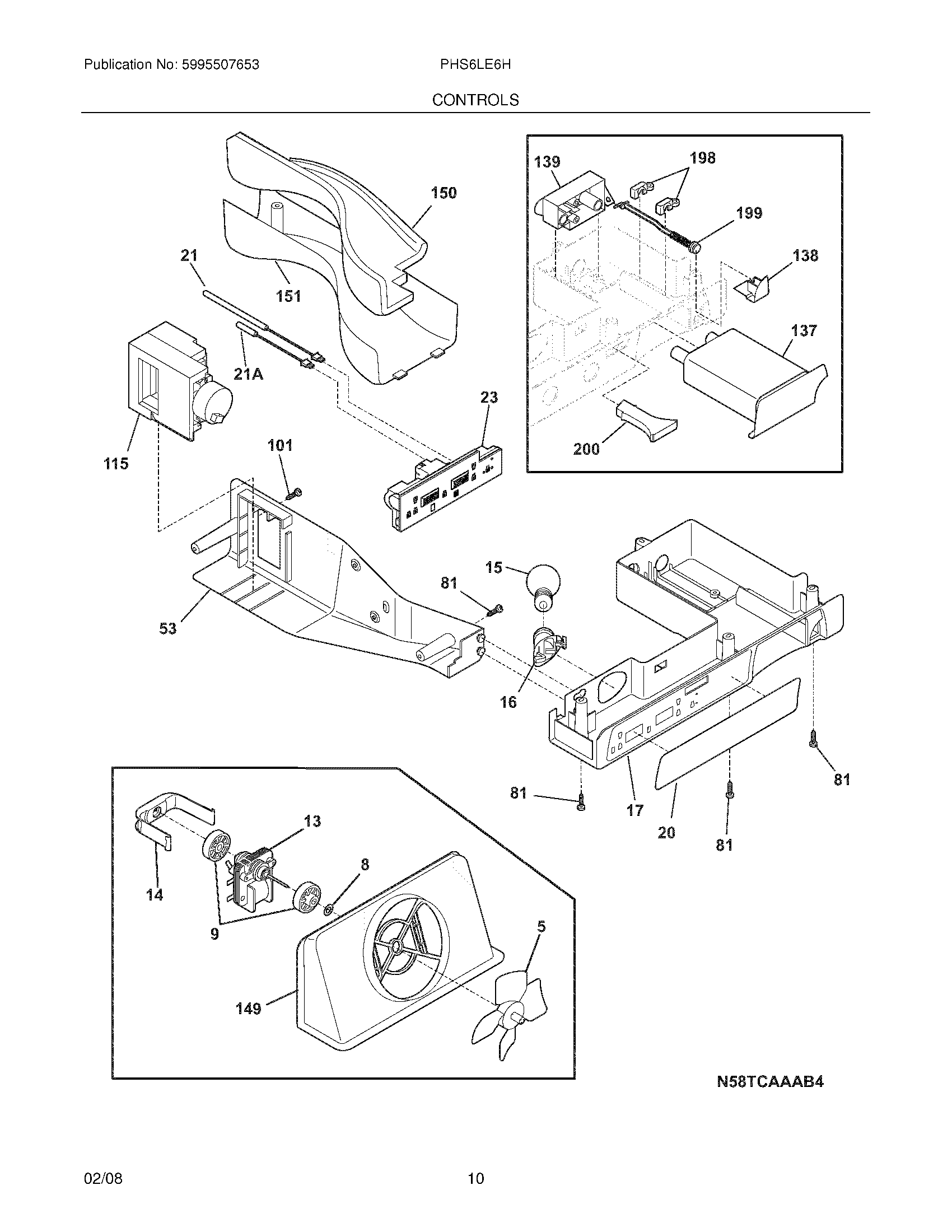

PHS6LE6HSB1 11 – CONTROLS

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	WCI 241737801
NI	3205266 Frigidaire Refrigerator Edge Protector
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	EVAP MOTOR KIT
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
20	WCI 241603913
21A	241608501 Frigidaire Refrigerator Freezer Thermistor
21	241608401 Frigidaire Refrigerator Thermistor
23	241739709 Frigidaire Control Board
53	241608902 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
101	241637202 Frigidaire Refrigerator Screw
115	241600906 Frigidaire Refrigerator Damper Control Assembly
137	WATER FILTER PURESOURCE 2
137	242227702 Frigidaire Refrigerator Bypass Water Filter
138	WCI 240397301
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
139	240527001 Frigidaire Refrigerator O-Ring N
149	242204506 Frigidaire Refrigerator Shroud Assembly
149	241528303 Frigidaire Refrigerator Seal
150	WCI 241505101
151	WCI 241505001
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	240398401 Frigidaire Refrigerator Filter Release Spring
199	WCI 240397501
200	WCI 240397601
