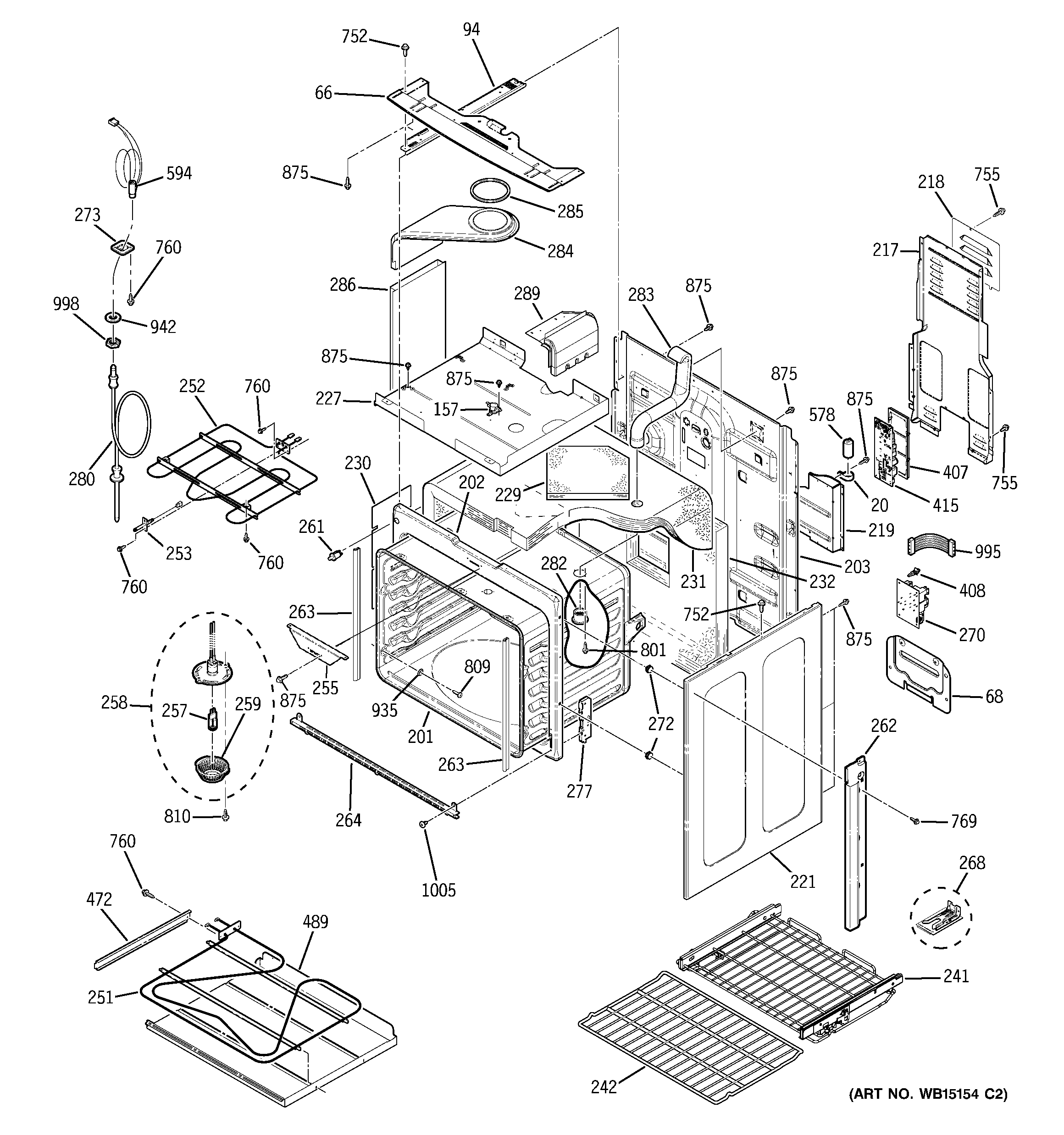

PHS925ST3SS BODY PARTS

PHS925ST3SS BODY PARTS

Written by

in

PHS925ST3SS BODY PARTS

Products

PositionProduct
20BRACKET CAPACITIOR
66ENCLOSURE CONTROL
68WB01X22142 GE Oven Installation Hardware Kit
94GEN WB02T10593
94BRACE CHASSIS SC RT
201BODY OVEN WELD ASM
202FRAME FRONT 5.0
203BACK MAIN (P016)
217COVER WIRE MAIN
218WB02T10560 GE Range Terminal Cover Assembly
219WB02T10590 GE Control Board Bracket
221WB56X28881 GE Oven Side Panel Black
227GEN WB02T10592
227GEN WB02T10252
229INSULATION
229WB35T10017 GE Oven Vent Tube Insulation
230INSULATION
231WB35T10242 GE Oven Insulation Assembly
232GEN WB35T10023
241GEN WB48T10077
242WB48T10083 GE Oven Rack
251WB44X45499 GE Oven Bake Element
252WB44T10094 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
255GEN WB07T10517
257WB08T10045 GE Oven G9 Halogen Lamp
258GEN WB25T10097
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
262TRIM VERTICAL SDE
262TRIM VERTICAL SDE
262GEN WB63T10112
263GEN WB63T10113
263GASKET TRIM VERT
264WB07T10516 GE Oven Front Trim Assembly
264WB39K10020 GE Oven Right Drawer Slide Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
270WB27T11355 GE Oven Relay Board Daughter
270GEN WB34T10107
270GEN WB34T10108
272WB02T10034 GE Oven Body Side Support
273PROBE COVER
273GEN WB02X8309
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
283TUBE VNT SINGLE
285WB02T10591 GE Range Foam Tape Gasket
286DUCT SIDE ASM
289DUCT CURVED ASM
407WB02T10512 GE Range Relay Board Frame
408WB02T10477 GE Standoff PCB
415WB27T11356 GE Oven Printed Circuit Board Assembly
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
594WB18T10394 GE Oven Wire Probe Harness
752WB1K5200 GE Oven Screw 340531
755SCR 8-18 AB PNT15 5/8 S
760WB1X536 GE Oven Screw
769WH2X930 GE Screw
801WB1M1 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WZ4X245D GE Screw Package
875WD02X10208 GE Screw 10-32 TTT Hex 7/16
935GEN WB01X1256
942WB1X5573 GE Oven Washer
995GEN WB18T10546
995WB18T10508 GE Logic DRM Harness
995GEN WB27T11101
995GEN WB27T11102
995WB18T10470 GE Oven Lead Wire 14 GA Green
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
