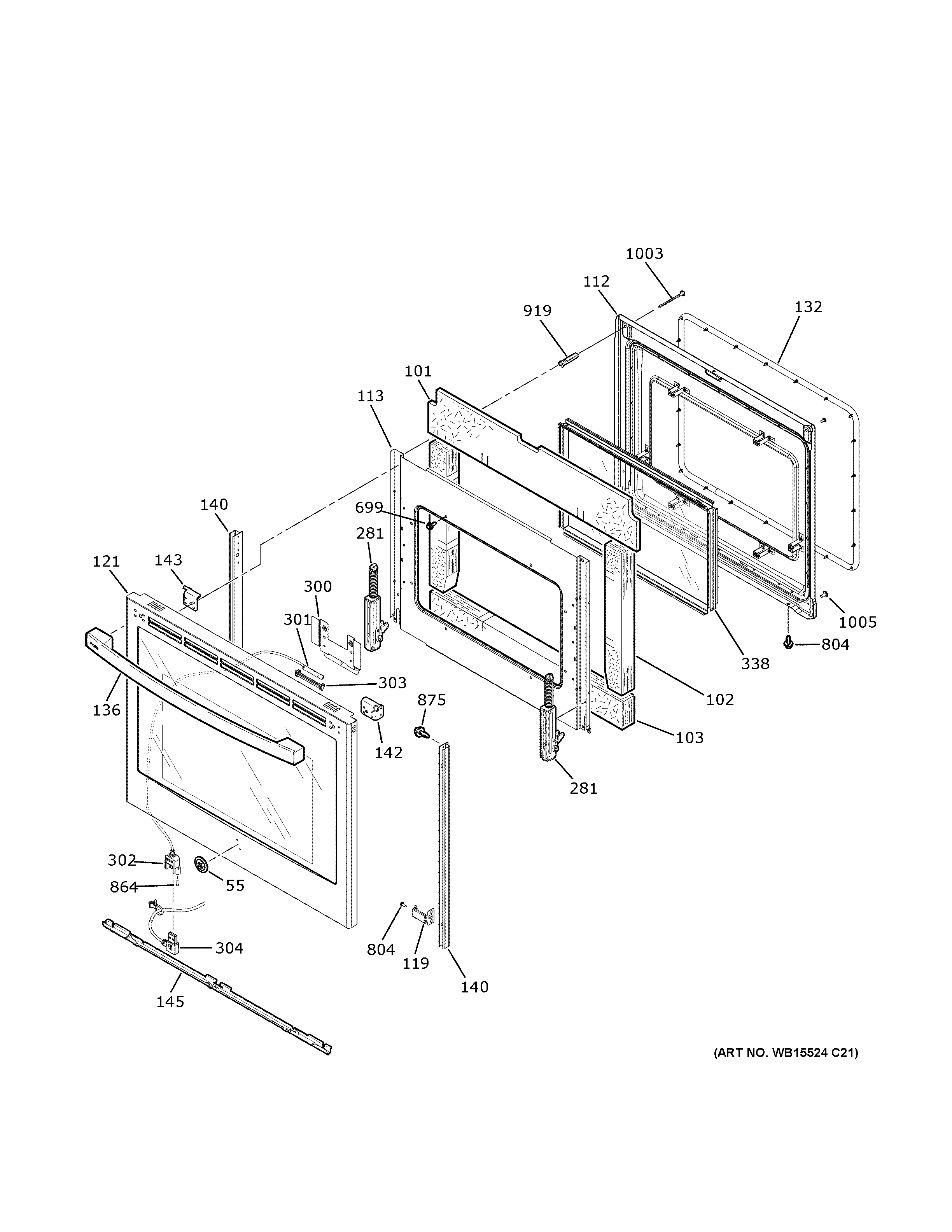

PHS93XYP7FS DOOR

Products

Position	Product
55	WB02X29479 GE Oven Badge Assembly
101	INSULATION DOOR
102	WB35T10135 GE Oven Door Insulation
103	WB35T10255 GE Oven Insulation Door
112	WB55T10203 GE Oven Door Liner Assembly (Black)
113	WB56T10178 GE Oven Door Insulation Retainer
119	WB02X28578 GE Door Glass Bracket
121	OUTER DOOR-STAINLESS
132	WB35X30048 GE Oven Door Gasket
136	HANDLE & ENDCAP ASM (SS)
140	WB56T10287 GE Oven Door Side Frame (Black)
142	WB34X42670 GE Left Hand Door Handle Bracket
143	WB34X42027 GE Right Hand Door Trim Bracket
145	DOOR GAP FILLER
281	WB10T10070 GE Oven Door Hinge
300	BRACKET CAMERA
301	CAMERA OVEN
302	HARNESS WIRE CAMERA DOOR
303	FRAME CAMERA MOUNT
304	CAMERA WIRE HARNESS
338	WB56T10105 GE Oven Inner Window Assembly
699	WB1M1 GE Oven Screw
804	WB1K5157 GE Oven Black Screw
864	SCREW 6-32 FLT-10 1/4
875	WH2X930 GE Screw
919	WB02X38986 GE Spacer
1003	WB02X24268 GE Oven Screw 10-32 CA TRT15
1005	WB01T10008 GE Oven Screw 10-32
