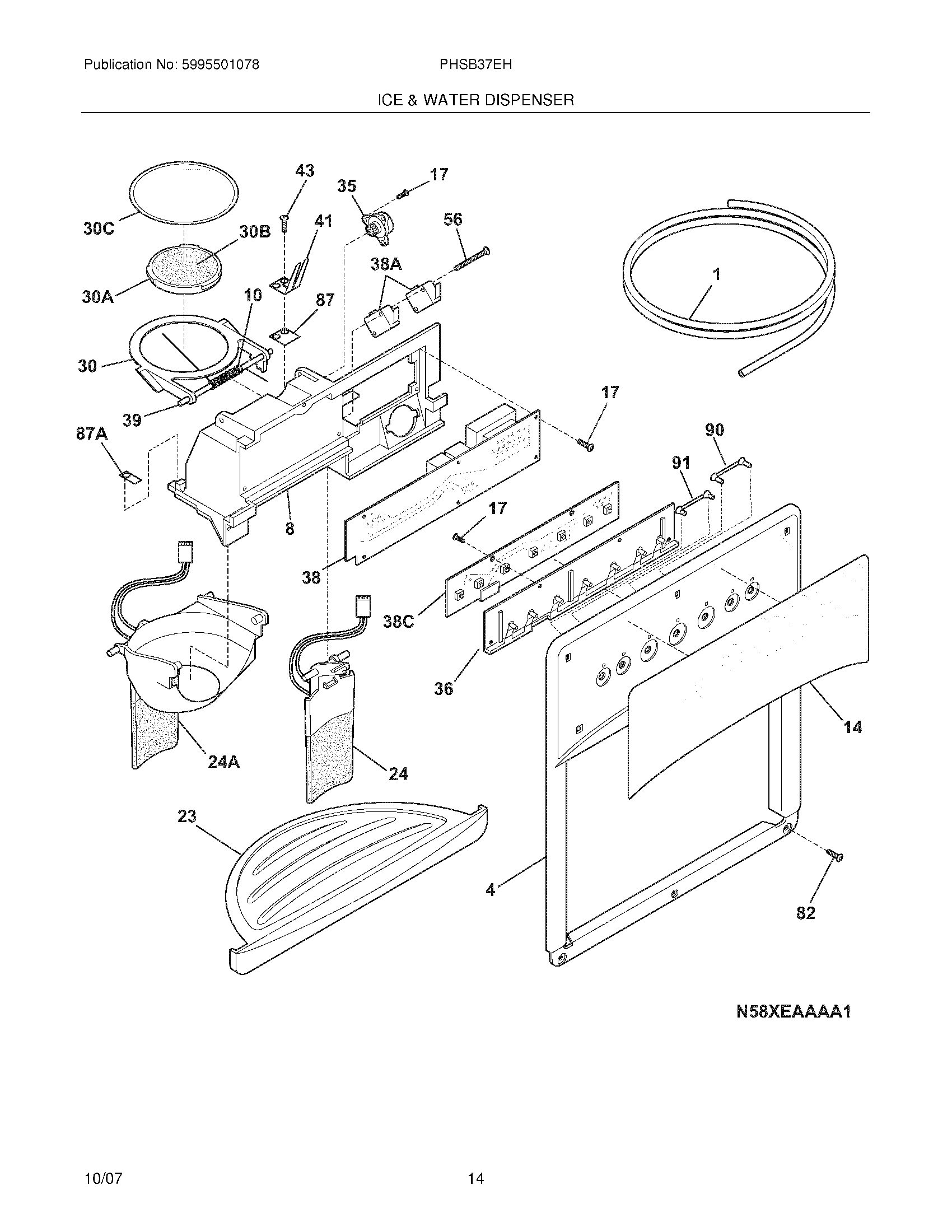

PHSB37EHSB3 15 – ICE & WATER DISPENSER

Products

PositionProduct
NI218976418 Frigidaire Refrigerator Water Inlet Tube
NI218515403 Frigidaire Refrigerator Clip-Grille
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI241850615 Frigidaire Ice Maker Fill Tube Assembly
NI240561701 Frigidaire Refrigerator Seal
NI218976419 Frigidaire Refrigerator Tube
NIWCI 241686201
1218976409 Frigidaire Refrigerator Water Tube
4WCI 241678710
8WCI 241680504
10241688901 Frigidaire Refrigerator Torsion Spring
14WCI 241611216
17241679801 Frigidaire Screw
23241649003 Frigidaire Refrigerator Drip Tray
24241685704 Frigidaire Refrigerator Actuator
24A241682304 Frigidaire Refrigerator Actuator-Ice
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
35241689301 Frigidaire Refrigerator Rotary Damper
36WCI 241680301
38A241689106 Frigidaire Refrigerator Micro Switch
38CWCI 241680001
38241527601 Frigidaire Refrigerator Board Switch
38CWCI 241708309
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87241688302 Frigidaire Refrigerator Bearing Plate
87A241688301 Frigidaire Refrigerator Bearing Plate
90WCI 241680201
91WCI 241680101
