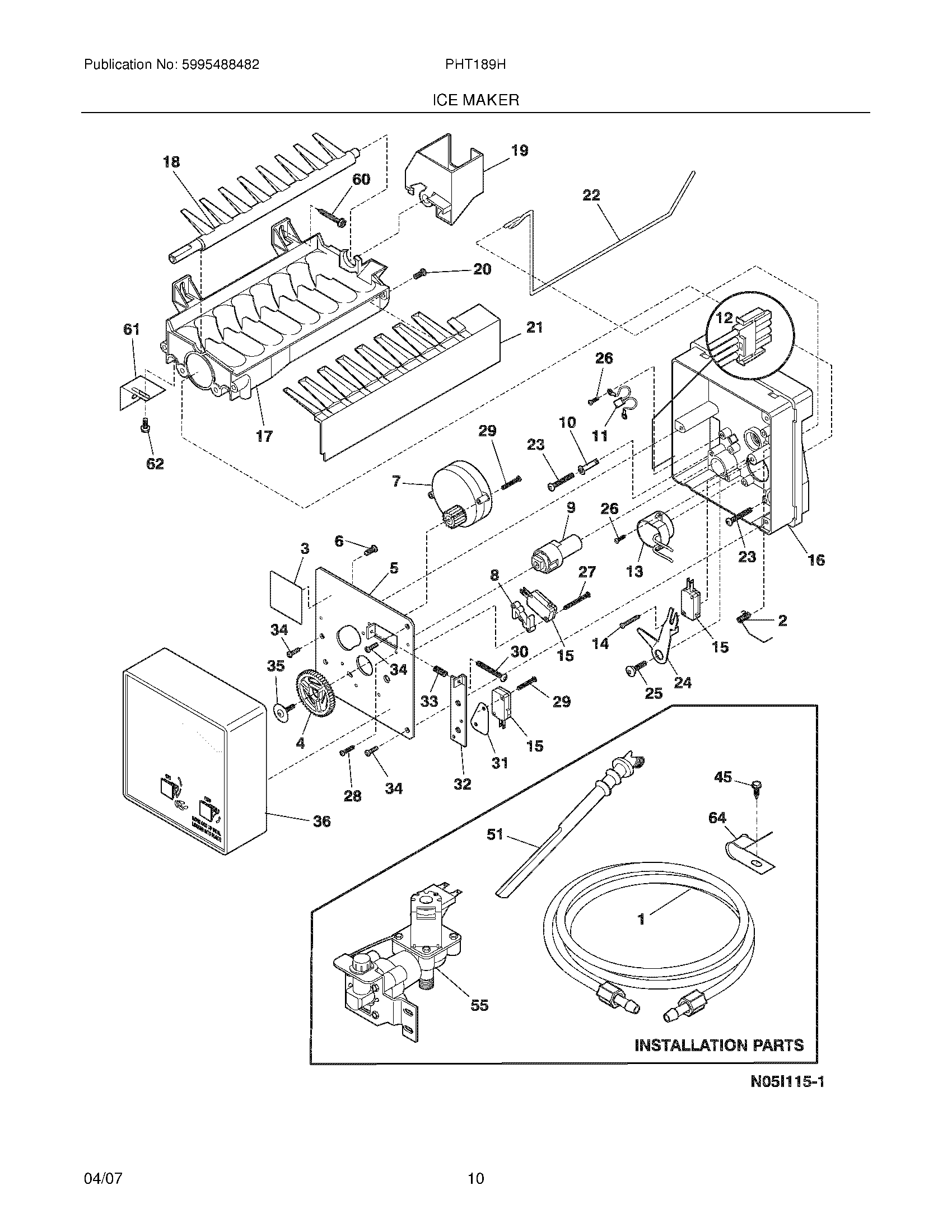

PHT189HKM2 11 – ICE MAKER

Products

Position	Product
NI	240561701 Frigidaire Refrigerator Seal
NI	5304456690 Frigidaire LABEL
NI	5304445223 Frigidaire SPRING BEAM
NI	5304456689 Frigidaire Refrigerator Washer
NI	5304456692 Frigidaire Refrigerator Washer
NI	241798231 Frigidaire Refrigerator Ice Maker Assembly
NI	5304456693 Frigidaire Refrigerator Nut
NI	WCI 241642601
NI	Adapter-water supply,nut & sleeve ,
NI	WCI 5304456688
1	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 5304456650
3	5304456657 Frigidaire Ice Maker Label
4	5304469403 Frigidaire Gear
5	5304456659 Frigidaire Refrigerator Plate-Mounting
6	WCI 5304456691
8	WCI 5304456661
9	WCI 5304456662
11	WCI 5304456663
12	5304456875 Frigidaire Refrigerator Wiring Harness
13	5304456665 Frigidaire Refrigerator Thermostat
14	WCI 5304456666
15	5304456667 Frigidaire Refrigerator Micro Switch
16	5304456668 Frigidaire Refrigerator Support
18	WCI 5304456670
20	5304455677 Frigidaire Screw
22	WCI 5304456673
23	5304456674 Frigidaire Screw
24	5304456675 Frigidaire Refrigerator Lever Arm
25	WCI 5304456676
26	5304455680 Frigidaire Refrigerator Screw
27	WCI 5304456677
28	5304456660 Frigidaire Screw
29	5304456678 Frigidaire Screw
30	5304456679 Frigidaire Timing Adjustment Screw
31	WCI 5304456680
32	5304456681 Frigidaire Plate-VALVE SWITCH
33	WCI 5304456682
34	241679901 Frigidaire Refrigerator Screw
35	5304456684 Frigidaire Screw
36	WCI 5304456685
45	5304455650 Frigidaire Refrigerator Screw
51	241796405 Frigidaire Refrigerator Fill Water Tube
55	ICE MAKER WATER VALVE
60	218362501 Frigidaire Refrigerator Screw
61	218721500 Frigidaire Refrigerator Bracket-Leveling
62	WCI 5304456687
64	5304455846 Frigidaire Refrigerator Clamp
