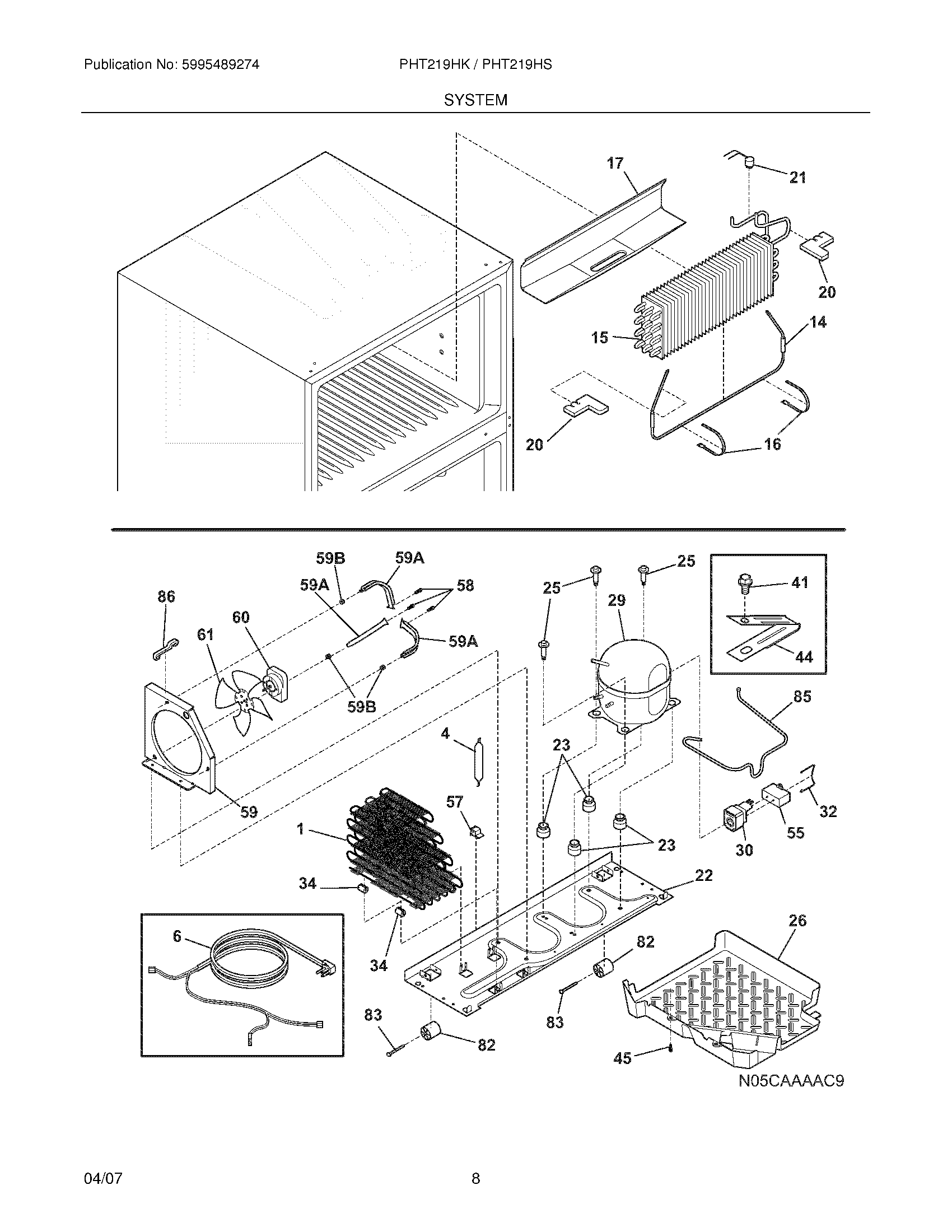

PHT219HKM3 09 – SYSTEM

PHT219HKM3 09 – SYSTEM

Written by

in

PHT219HKM3 09 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
NIWCI 241566801
NI5303918330 Frigidaire Refrigerator Heat Exchanger Kit OS1
NIWiring Harness,freezer section ,with light
NIWCI 5304421289
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
15304472169 Frigidaire Refrigerator Condenser Kit
45303305677 Frigidaire Replacement Filter Dryer Filters
6241872701 Frigidaire Refrigerator Wiring Harness
14240356217 Frigidaire Refrigerator Defrost Heater
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20241551902 Frigidaire Refrigerator Insulation Block
215303918202 Frigidaire Refrigerator Defrost Thermostat
22WCI 241602010
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 240491503
26241697603 Frigidaire Defrost Pan
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
305304491562 Frigidaire Refrigerator Starter Kit
32WCI 241718801
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58241953902 Frigidaire Refrigerator Screw
59BWCI 240346601
59A240346501 Frigidaire Refrigerator Support Bracket
59241946105 Frigidaire Refrigerator Condenser Shroud
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
85WCI 240346201
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
