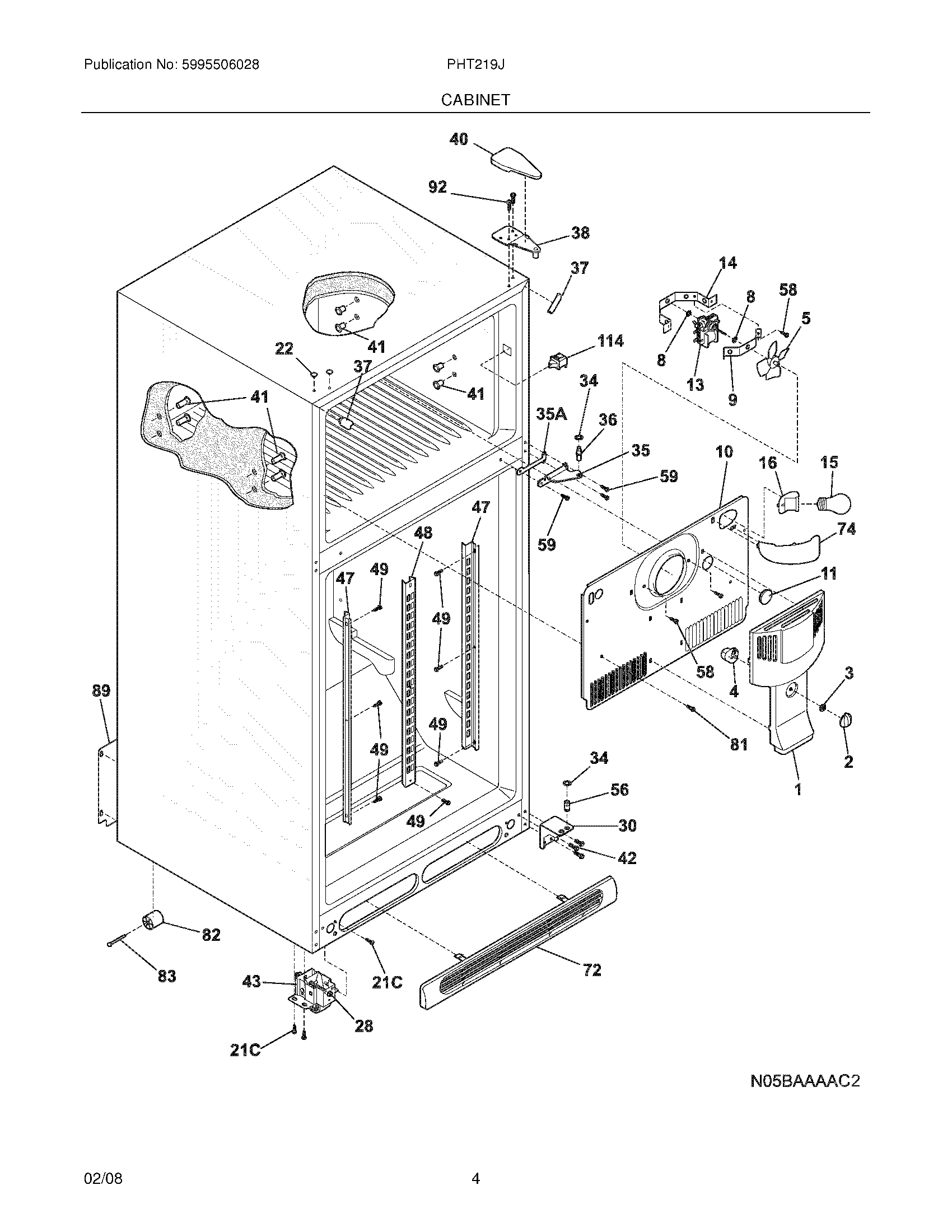

PHT219JKM0 05 – CABINET

PHT219JKM0 05 – CABINET

Written by

in

PHT219JKM0 05 – CABINET

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
NI	240568606 Frigidaire Refrigerator Coil Cover Seal
NI	Wiring Harness,freezer section ,with light
NI	215474201 Frigidaire Refrigerator Washer
NI	241500303 Frigidaire Refrigerator Screw
1	WCI 240355402
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240313611
11	5303208309 Frigidaire Refrigerator Plug Hole
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	5304511738 Frigidaire Refrigerator Light Bulb
16	218906802 Frigidaire Light Lamp Socket
21C	218252201 Frigidaire Refrigerator Screw
22	215774922 Frigidaire Refrigerator Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313802 Frigidaire Refrigerator Center Hinge Bracket
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	WCI 240337614
38	240313703 Frigidaire Refrigerator Hinge
40	WCI 240354405
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
47	WCI 218233301
48	WCI 241566901
49	218362501 Frigidaire Refrigerator Screw
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	WCI 241839409
74	WCI 240354302
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	240505801 Frigidaire Light Switch
