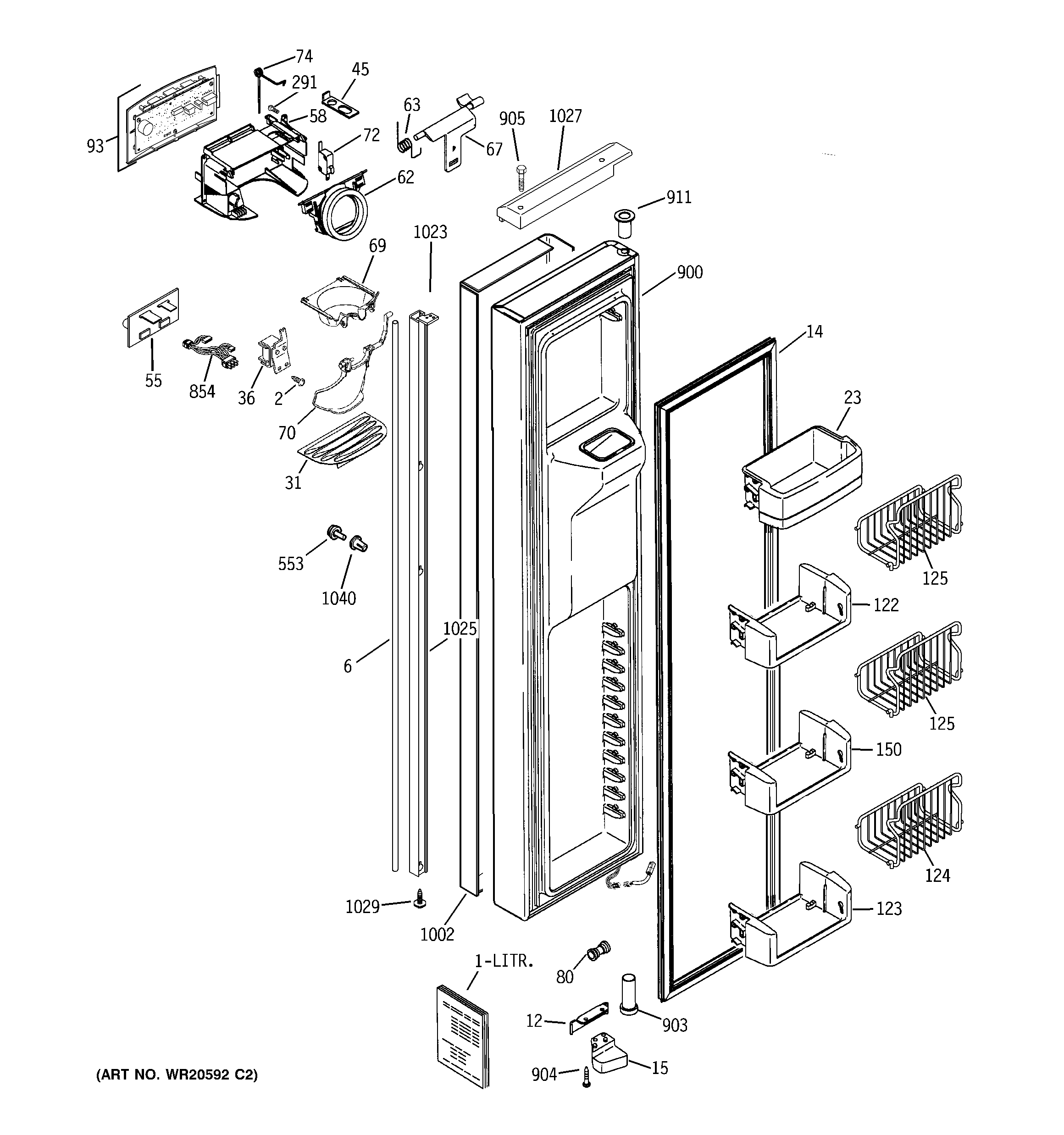

PIE23VGXGFSV FREEZER DOOR

PIE23VGXGFSV FREEZER DOOR

Written by

in

PIE23VGXGFSV FREEZER DOOR

Products

PositionProduct
1GEN 31-46245
1GEN 49-60565-1
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6WR12X10974 GE Refrigerator Soft Touch Handle Insert
12WR02X13425 GE Refrigerator Door Stop
14GEN WR24X10260
15WR02X10780 GE Refrigerator Cam Closure
23GEN WR71X10355
31WR17X12625 GE Refrigerator Recessed Grille
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X12496 GE Refrigerator Housing Shield Dispenser
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70WR17X12494 GE Refrigerator Paddle Ice Dispenser
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X10953 GE Refrigerator Dispenser Control
123GEN WR71X10358
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
150WR71X10256 GE Refrigerator Module Support
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
553GEN WR01X10416
854WR23X10665 GE Dispenser Recess Harness
900GEN WR78X12767
900GEN WR78X12455
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
905WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
911WR01X10956 GE Door Thimble
1002GEN WR99X10102
1023GEN WR17X10943
1025GEN WR12X10443
1027GEN WR17X10946
1029GEN WR01X10151
1040WR02X12266 GE Fastener
