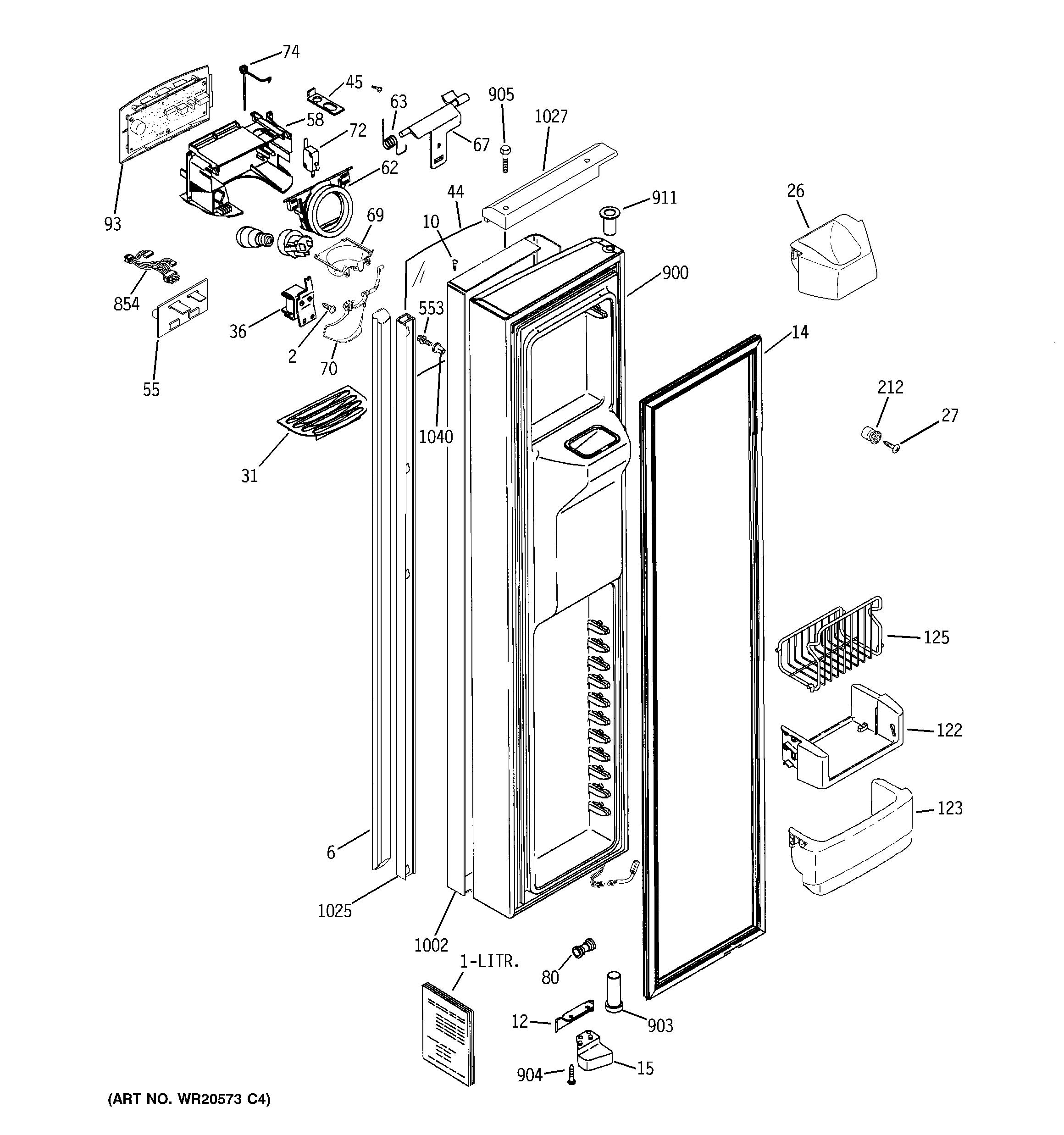

PJU25YGXAFSV FREEZER DOOR

PJU25YGXAFSV FREEZER DOOR

Written by

in

PJU25YGXAFSV FREEZER DOOR

Products

PositionProduct
1GEN 49-60565-1
1GEN 31-46239
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6WR12X10974 GE Refrigerator Soft Touch Handle Insert
10WR01X10065 GE Screw
12WR02X13425 GE Refrigerator Door Stop
14GEN WR24X10233
15WR02X10780 GE Refrigerator Cam Closure
26WR71X10633 GE Refrigerator Ice Guide
27WR01X10857 GE Scr 8-18 Ab Flp 7/8 S
31WR17X12133 GE Refrigerator Grille Recess Stainless Steel
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
44WR17X12110 GE Refrigerator Recessed Overlay
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X34385 GE Refrigerator Dispenser Housing Shield Assembly
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70GEN WR17X12208
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X13342 GE Refrigerator Union Connector
93GEN WR55X10970
122WR71X10256 GE Refrigerator Module Support
123WR71X10629 GE Freezer Fixed Shelf Module
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
212WR02X10689 GE Refrigerator Base Grille Grommet
553GEN WR01X10416
854WR23X10665 GE Dispenser Recess Harness
900GEN WR78X12454
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
905WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
911WR01X10956 GE Door Thimble
1002GEN WR99X10140
1025GEN WR12X10738
1027GEN WR17X11909
1040WR02X12266 GE Fastener
