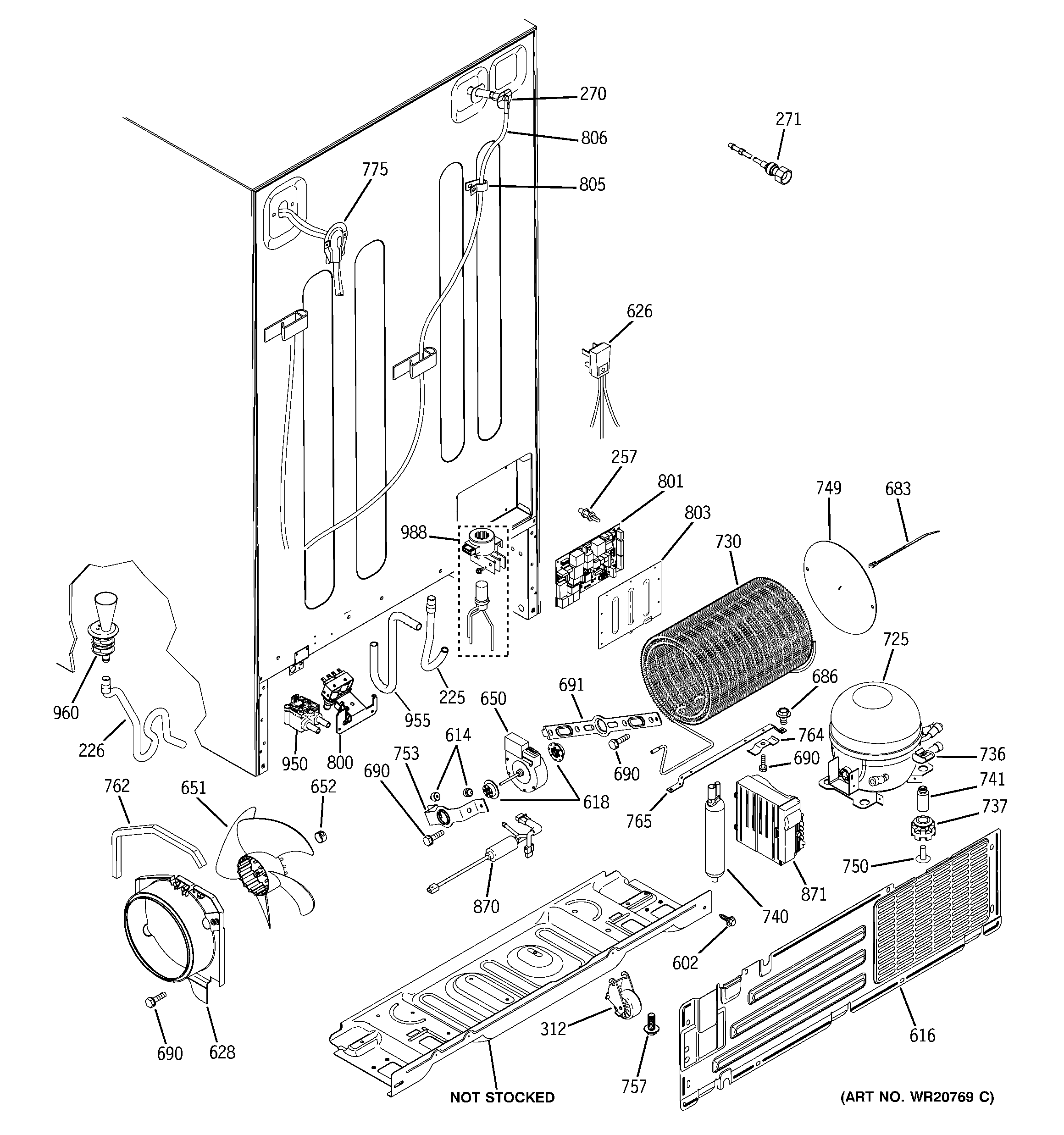

PJU25YGXAFSV SEALED SYSTEM & MOTHER BOARD

PJU25YGXAFSV SEALED SYSTEM & MOTHER BOARD

Written by

in

PJU25YGXAFSV SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
225TUBE DRAIN
226WR02X11848 GE Drain Hose Tube
257WR02X10663 GE Refrigerator Standoff
270WR2X8474 GE Fill Tube
271WR49X10182 GE Refrigerator Service Kit Water Line
312WR02X12000 GE Refrigerator Mobility Wheel S Kit Assembly
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
614BUMPER
616GEN WR82X10100
618WR02X11331 GE Refrigerator Grommet
626GEN WR23X10696
628WR17X12668 GE Refrigerator Condenser Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725COMPRESSOR VCC3 REPL. KI
730WR84X10022 GE Refrigerator Condenser Replacement Kit
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X10796 GE Refrigerator Water Line Cover
800WR57X10089 GE Water Valve
803WR02X12025 GE Main Board Enclosure
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11896 GE Refrigerator Plastic Tube
870WR23X10491 GE Refrigerator Harness Inverter Common
871WR55X20106 GE Control Board
950WR57X10069 GE Refrigerator Flow Meter
955WR02X13312 GE Refrigerator Jumper Tube Flow Meter
960GEN WR17X12746
988WR57X10053 GE Refrigerator Valve Assembly
