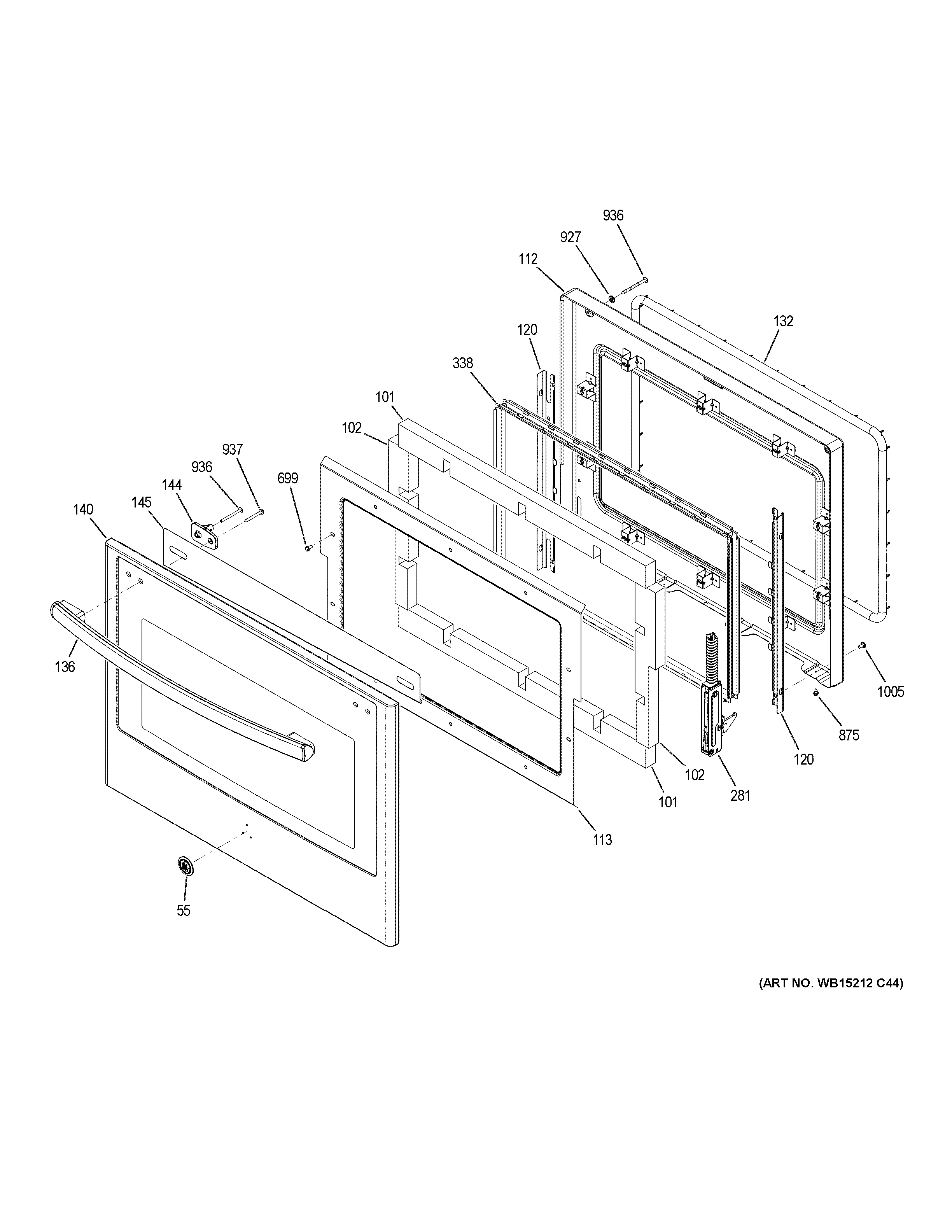

PK7000BL7TS DOOR

Products

Position	Product
55	WB02X29637 GE Oven Badge Assembly
102	INSULATION DR SIDE
112	WB63X32817 GE Oven Door Liner Kit
113	WB34T10152 GE Oven Insulation Retainer
120	LINER SUPPORT
132	WB35X34867 GE Oven Door Gasket
136	HANDLE AND END CAP ASM
140	DOOR GLASS AND TRIM ASM TS
144	WB02T10603 GE Oven Support Handle
145	WB34T10143 GE Oven Deflector Door
281	WB10X30578 GE Oven Left Door Hinge
281	WB10X30577 GE Oven Right Door Hinge
338	WB56X27502 GE Oven Inner Door Glass
699	WB1M1 GE Oven Screw
875	WH2X930 GE Screw
927	WB1X119D GE Oven Range Washer
936	WB01T10131 GE Oven Screw 10-32 T20 2.5 In
937	WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
1005	WB01T10008 GE Oven Screw 10-32
