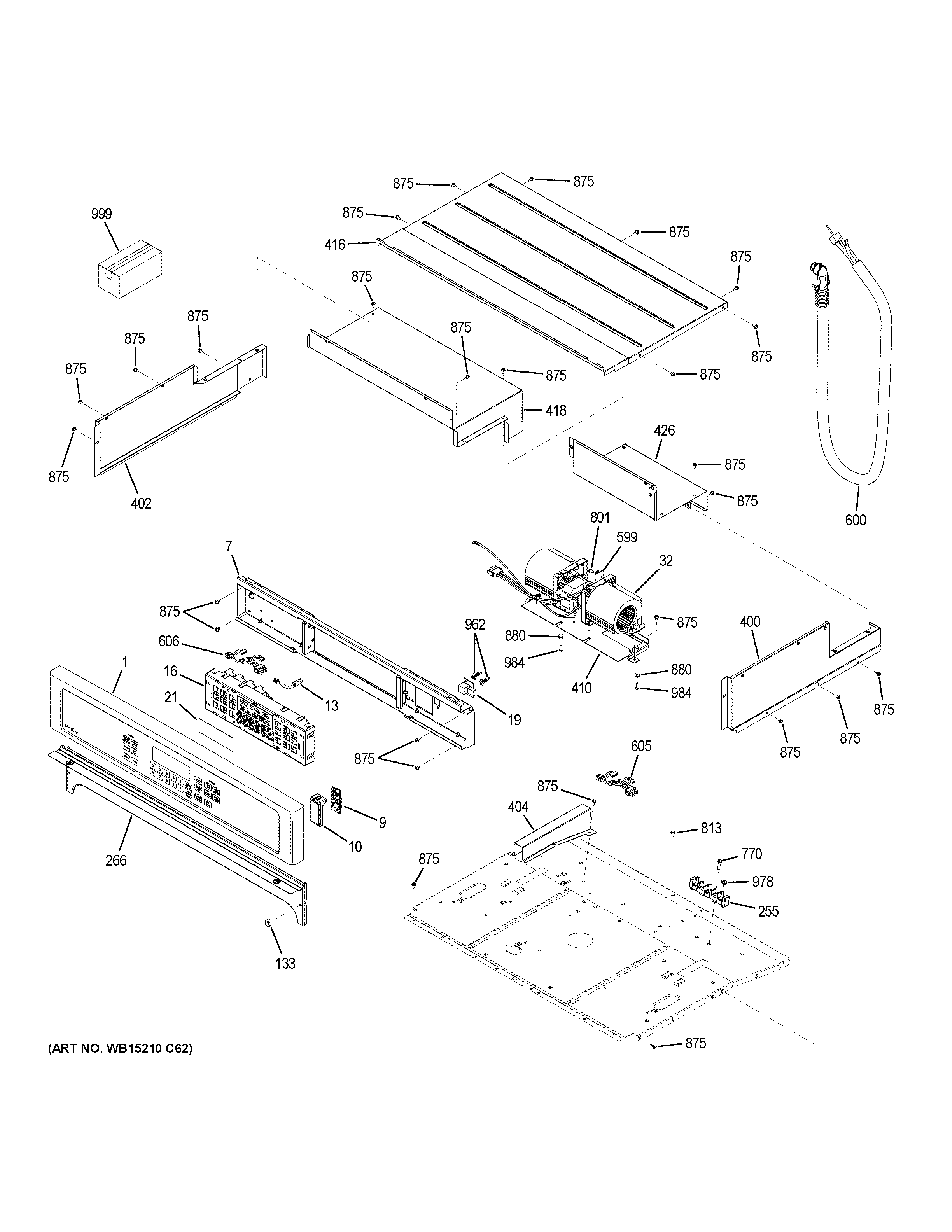

PK7000FM2DS CONTROL PANELadmin2025-04-26T09:53:24+00:00PK7000FM2DS CONTROL PANEL ProductsPositionProduct1DARK SLATE CONTROL PANEL ASM1LABEL WIRE DIAGRAM7WB07T10729 GE Oven Control Mounting Panel9WB27X33353 GE Wi-Fi Module Kit10WB02X20265 GE Transceiver Housing13WB18X30704 GE Jumper16WB27X29604 GE Oven Control T012 White LED19WB27X20933 GE Oven RJ45 Housing Assembly21WB27T11116 GE Clock Display Filter32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper255WB17K10001 GE Oven Block Terminal266WB07T10806 GE Upper Vent Trim400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416COVER TOP FRONT418WB34T10154 GE Rear Top Cover426COVER WIRE REAR599WB27T11463 GE Oven Fan Sensor Board600WB18X35246 GE Conduit Wire SWO600WB18T10581 GE Oven 6 FT Optional Conduit605HARNESS WIRE MAIN606WB18T10552 GE Wire Extension Harness770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw875WH2X930 GE Screw880WB01T10128 GE Grommet962WB02T10093 GE Oven Standoff Printed Circuit Board978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM OWNERS MANUAL999PM MANUAL MINI & WD ASM999PM INSTALL INSTRUCTIONS999PM WI FI INSTRUCTIONS999WB02T10303 GE Cleaner Lubricant999PM INSTALL INSTRUCTIONS999MANUAL U&C TIP SHEET999INSTRUCTION INSTALL
