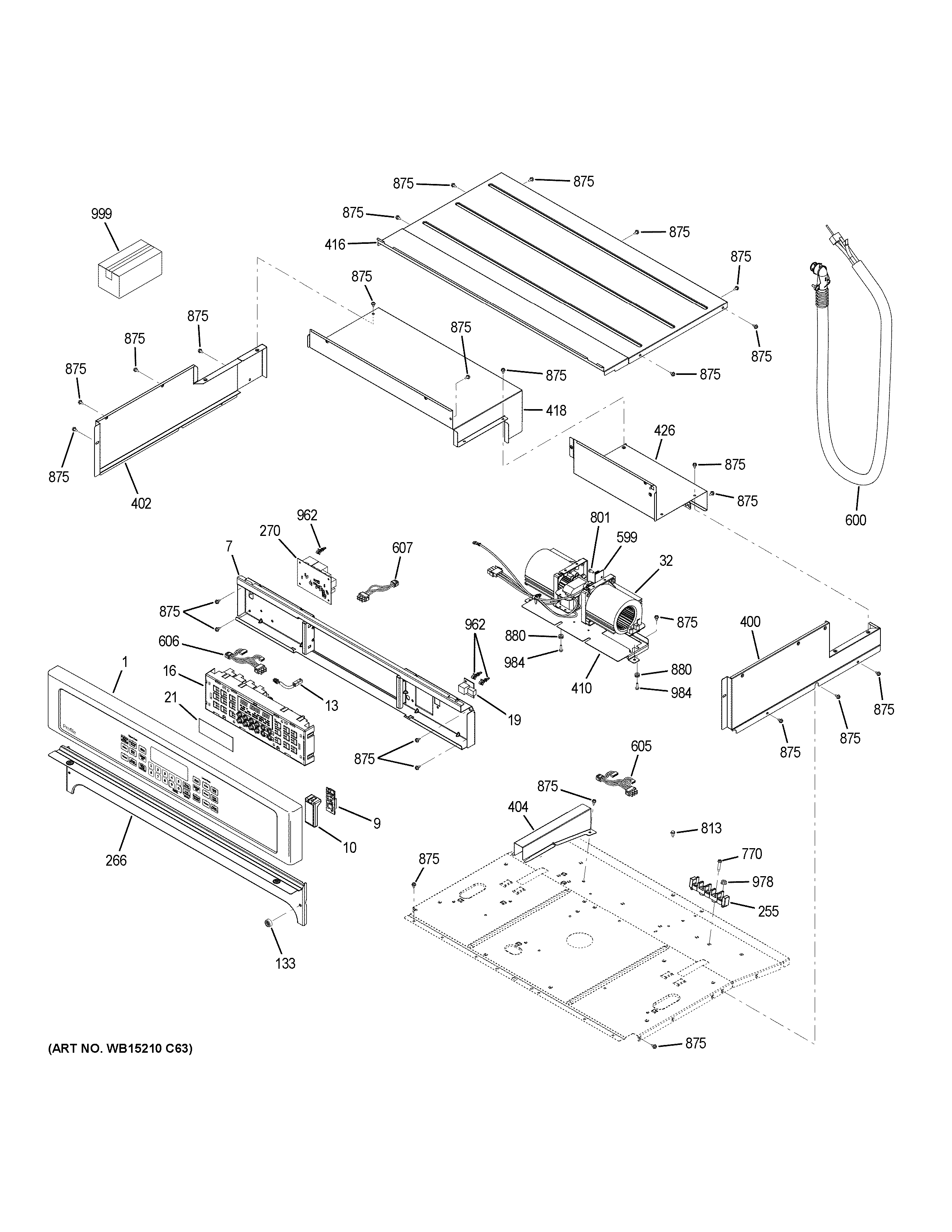

PK7500BL7TS CONTROL PANELadmin2025-04-26T09:51:48+00:00PK7500BL7TS CONTROL PANEL ProductsPositionProduct1WB56X30149 GE Oven Control Panel Assembly1LABEL WIRE DIAGRAM7WB07T10729 GE Oven Control Mounting Panel9WB27X33353 GE Wi-Fi Module Kit10WB02X20265 GE Transceiver Housing13WB18X30704 GE Jumper16WB27X29608 GE Oven Control T012 White LED19WB27X20933 GE Oven RJ45 Housing Assembly21WB27T11116 GE Clock Display Filter32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper255WB17K10001 GE Oven Block Terminal266WB07X20183 GE Oven Upper Trim Vent270WB27X25594 GE Oven Relay Board400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34T10159 GE Oven Top Front Cover418WB34T10154 GE Rear Top Cover426COVER WIRE REAR599WB27T11463 GE Oven Fan Sensor Board600WB18T10574 GE Oven Wire Conduit Assembly600WB18X33486 GE Conduit Wire Assembly605WB18X23819 GE Main Wire Harness606WB18T10552 GE Wire Extension Harness607WB18X31061 GE Oven Latch Wire Harness770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw875WH2X930 GE Screw880WB01T10128 GE Grommet962WB02T10093 GE Oven Standoff Printed Circuit Board978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999MANUAL U&C TIP SHEET999INSTRUCTION INSTALL999WB02T10303 GE Cleaner Lubricant999PM MANUAL MINI & WD ASM999PM OWNERS MANUAL999PM INSTALL INSTRUCTIONS
