PK7500DF1BB CONTROL PANEL

PK7500DF1BB CONTROL PANEL

Written by

in

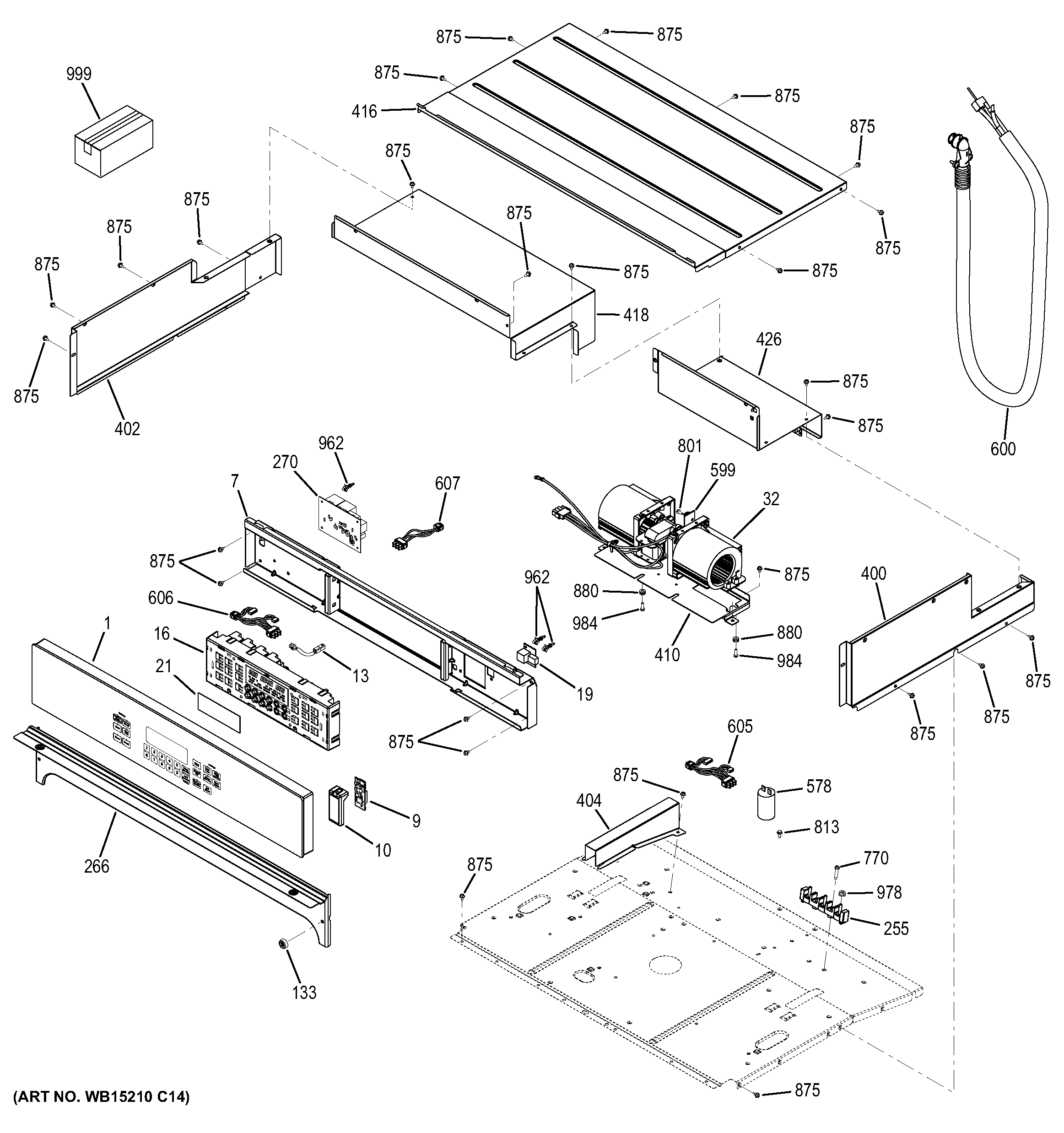

PK7500DF1BB CONTROL PANEL

Products

PositionProduct
1GEN 229C6153P002
1WB07T10758 GE Oven Control Panel and Board
7WB07T10729 GE Oven Control Mounting Panel
9WB27X31514 GE Oven WiFi Module Kit
10WB02X20265 GE Transceiver Housing
13WB18X30704 GE Jumper
16WB27X25352 GE Oven Electric Control Board
19WB27X20933 GE Oven RJ45 Housing Assembly
21WB27T11116 GE Clock Display Filter
32COOLING FAN
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266WB07X20183 GE Oven Upper Trim Vent
270WB27X25594 GE Oven Relay Board
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34T10159 GE Oven Top Front Cover
418WB34T10154 GE Rear Top Cover
426COVER WIRE REAR
578WB24T10147 GE Oven SPDT Light Switch
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10573 GE Oven Wire Assembly Conduit
600WB18T10574 GE Oven Wire Conduit Assembly
605GEN WB18T10592
606WB18T10552 GE Wire Extension Harness
607WB18X20178 GE Latch Wire Harness
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
962WB02T10093 GE Oven Standoff Printed Circuit Board
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999INSTR INSTALL OVN DOOR
999GEN 49-80679
999GEN 49-80678
999GEN 31-10856
999WB02T10303 GE Cleaner Lubricant
999GEN 31-17019
