PK7500DF1BB LOWER OVEN

PK7500DF1BB LOWER OVEN

Written by

in

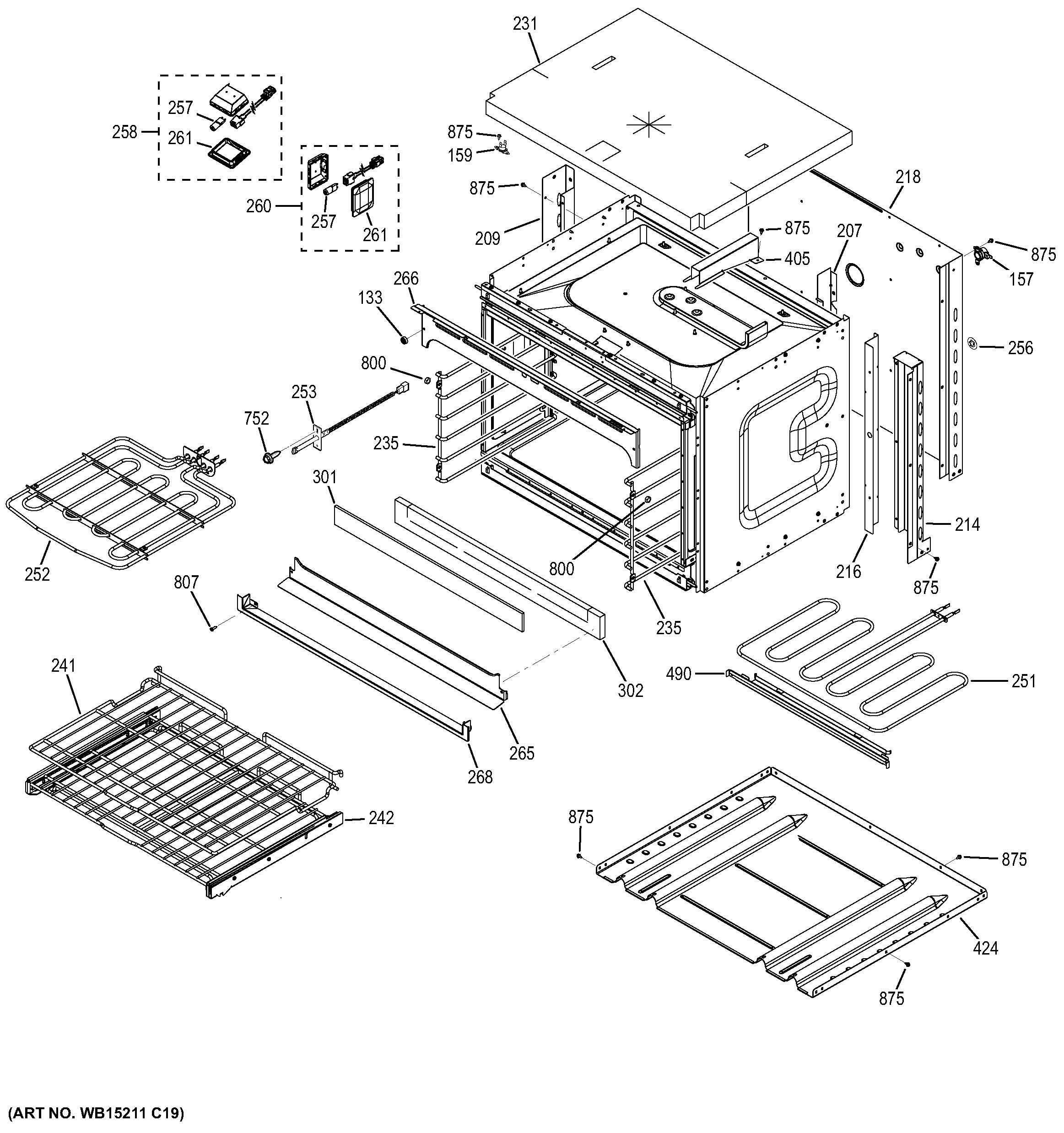

PK7500DF1BB LOWER OVEN

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
159WB24X46907 GE High Limit Switch
207DIVIDER AIR CENTER
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218WB34T10138 GE Lower Rear Duct Cover
231GEN WB35T10267
235WB48X21766 GE Oven Guide Rack Left
235WB48T10106 GE Oven Right Rack Guide
241WB48T10118 GE Oven Flat Rack
242GEN WB48T10112
251WB44T10125 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X20199 GE Oven Halogen Lamp Assembly
260WB25X20200 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
265GEN WB07X20181
266WB07X20183 GE Oven Upper Trim Vent
268WB07T10778 GE Oven Bottom Trim Cabinet
301GEN WB35T10268
302GEN WB35T10269
405WB34T10160 GE Lower Air Channel
424WB34T10155 GE Oven Bottom Air Duct Cover
490WB55T10195 GE Oven Hidden Bake Cover
752WB1K5200 GE Oven Screw 340531
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
