PK7500DF1BB UPPER OVEN

PK7500DF1BB UPPER OVEN

Written by

in

PK7500DF1BB UPPER OVEN

Products

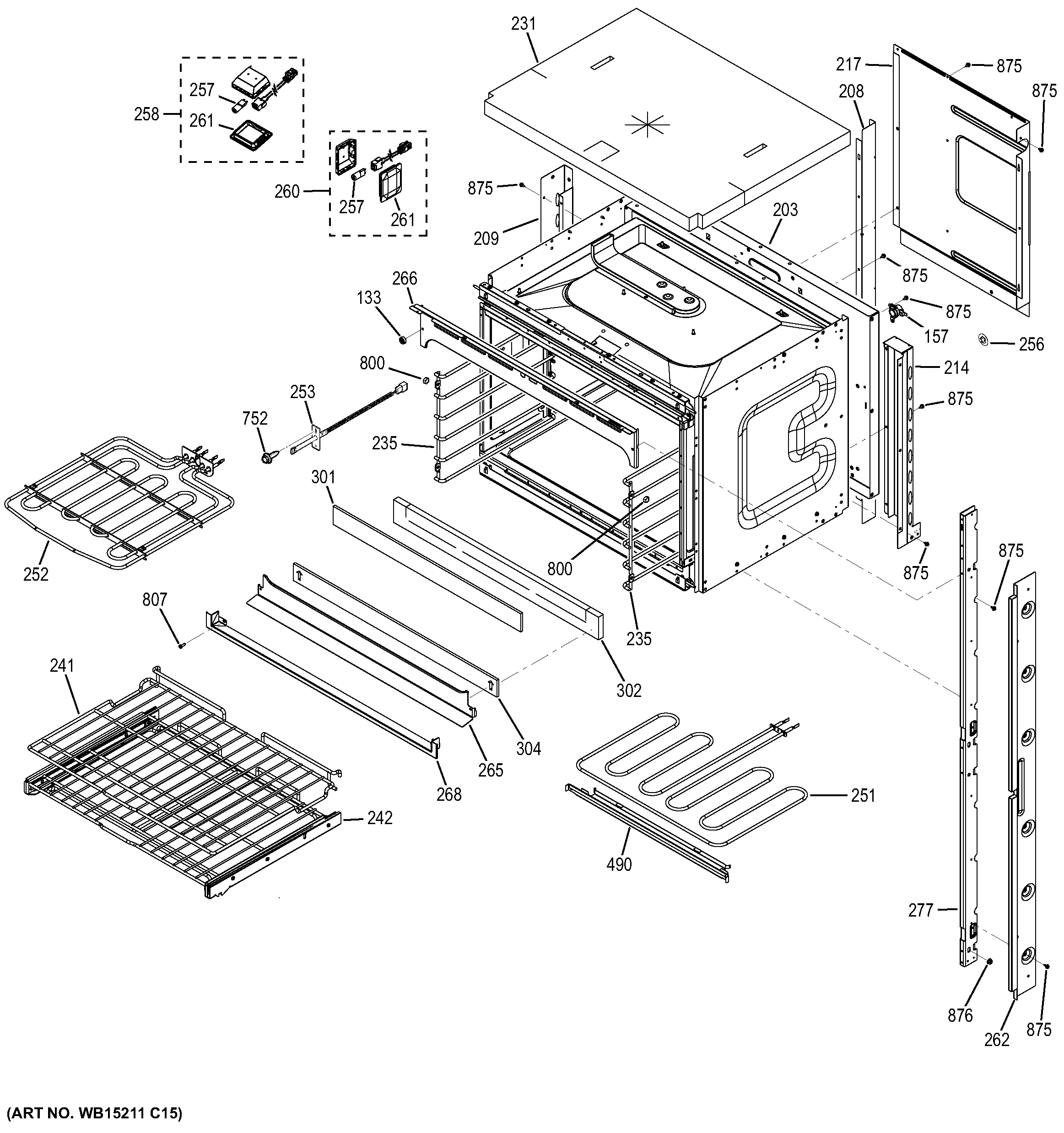

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
208WB34T10140 GE Oven Double Divider Air
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
231GEN WB35T10267
235WB48T10106 GE Oven Right Rack Guide
235WB48X21766 GE Oven Guide Rack Left
241WB48T10118 GE Oven Flat Rack
242GEN WB48T10112
251WB44T10125 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X20199 GE Oven Halogen Lamp Assembly
260WB25X20200 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
262WB07T10744 GE Oven Vertical Side Trim Black
265GEN WB07X20181
266WB07X20183 GE Oven Upper Trim Vent
268WB07T10778 GE Oven Bottom Trim Cabinet
277WB07T10756 GE Oven Right Vertical Brace Black
277WB07X21779 GE Vertical Brace Assembly
301GEN WB35T10268
302GEN WB35T10269
304WB35T10275 GE Bottom Trim Insulation
490WB55T10195 GE Oven Hidden Bake Cover
752WB1K5200 GE Oven Screw 340531
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
