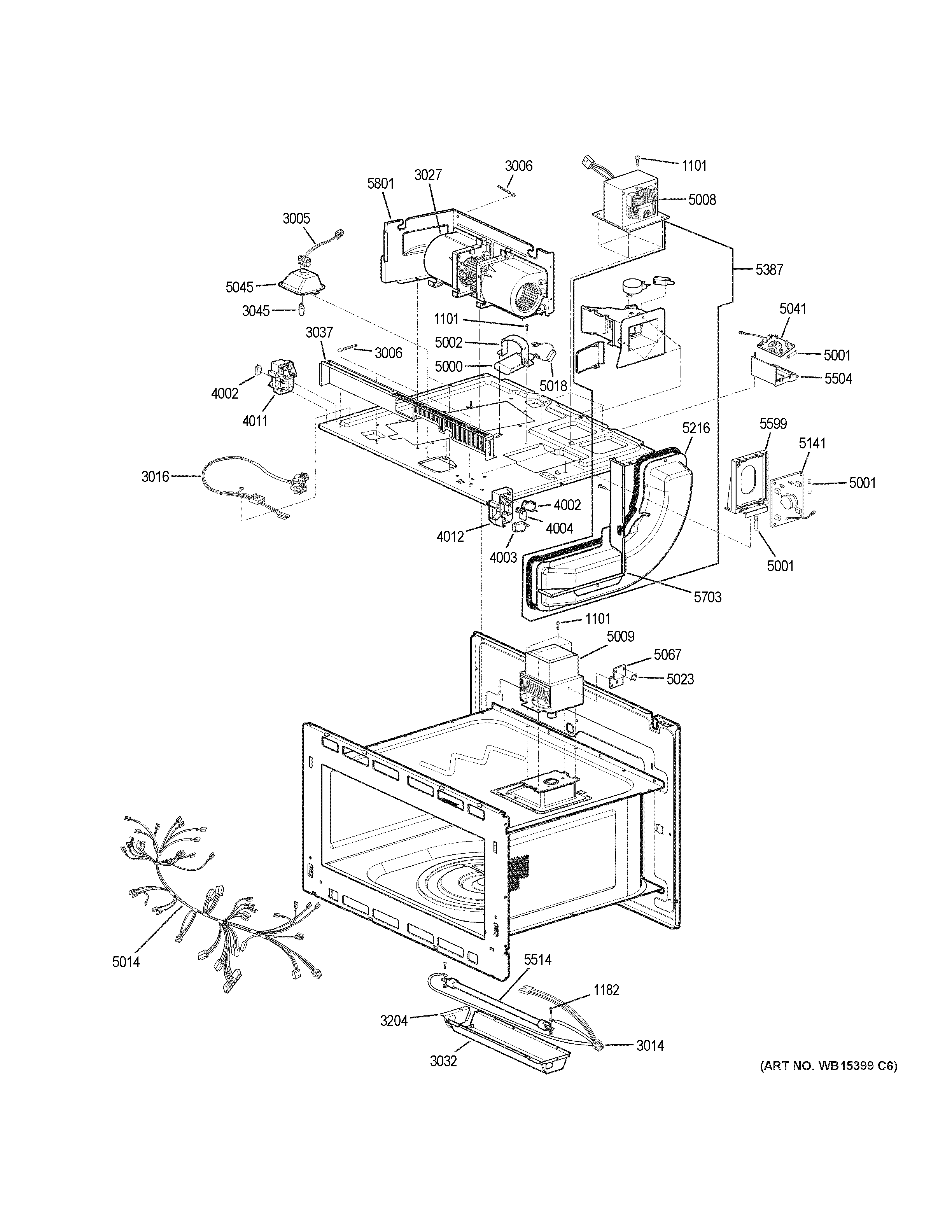

PK7800SK4SS INSULATOR PARTS

PK7800SK4SS INSULATOR PARTS

Written by

in

PK7800SK4SS INSULATOR PARTS

Products

PositionProduct
1101WB02X10745 GE Binding Head Screw
1182WB02X10726 GE Screw
3005WB06X10646 GE Oven Holder Assembly
3006HOLDER WIRE
3014WB18X32597 GE Wire Harness
3016WB18X32611 GE Harness Single
3027WB26X10182 GE Oven Circular Circulation Motor
3032REFLECTOR
3037WB34X32592 GE Microwave Protector
3045HALOGEN LAMP
3204WB02X11223 GE Heater Bracket
4002PRIMARY INTERLOCK SWITCH
4003WB24X25397 GE Oven Interlock Monitor Switch
4004WB02X32588 GE Oven Lever
4011WB10X32573 GE Oven Left Hand Latch Board
4012WB10X32577 GE Oven Right Hand Latch Board
5000WB27X11033 GE Oven High Voltage Capacitor
5001WB27X10928 GE Oven Line Fuse
5002WB02X32593 GE Bracket Capacitor
5008TRANSFORMER HIGH VOLTAGE
5009MAGNETRON
5014WB18X32684 GE Oven Wire Harness
5018DIODE-CABLE
5023WB20X10048 GE Oven Thermostat
5041WB02X35865 GE Noise Filter Board
5045WB34X32583 GE Light Cover
5067WB06X10570 GE Microwave Bracket
5141SURGE BOARD
5216WB34X32594 GE Duct Assembly
5387WB34X32608 GE Oven Duct Assembly
5504SUPPORTER
5514WB44X41528 GE Miraclon Heater
5599WB02X32604 GE Support
5703WB02X32590 GE Barrier Bracket
5801WB02X32599 GE Motor Bracket
