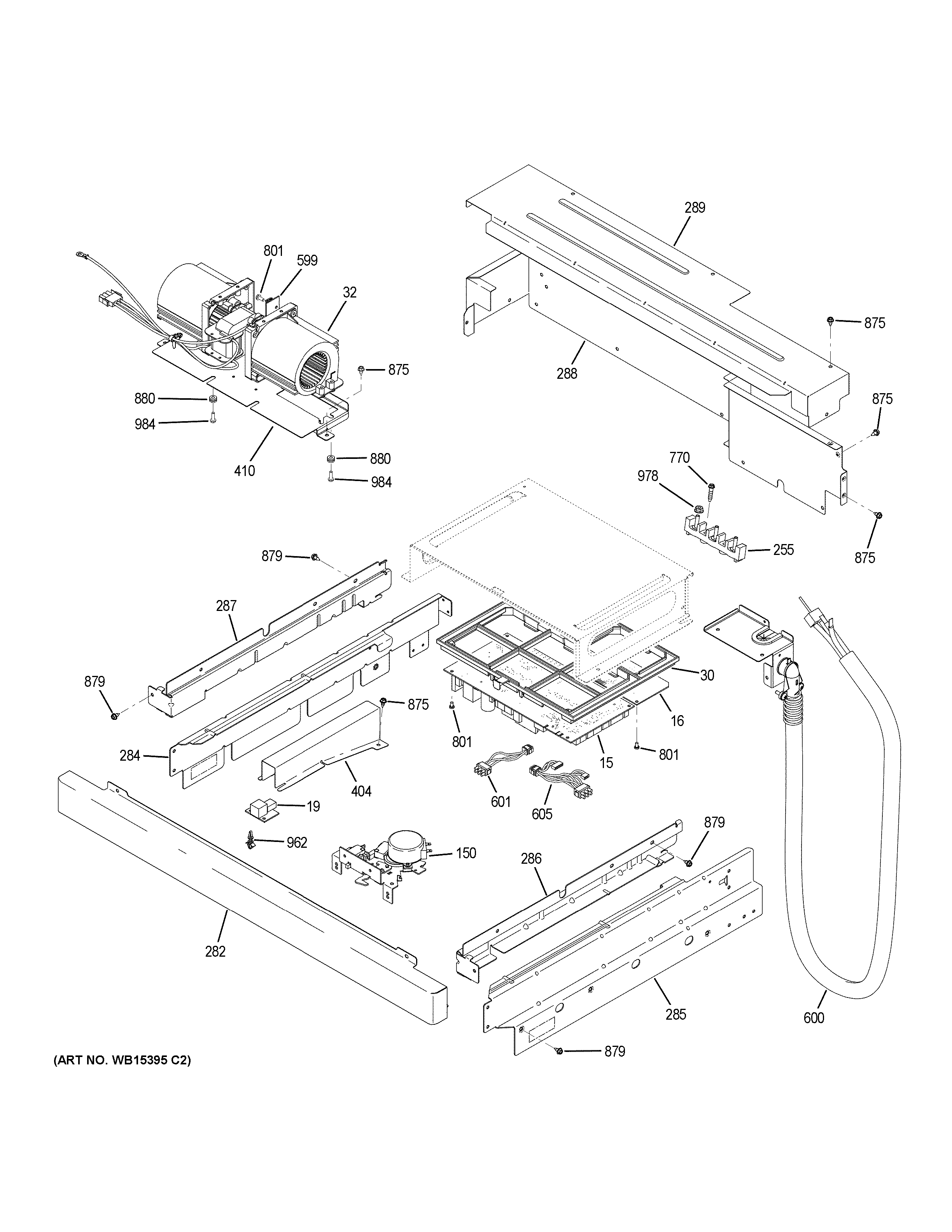

PK7800SK4SS PEDESTAL

Products

Position	Product
15	WB27X27172 GE Oven Control Board
16	WB27X25692 GE Oven Bridge Board
19	WB27X21904 GE Oven RJ45 Connector Board
30	WB02X21902 GE Oven Relay Board Frame
32	WB26X31060 GE Oven Blower Fan
150	LATCH ASM
255	WB17K10001 GE Oven Block Terminal
282	WB07X21941 GE Oven Middle Trim 27 (Stainless Steel)
284	SUPPORT MIDDLE LT MWO 27
285	SUPPORT MIDDLE RT MWO 27
286	SUPPORT SLIDE 27 RH
287	SUPPORT SLIDE 27 LH
288	WB34X21915 GE Rear Cover Housing
289	COVER WIRE TOP
404	WB34T10150 GE Upper Air Vent Channel
410	WB37T10026 GE Oven Upper Fan Mount Bracket
599	WB27T11463 GE Oven Fan Sensor Board
600	WB18X30613 GE Conduit Wire Assembly
600	WB18T10574 GE Oven Wire Conduit Assembly
601	WB18X24081 GE Wire Harness Communication
605	WB18X24082 GE Main Wire Harness
770	WB1K5072 GE Oven Screw
801	WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
875	WH2X930 GE Screw
879	WB1X5904 GE Oven Screw 8-18 BA
880	WB01T10128 GE Grommet
962	WB02T10093 GE Oven Standoff Printed Circuit Board
978	WB1X1259 GE Hex Nut
984	WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
