PK916DR2BB CONTROL PANEL

PK916DR2BB CONTROL PANEL

Written by

in

PK916DR2BB CONTROL PANEL

Products

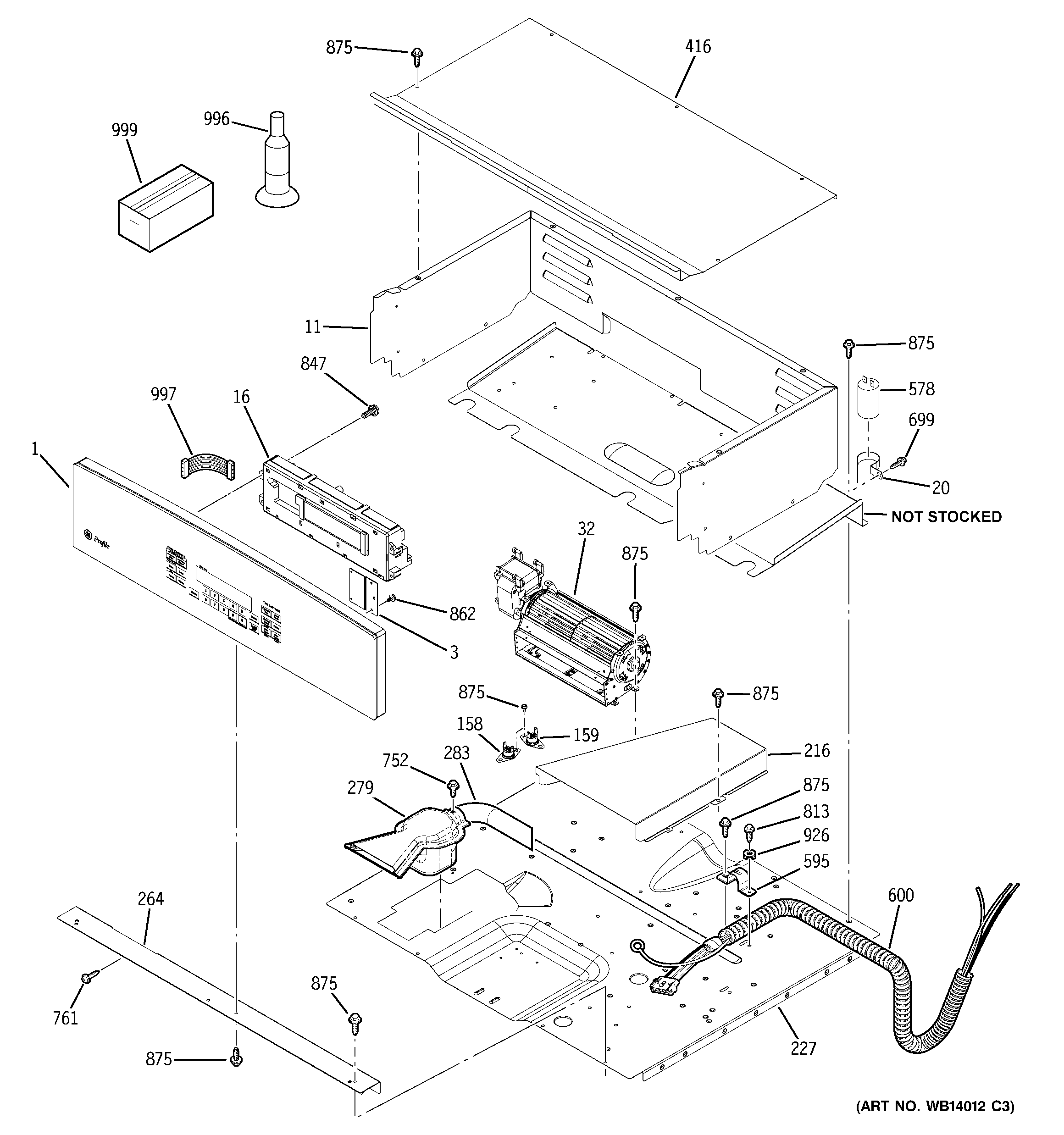

PositionProduct
1GEN WB36T11312
1GEN WB36T11311
1GEN WB36T11310
3GEN WB02T10386
11WB02T10362 GE Fan Housing
16GEN WB27T11292
20WB02T10152 GE Oven Motor Capacitor Bracket
32GEN WB26T10060
158WB24T10144 GE Oven Limit Switch
159WB24T10060 GE Oven Safety Thermostat
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
578WB27T10662 GE Oven Capacitor
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
600WB18T10447 GE Oven Wire Conduit Assembly
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
813WB1X1261 GE Oven Screw
862GEN WB01X1178
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
996WB02T10303 GE Cleaner Lubricant
997WB18T10386 GE Oven Touch Glass Wire Harness
999GEN 31-14800
999INSTR INSTALL OVN DOOR
999GEN 31-10730
999PM MANUAL USE & CARE
