PK956DR3CC LOWER OVEN

PK956DR3CC LOWER OVEN

Written by

in

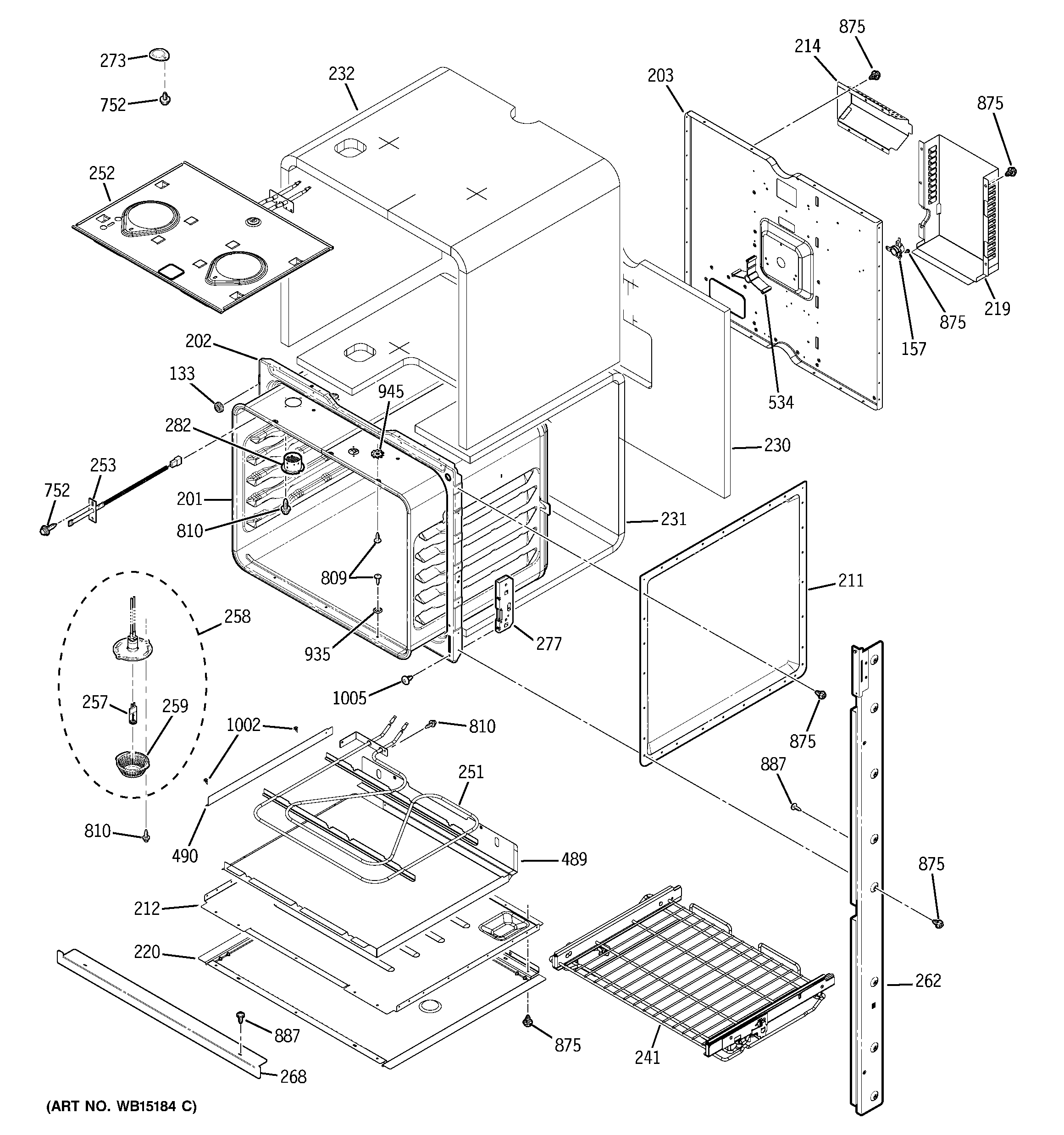

PK956DR3CC LOWER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
157WB24T10082 GE Oven High Limit Upper Switch
201GEN WB63T10158
201GEN WB63T10159
202GEN WB63T10151
203GEN WB63T10124
211WB63T10125 GE Side Insulation Retainer
212WB63T10082 GE Bottom Insulation Retainer
214GEN WB02T10365
219GEN WB02T10364
220GEN WB02T10360
230GEN WB35T10176
231WB35T10174 GE Insulation Top and Bottom
232WB35T10175 GE Insulation Top and Sides
241GEN WB48T10087
251WB44T10109 GE Oven Element Bake Assembly (2100W)
252WB44T10099 GE Oven Broil Element Assembly
253WB21X22134 GE Oven Sensor Assembly
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
262GEN WB07T10558
262WB07T10551 GE Dishwasher Trim Vertical Side Assembly Right
262GEN WB07T10559
262GEN WB07T10638
262GEN WB07T10637
262WB07T10552 GE Trim Vert Sde Assembly 27 Lt
268GEN WB07T10544
268GEN WB07T10547
268WB07T10541 GE Oven Bottom Trim Assembly 27 (BK)
273GEN WB02X8309
277GEN WB10T10083
282WB28T10213 GE Vent Tube Assembly
282WB38X33650 GE Vent Tube
489GEN WB49T10016
490GEN WB49T10017
534GEN WB26T10046
752WB1K5200 GE Oven Screw 340531
809WB1K5162 GE Oven Black Screw
810WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
887GEN WB01T10033
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
