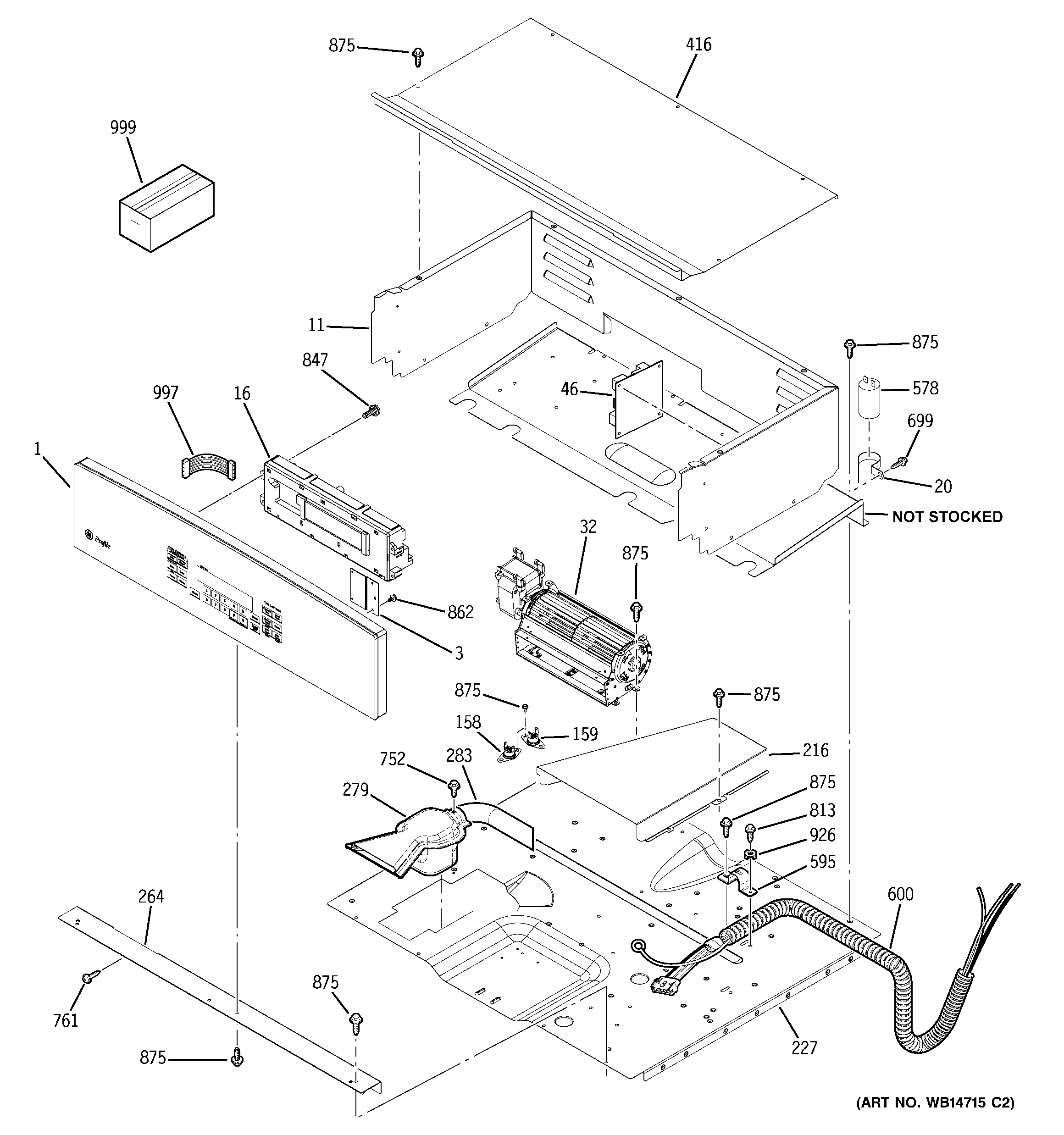

PK956SM4SS CONTROL PANEL

PK956SM4SS CONTROL PANEL

Written by

in

PK956SM4SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11069
3GEN WB02T10386
11WB02T10362 GE Fan Housing
16GEN WB27T10906
20WB02T10152 GE Oven Motor Capacitor Bracket
32GEN WB26T10060
46WB27T10569 GE Oven Range Control Board
158WB24T10080 GE Oven Bake Thermostat
159WB24T10096 GE Oven Limit Bimetal Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10212 GE Inlet Duct Vent
283WB28T10081 GE Lower Oven Vent Inlet Duct
416WB02T10363 GE Electrical Top Cover
578WB27T10662 GE Oven Capacitor
595WB2K5126 GE Oven Condenser Clamp
600WB18T10448 GE Oven Wire Conduit Assembly
600WB18T10225 GE Oven Wire Conduit Assembly
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
862GEN WB01X1178
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
997WB18T10371 GE Oven Ribbon Connector GLS Touch
997WB18T10342 GE Oven Logic/Display Harness
999GEN 31-14535
999GEN 31-10730
999GEN 49-80599
999INSTR INSTALL OVN DOOR
