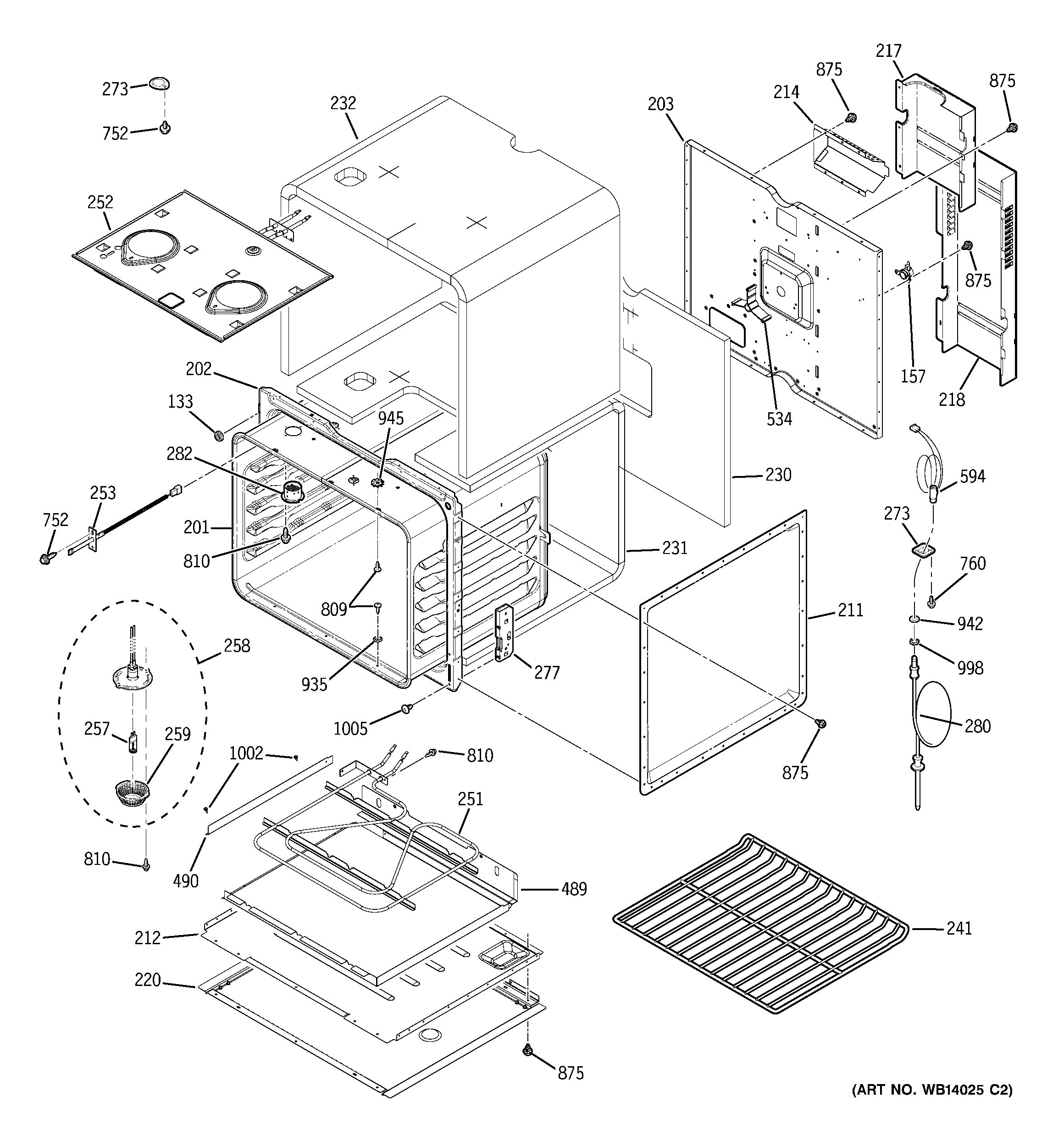

PK956WM5WW UPPER OVEN

PK956WM5WW UPPER OVEN

Written by

in

PK956WM5WW UPPER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
201WRAPPER OVN CAV ASM UPR
201WB63T10127 GE Oven Wrapper CAV Assembly
202WB63T10123 GE Front Frame
203GEN WB63T10124
211WB63T10125 GE Side Insulation Retainer
212WB63T10082 GE Bottom Insulation Retainer
214GEN WB02T10365
217WB02T10357 GE Upper Right Wire Cover
218GEN WB02T10361
220GEN WB02T10360
230GEN WB35T10176
231WB35T10174 GE Insulation Top and Bottom
232WB35T10175 GE Insulation Top and Sides
241WB48T10060 GE Oven Rack
251WB44T10109 GE Oven Element Bake Assembly (2100W)
252WB44T10099 GE Oven Broil Element Assembly
253WB21X22134 GE Oven Sensor Assembly
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
273GEN WB02X8309
277GEN WB10T10076
280WB20T10024 GE Oven Thermistor Probe
282WB38X33650 GE Vent Tube
282WB28T10213 GE Vent Tube Assembly
489GEN WB49T10016
490GEN WB49T10017
534GEN WB26T10046
594GEN WB18T10397
752WB1K5200 GE Oven Screw 340531
760WB1X500D GE Oven Screw Package
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB18T10371 GE Oven Ribbon Connector GLS Touch
998WB1X5572 GE Oven Nut
998WB18T10342 GE Oven Logic/Display Harness
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
