PKD7000FN2DS UPPER DOOR

PKD7000FN2DS UPPER DOOR

Written by

in

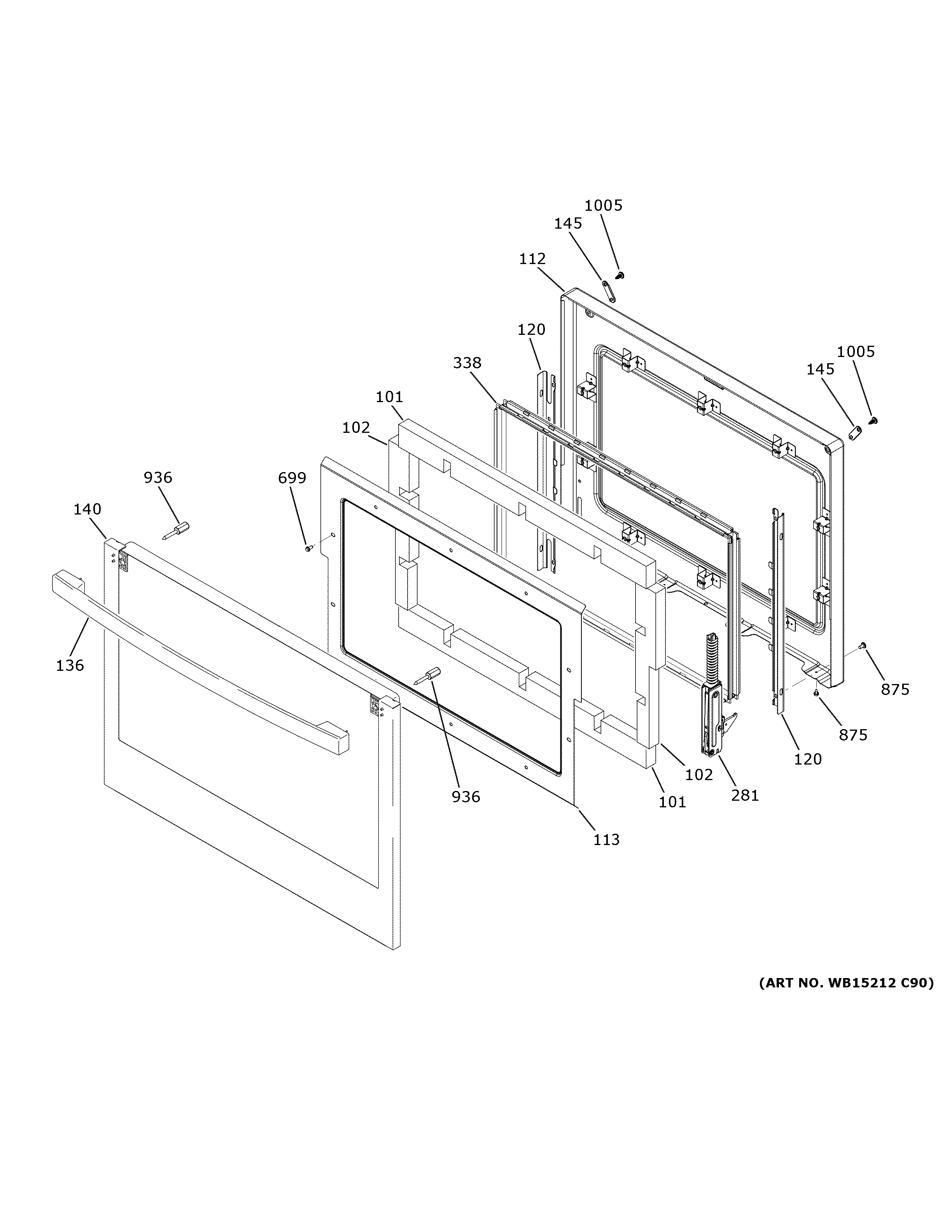

PKD7000FN2DS UPPER DOOR

Products

PositionProduct
102WB35X31513 GE Door Side Insulation
112WB63X32570 GE Oven Door Liner Assembly
113WB34X31515 GE Door Insulation Retainer
120LINER SUPPORT
136BLACK STAINLESS HANDLE AND ENDCAP
140DARK SLATE LOWER OUTER DOOR ASM
145WB02X32816 GE Oven Door Liner Plug
281WB10X30577 GE Oven Right Door Hinge
281WB10X30578 GE Oven Left Door Hinge
338WB56X27502 GE Oven Inner Door Glass
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB02X32826 GE Refrigerator Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
