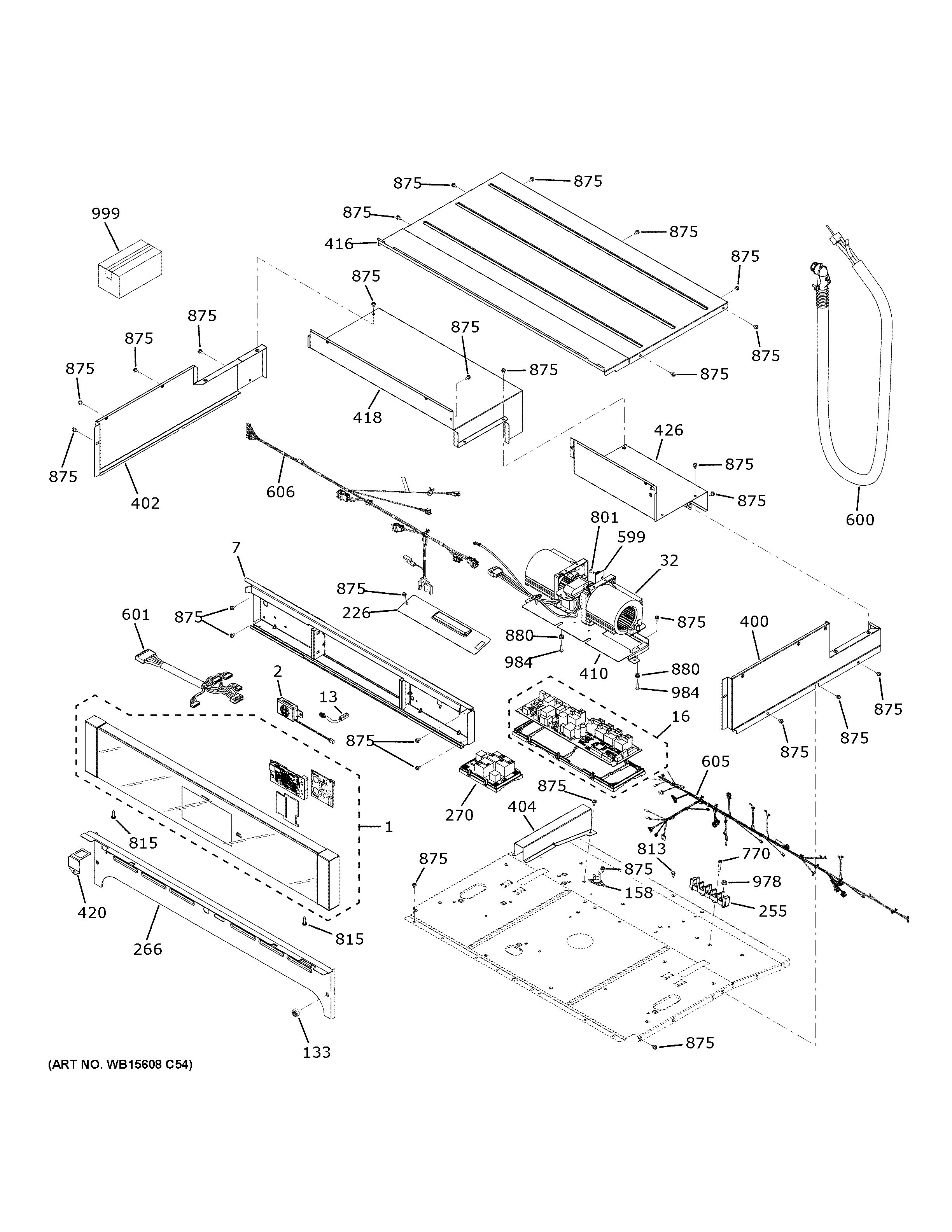

PKD7000SN2SS CONTROL PANELadmin2025-04-26T12:13:28+00:00PKD7000SN2SS CONTROL PANEL ProductsPositionProduct1WB56X40095 GE Stainless Steel Control Panel2WB27X33354 GE Speaker 70C 3W7WB07X32470 GE Control Panel Mounting BRack13WB18X30704 GE Jumper16WB27X43224 GE Control Flashed32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper158WB24X35587 GE Limit Switch255WB17K10001 GE Oven Block Terminal266WB07X33065 GE Upper Vent Trim270WB27X33083 GE Relay Board and Frame Assembly400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34T10159 GE Oven Top Front Cover418TOP REAR COVER420WB24X33028 GE RJ45 Bracket426COVER WIRE REAR599WB27T11463 GE Oven Fan Sensor Board600WB18T10574 GE Oven Wire Conduit Assembly600WB18X33486 GE Conduit Wire Assembly601WB18X32919 GE COM Wire Harness605WB49X35794 GE Double Oven Main Harness606WB18X47029 GE Latch Wire Harness606WB18X33082 GE Harness Wire Latch770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL999MANUAL U&C TIP SHEET999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS999WB02T10303 GE Cleaner Lubricant
