PKD7000SN6SS LOWER DOOR

PKD7000SN6SS LOWER DOOR

Written by

in

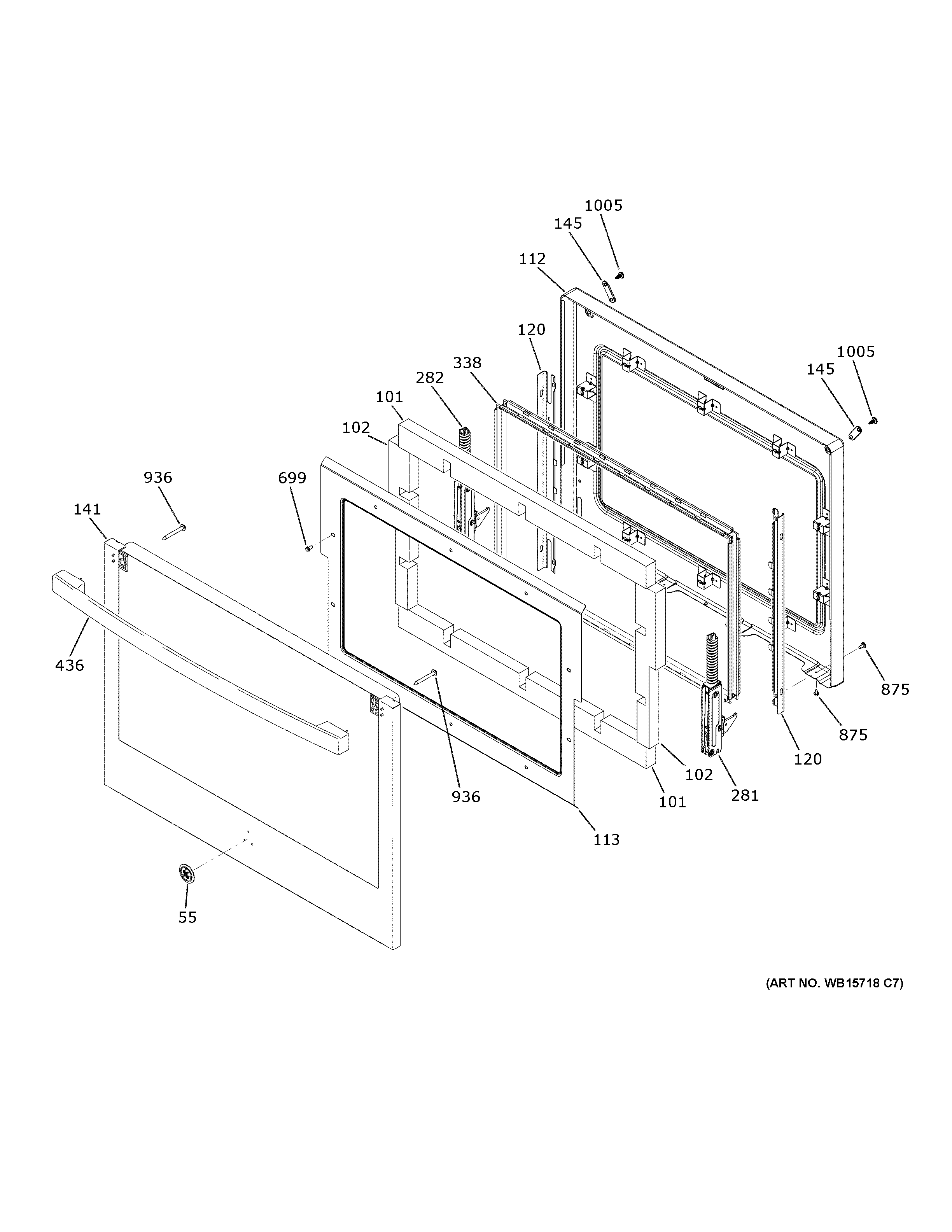

PKD7000SN6SS LOWER DOOR

Products

PositionProduct
55WB02X29479 GE Oven Badge Assembly
102WB35X31513 GE Door Side Insulation
112WB63X32570 GE Oven Door Liner Assembly
113WB34X31515 GE Door Insulation Retainer
120LINER SUPPORT
141WB56X43373 GE Outer Door Assembly – Stainless
145WB02X32816 GE Oven Door Liner Plug
281WB10X30577 GE Oven Right Door Hinge
282WB10X30578 GE Oven Left Door Hinge
338WB56X27502 GE Oven Inner Door Glass
436STAINLESS STEEL HANDLE AND ENDCAP
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
1005WB01T10008 GE Oven Screw 10-32
