PKD7000SN6SS UPPER OVEN

PKD7000SN6SS UPPER OVEN

Written by

in

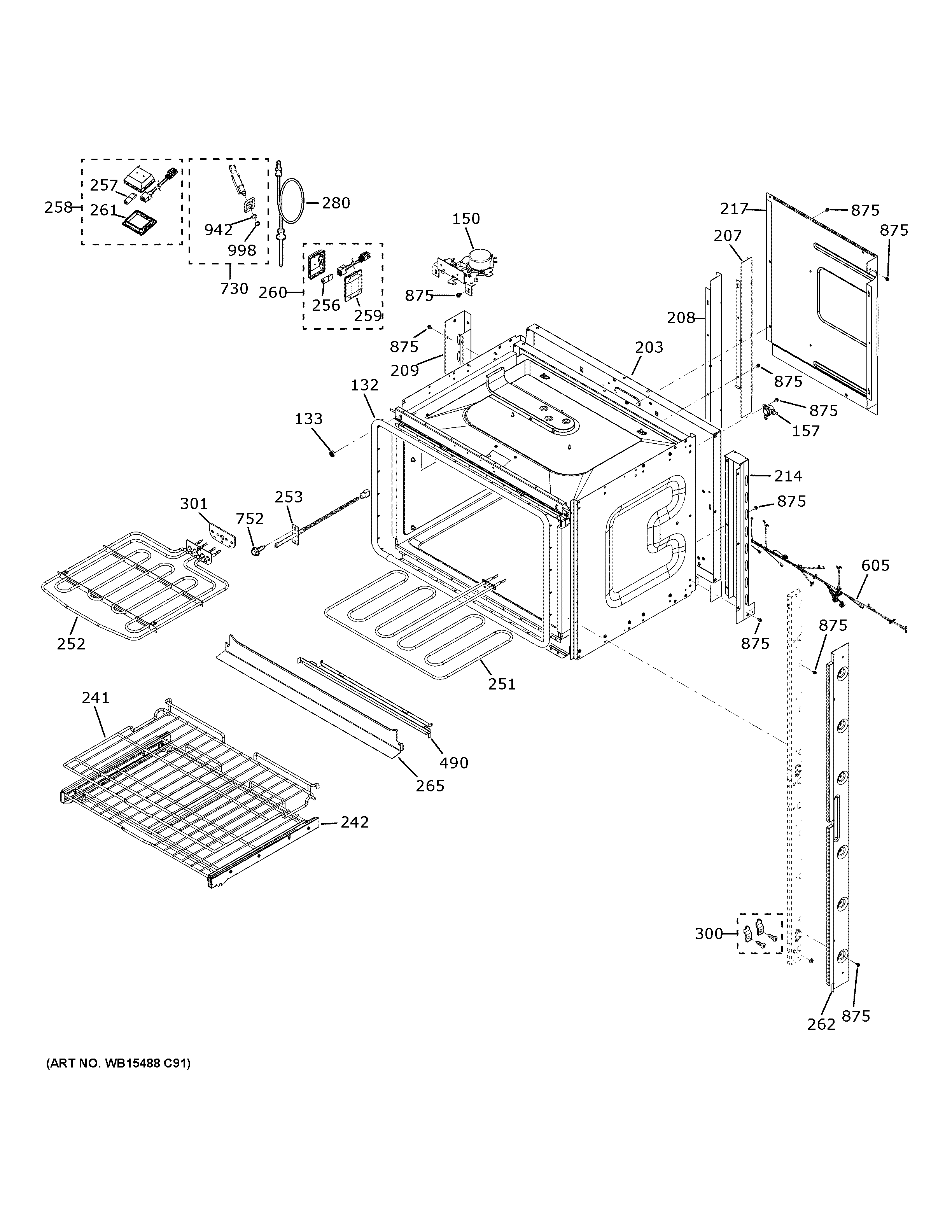

PKD7000SN6SS UPPER OVEN

Products

PositionProduct
132WB35X34867 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
207WB34T10134 GE Center Air Divider
208WB34T10140 GE Oven Double Divider Air
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
241WB48X32180 GE Oven Rack Assembly
242WB48X32941 GE Oven Rack Assembly Sliding
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
256WB25T10101 GE Oven Halogen Lamp Bulb G9
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
259OVEN LIGHT LENS
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07X34906 GE Stainless Trim Vertical Side
265WB07X21777 GE Oven Lower Trim Vent
280WB20T10024 GE Oven Thermistor Probe
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
490WB55T10195 GE Oven Hidden Bake Cover
605MAIN WIRE HARNESS
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
